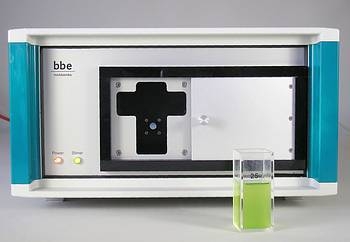

BBE Algae Lab Analyser
Algae Lab Analyser

Specifications







  • BBE Algae Lab Analyser simultaneous determination of chlorophyll concentrations, photosynthetic activity of chlorophyll and transmission
  • The detection of different algae classes via excitation using different colored LEDs
  • Calculation of biomass on green algae, blue-green algae, brown algae (diatoms and dinoflagellates), and cryptophytes.
  • Direct measurement without sample preparation.
  • Determination of chlorophyll photosynthetic activity by using different excitation patterns; the common fluorescence signals are used via the Genty parameter method
  • Yellow substances (CDOM) measurement to correct the calculation of total chlorophyll
  • Integrated stirrer unit to prevent sedimentation during long-term measurements



DESCRIPTION VALUE
Measurands
  • total chlorophyll [µg chl-a/l]
  • concentration of green algae [µg chl-a/l]
  • concentration of cyanobacteria [µg chl-a/l]
  • concentration of diatoma [µg chl-a/l]
  • concentration of cryptophytes [µg chl-a/l]
  • Gelbstoffe (yellow substances)
  • transmission (at 5 wavelengths)
  • photosynthetic activity (Genty) (optional)
Chlorophyll 0 - 200 µg chl-a/l
Measurement procedure spectral fluorometry
Resolution 0.01 µg chl-a/l
Transmission 0 - 100%
Weight 7.5 kg
Dimensions (H x W x D) 185 x 330 x 350 mm
Protection class IP54
Mains voltage 110/240V 50/60Hz / 12VDC
Power consumption 10W
Temperature Sample: 0 - 35° C / Environment: 0 - 40 °C
Sample volume 25 ml
Data Interface RS232
Software Windows bbe++ software with database
Options rechargeable battery pack, SDI-12 with bbe converter
