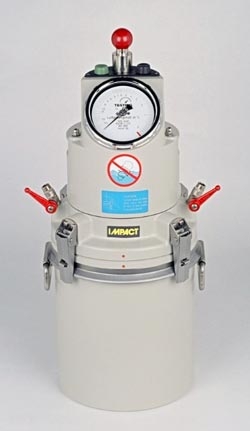

Air Entrainment Meter Type B
Air Entrainment Meter offers an instrument for use in the testing and designing of concrete mixes.
- Air entrainment meter for freshly mixed concrete, with manually operated pump.
- Direct reading in percentage
- Testing Capacity - 8litres
N/A
Filling Capacity | 5 litres |
Filling material | Fresh mortar |
Display | Pressure gauge display with readings in per cent; accuracy class = 1.0 |
Dimensions | 2200mm diameter x 490mm high |
Net weight | 10kg |
Subdivision of the pressure-gauge scale - Percent by volume (%) | Per cent by volume, per subdivision (graduation): |
0 ... 8 | 0.1 |
8 ....15 | 0.5 |
15 ... 20 | 1.0 |
20 ... 50 | 5.0 |
50 ....100 | No subdivision (no graduation) |
