Seba Field terminal SEBA-HDA
Seba Field terminal SEBA-HDA
Water , Software
  • Collection of measuring values
  • Programming and readout of data loggers
  • Visualisation of measuring data in hydrograph and list form
  • Measurement of discharge with hydrological current meter, TM AquaProfiler M-Pro and Stream Pro
  • Route planning and finding of measuring sites with offroad and street navigation

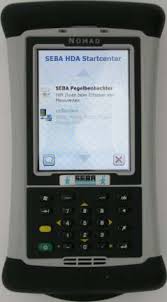

The SEBA-HDA is the multifunctional handheld for water management. It is shock-resistant, easy-tohandle, lightweight and waterproof. Therefore it is a perfect assistant to cope with numerous tasks on- site. Equipped with comfortable SEBA software tools, the HDA allows programming and setting of all data loggers within the SEBA product line (e.g. SEBA data loggers MDS-Dipper, MDS-Floater, LogCom etc.). The data visualisation and justification software MGMDSce ensures a clear illustration of time series in the form of hydrographs and lists. The software “Level Observer” allows a comfortable collection of measuring values (e.g. contact meter measurements). In addition the HDA replaces traditional counting devices for discharge measurement. The Software Qce permits both the processing of propulsion impulse (e.g. SEBA current meter F1) and the direct analysis of discharge measurements on-site. The HDA also serves as an operation terminal for the mobile ADCP measurement system SEBA Aqua Profiler™ and Stream Pro by RDI. Optionally, the HDA can be equipped with a GPS system. With the help of a user-friendly route planning software the HDA targets you to your measuring site even in an impassable territory.

Standard features:

  • Windows Mobile 6.0 (Classic edition)
  • 400 MHz - 64 MB high-speed SDRAM
  • 128 MB or 256 MB nonvolatile Flash storage
  • Color TFT display - readable under sunlight conditions
  • Touchscreen - rugged waterproof design
  • Integrated speaker and microphone
  • 15 hours of continuous room-temperature

General data:

  • Size: 16,5 x 9,5 x 4,5 cm (6,5 x 3,75 x 1,75")
  • Weight: 490 g (17 ounces)
  • Operating temperature: -30°C to 60°C
  • Protection class: IP 67

Electronics:

  • Processor: Intel PXA 255 XScale CPU, 400 MHz ( Recon 400X)
  • Display: 240x320 pixel (QVGA) color TFT, LED-light
  • Batteries: 3800 mAh NiMH rechargeable pack

Accessories:

  • GPS module with street and/or offroad navigation software
  • Barcode laser scanner incl. software "Level Observer"
  • Bluetooth module for mobile ADCP type "StreamPro"
  • Impuls converter incl. "Software Qce" for propulsion measurement
  • Carrying bag with belt clip and shoulder strap
  • Memory cards with extended temperature zone
  • 12V car charging adaptor
