Closed FluorCam FC 800-C is a popular, best-selling system for imaging of chlorophyll fluorescence kinetics which can be extended to a multispectral version allowing detection of various fluorescent signals.

  • The standard version consists of a CCD camera and four fixed LED panels
  • Represents a highly innovative, world-wide used system of multispectral kinetic fluorescence imaging.
  • PSI Closed FC 800-C consists of a CCD camera and four fixed LED panels.
  • The LED panels provide uniform irradiance over samples up to 13 x 13 cm – suitable for small plants, detached leaves, algal dilutions, etc.
  • The system allows for dark adaptation.

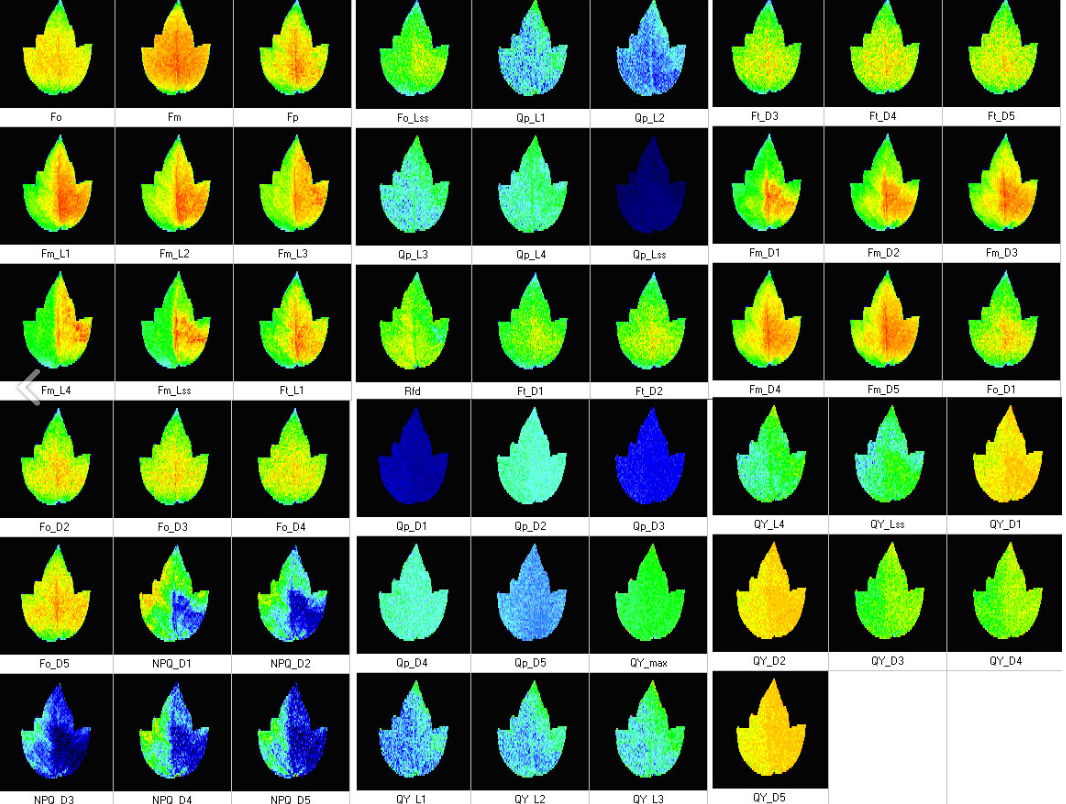

Fluorescence Parameters: - Measured parameters: FO, FM, FV, FO', FM', FV', FT
  - More than 50 calculated parameters: FV/FM, FV'/FM', PhiPSII, NPQ, qN, qP, Rfd, PAR-absorptivity coefficient, and many others
CCD Detector Wavelength Range 400 – 1000 nm
Outer Dimension: 472 mm (W) x 479 mm (D) x 513 mm (H)
Weight: Appr. 40 kg
Power Input: Appr. 1100 W
Electrical: 90 – 240 V
Interface Connector: Gigabit Ethernet
Filter Wheel 7 positions
