Open FluorCam FC 800-O/1010 and FC 800-O/2020

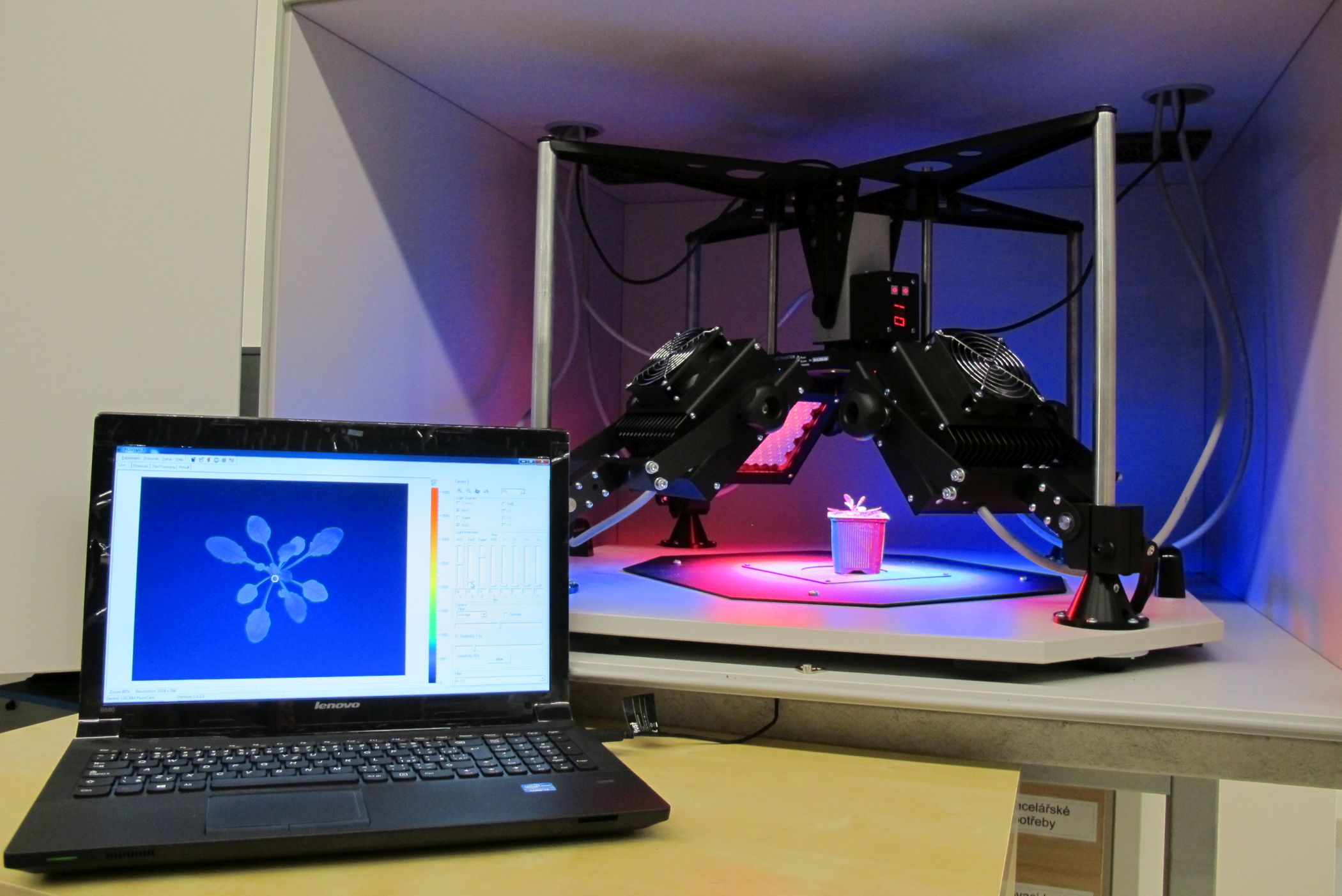

- PSI Open FluorCam FC 800-O a highly modular instrument with flexible geometry.

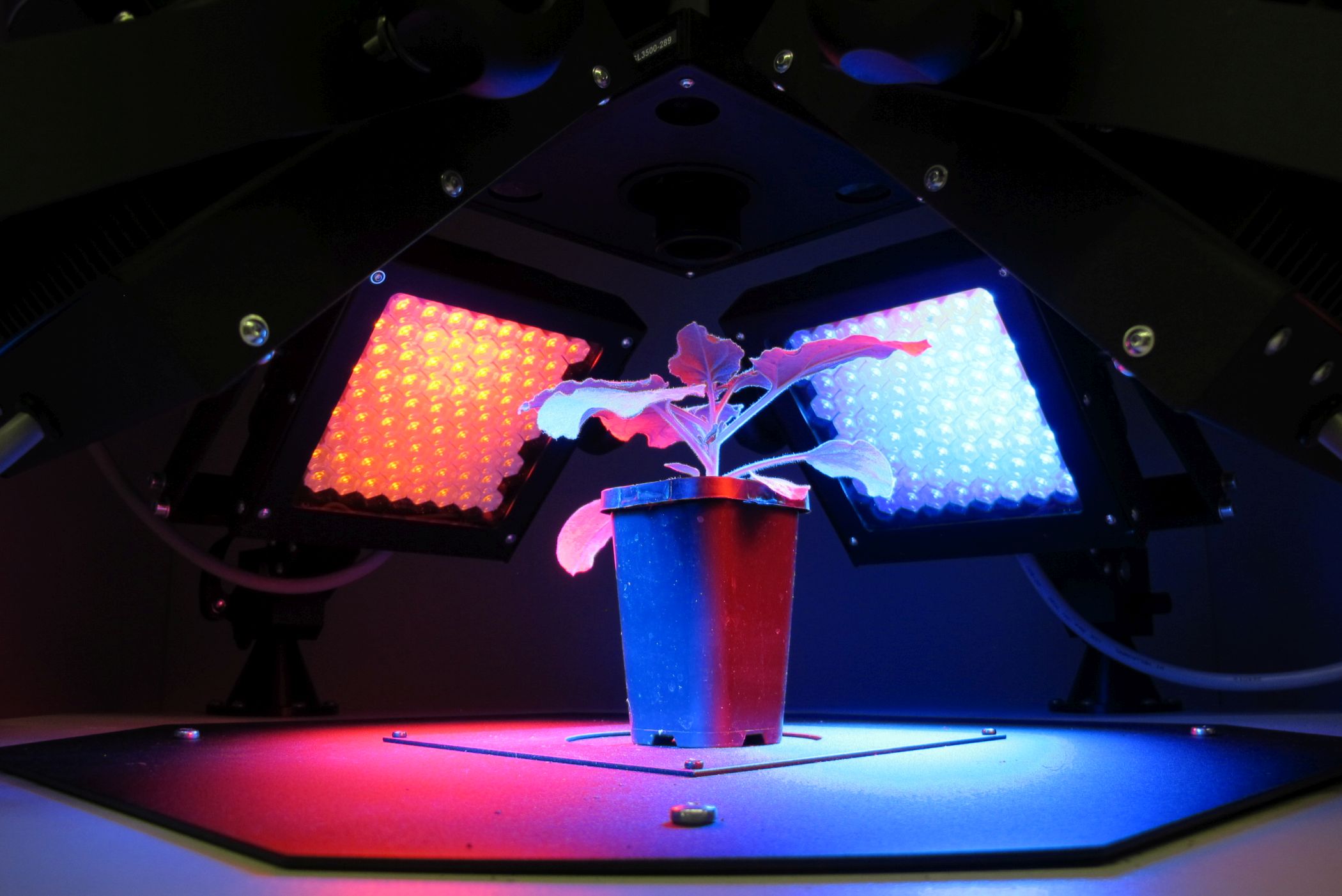

- The LED panels and the light source generating saturating flashes can be arranged at various angles and distances from the sample.
- Also, the position of the camera relative to the sample is adjustable.
- Open FluorCam FC 800-O represents a highly innovative, robust and user-friendly world-wide used system for combined multispectral and kinetic fluorescence imaging.
- Consists of a CCD camera, four to five fixed LED panels (4 + 1 additional, which is not included in the standard setup) and, optionally, of a filter wheel equipped with up to 7 different emission filters.

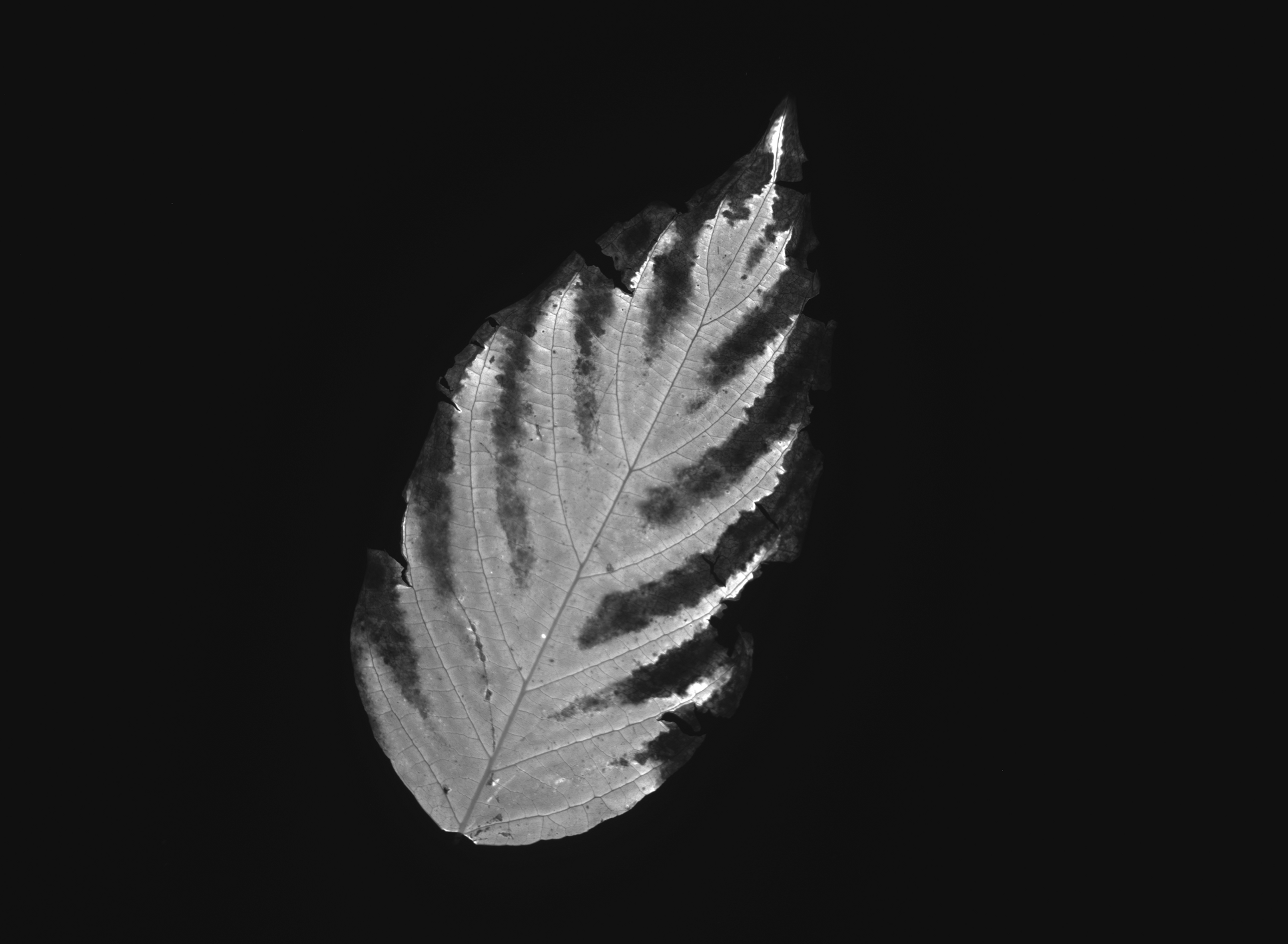

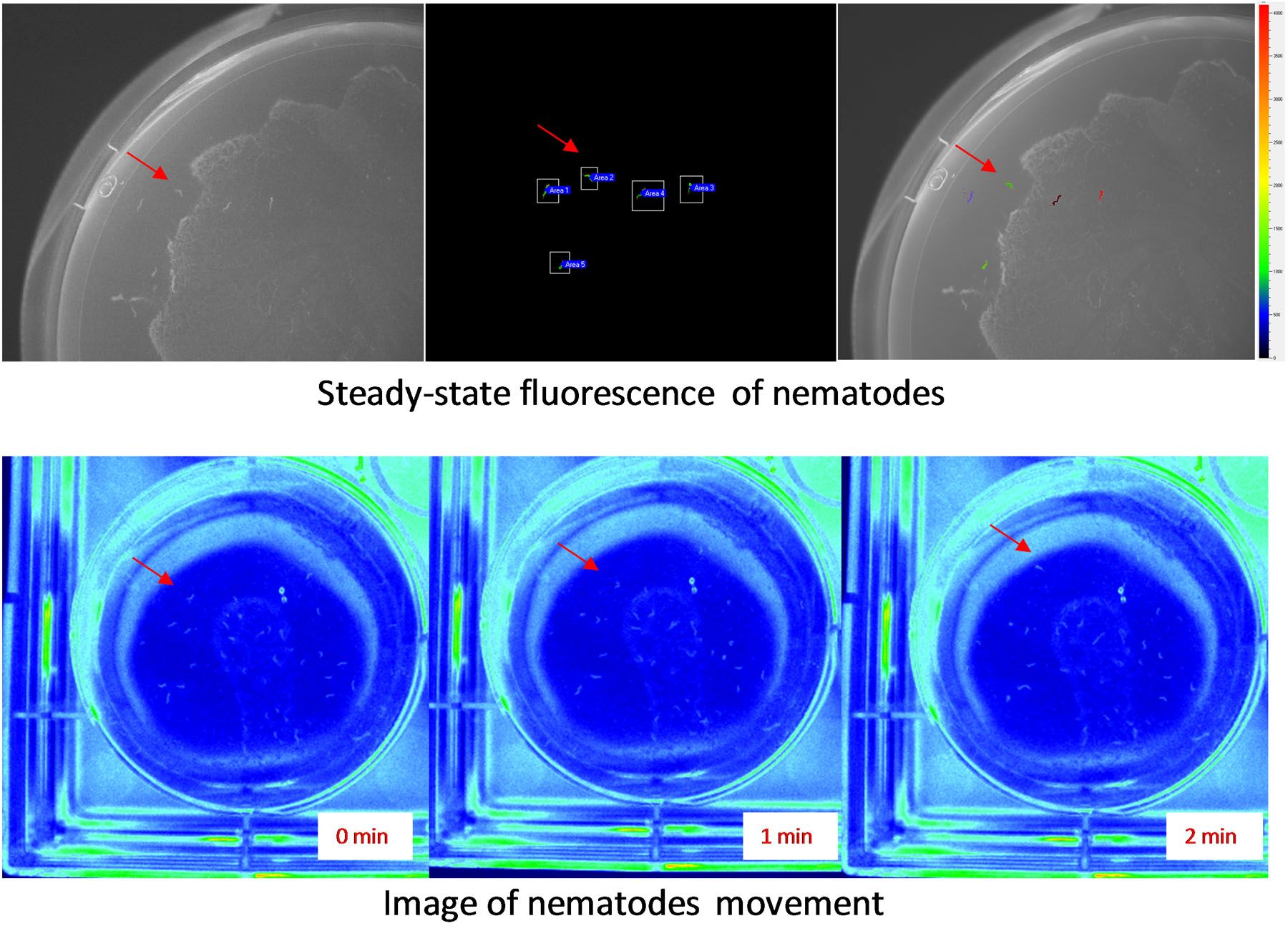

- Generates images of fluorescence signal at any moment of the experiment and presents them using a false color scale.
- Full kinetic analysis is available.

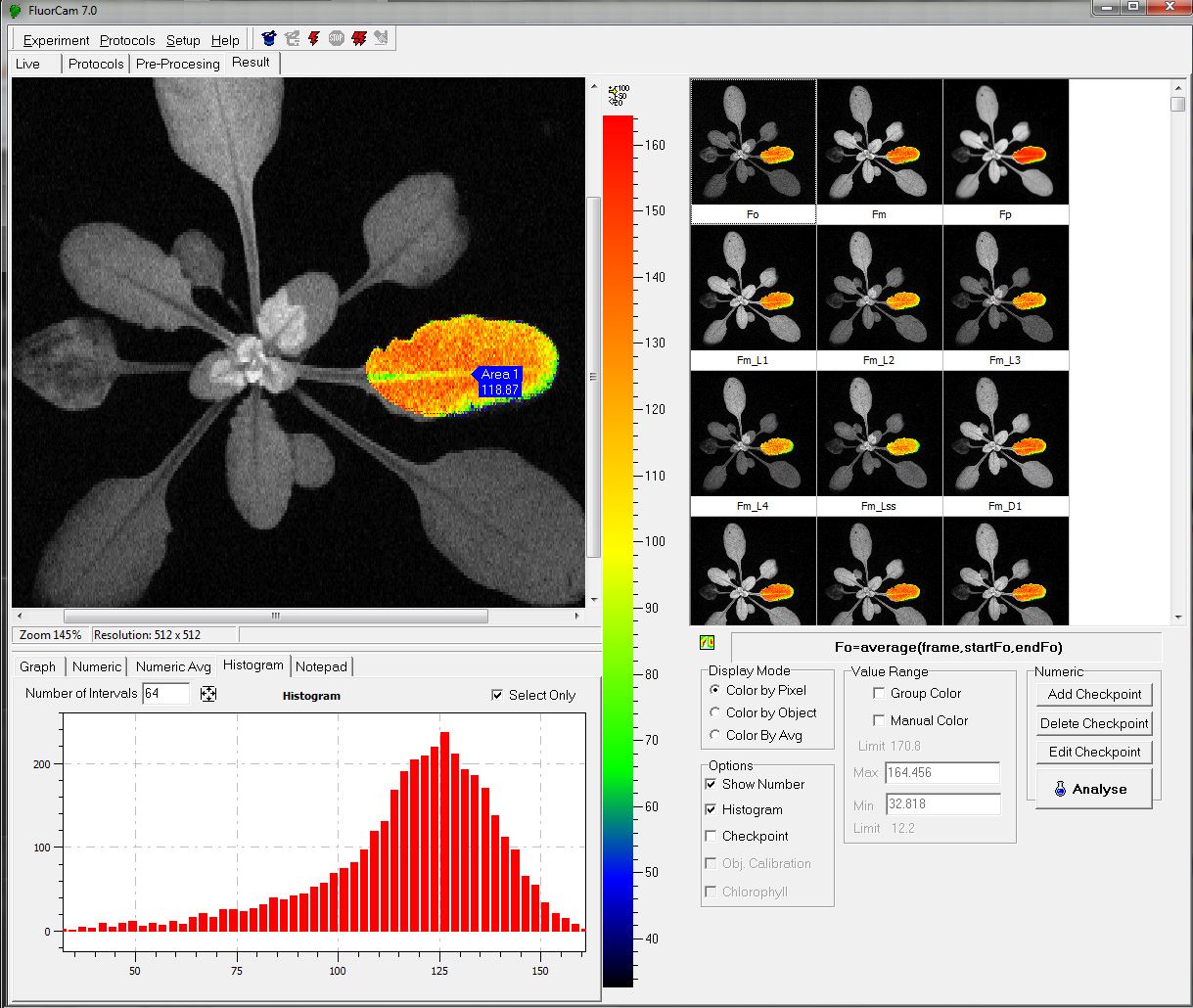

- High-performance PC and comprehensive software package comprising full system control, data acquisition and image processing.
