Q-teach Plant CO2 Package

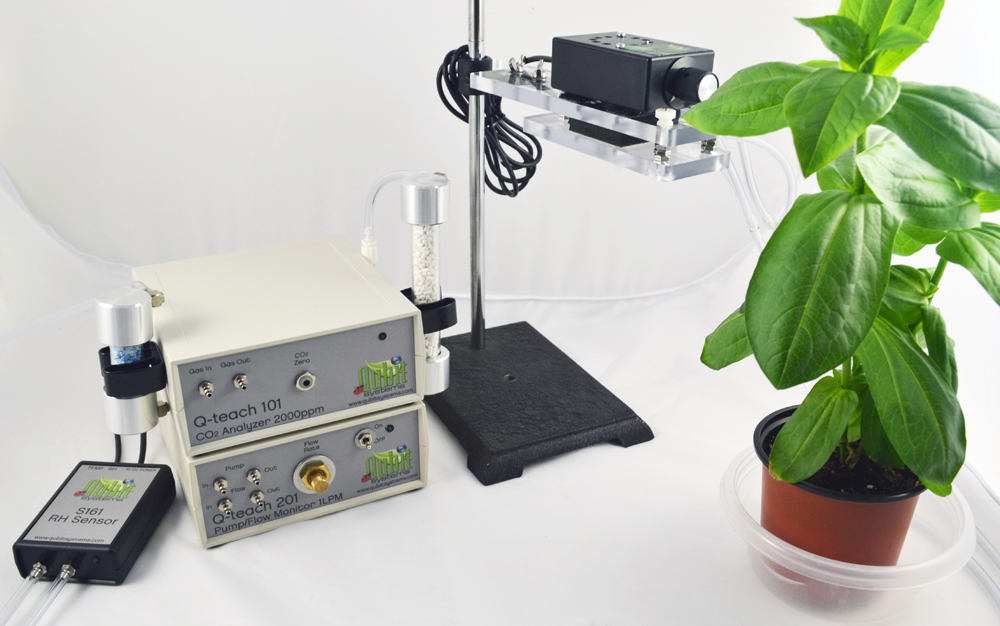

The Q-teach Plant CO2 Package is designed for teaching the principles of photosynthesis, respiration and transpiration in leaves placed in a flow through chamber. The package includes everything required by the instructors: NDIR CO2 analyzer, gas pump/flow monitor, RH/Temperature sensor, leaf chamber, LED light source calibrated in software for PAR output, 6 gas bags, accessories, data interface, software and experimental files with all experiments and calculations outlined. Operational and laboratory experiments manuals are also included.
Sample Experiments

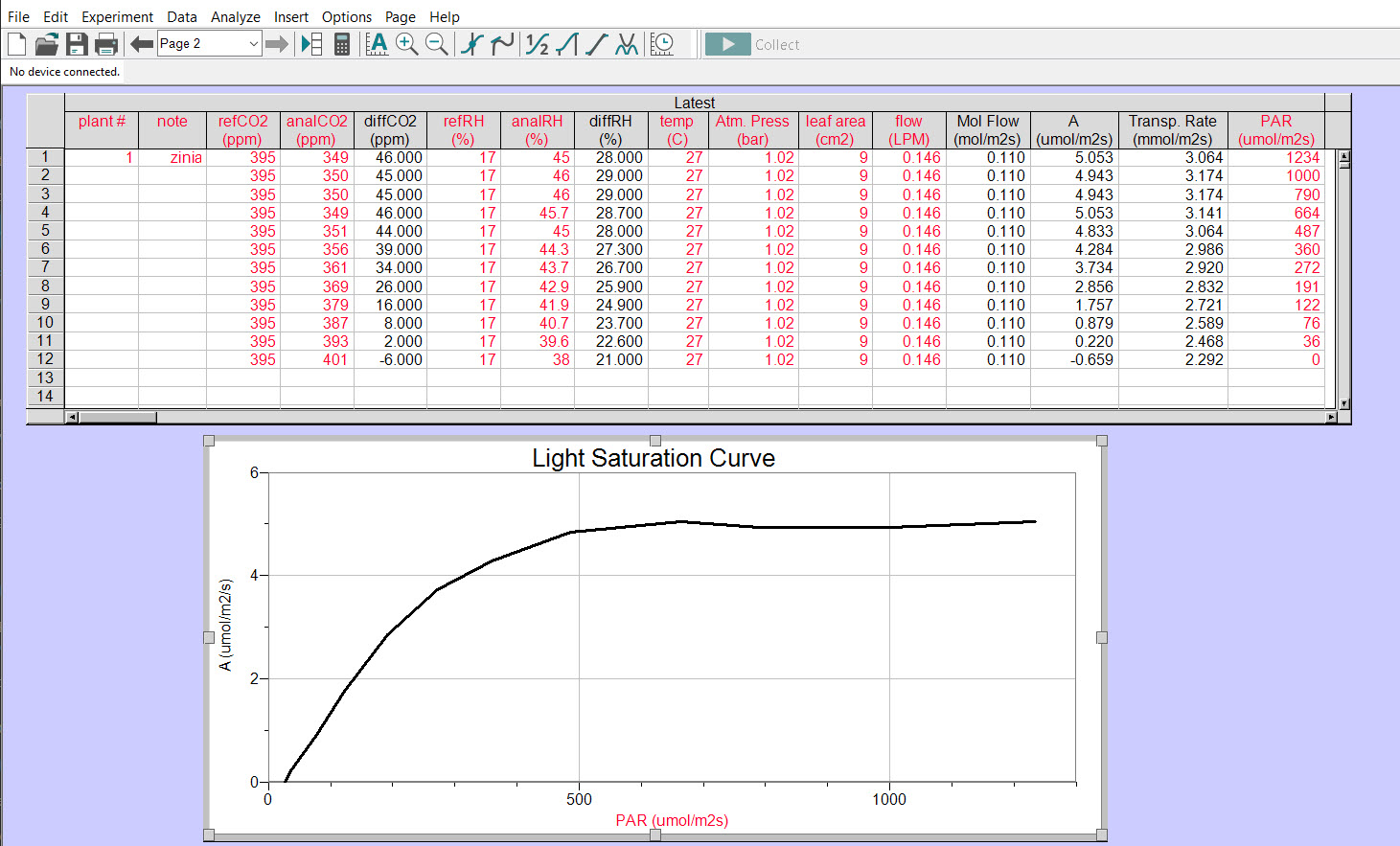

- Measurements and characterization of photosynthesis at different light intensities
- Measurements of CO2 dependence of photosynthesis
- Further experiments based on the above (sun versus shade plants; C3 versus C4 plants etc.)
Components

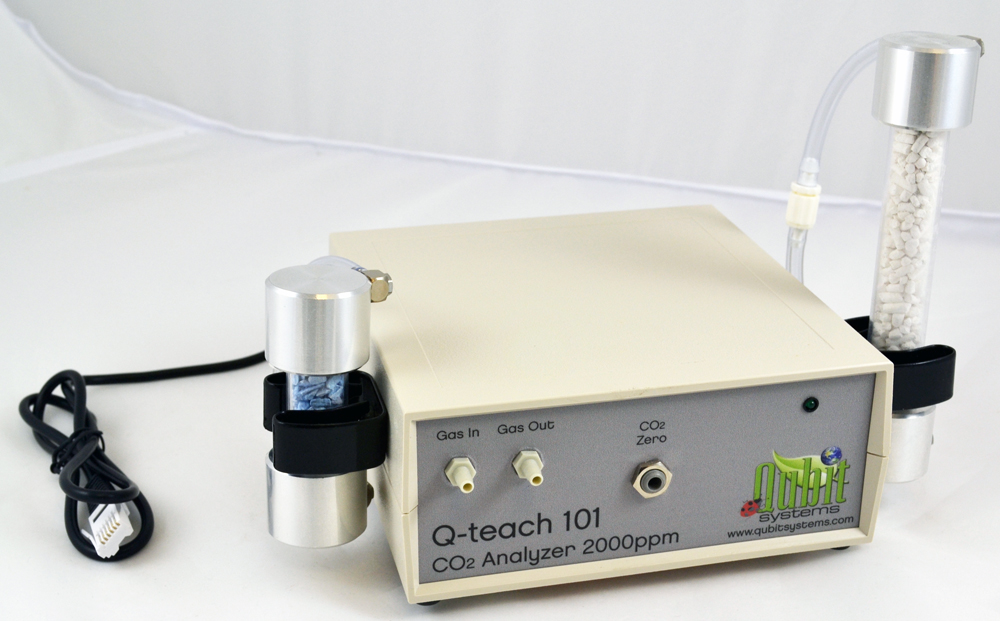

- Q-teach 101 CO2 Analyzer 2000ppm with soda lime and drying columns

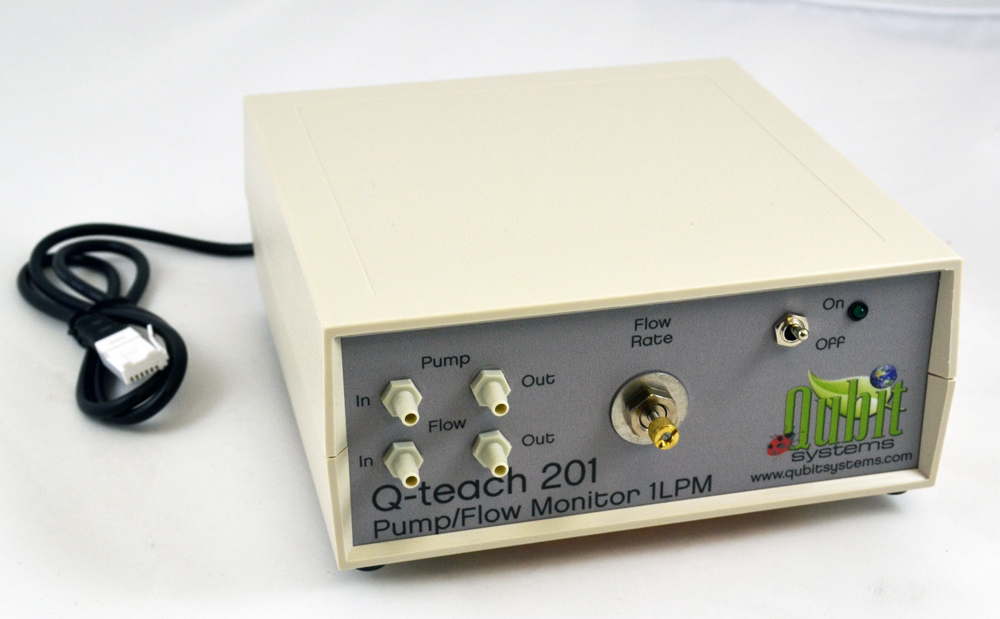

- Q-teach 201 Pump/Flow Monitor 1LPM
- S161 RH/Temp Sensor
- Q-A101 Lab Stand
- G112-t Flow Through Leaf Chamber
- A113 LED light calibrated in software
- G122 Gas bags 6 x30L
- G212 Water trap for ice condensing bath
- C610 LabQuest Mini data interface (2)
- C901 Logger Pro Software
- C404 disk with experimental files and manuals (operational and laboratory)
- Q-teach Accessories (tubing, filters, connectors, screwdriver, 2 x 3-way valves, wrench)
