CDL Dataloggers

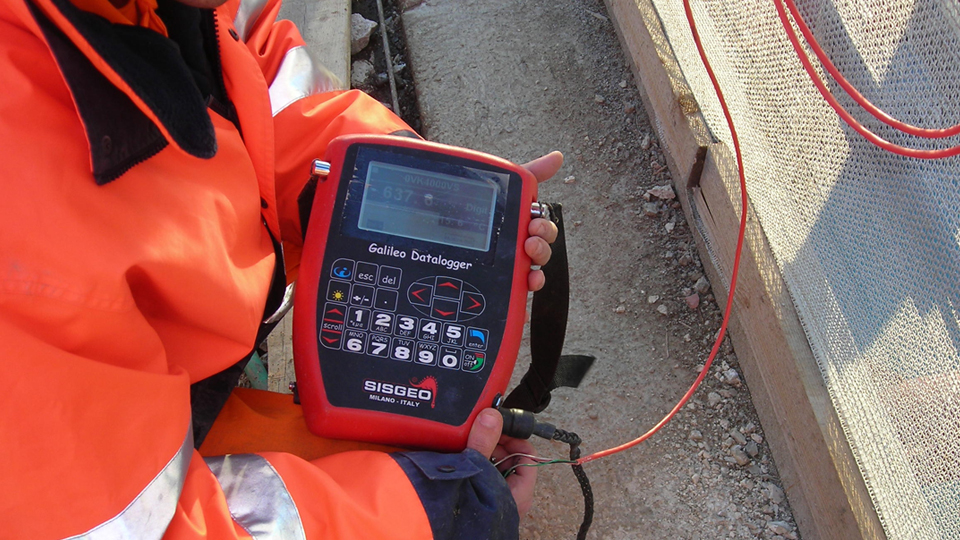

CDL is a family line of durable, water resistant easy-to-use portable readout which includes Galileo and New Leonardo dataloggers. They are equipped with an high performance microprocessor, Ni-MH batteries and color graphic display. New Leonardo datalogger is compatible with all types of Sisgeo’s sensors.Galileo is designed for use with vibrating wire instruments. Multiple-readings through multiplexer box and switch measuring boxes are supported.
- Compatible with all sensors
- Large coloured display
- Accurate and precise measurements
- Splash-proof hand-held case
- Bluetooth module for smartphone connection
- Lightweight and portable
- Reads both electrical and engineering units
- Auto shutdown
- Live up-date for firmware and software
- Sunlight reliable display
| Model | DATALOGGER NEW LEONARDO (Product code 0CDL400N0000) | DATALOGGER GALILEO (Product codE 0CDL100VW00) |
| Channels | 2 | 2 |
| A/D converter | 2x24 bit with autocalibration (19 true bit) | 2x24 bit with autocalibration (19 true bit) |
| Digital display | TFT graphic backlight LCD 320 x 240 pixel, 5.7”, sunlight reliable | TFT graphic backlight LCD 320 x 240 pixel, 5.7”, sunlight reliable |
| Type of measure | mA, mV, V, mV/V, Hz, μsec, digit, με, °C (PT100 and thermistors) | Hz, μsec, digit, με, °C (thermistors) |
| Measuring range | 4-20 mA, ±10 mV, ±400 mV, ±5 V, 1000 Ohm (PT-100) 10000 Ohm (thermistors), from 400 to 6000 Hz | 10000 Ohm (thermistors) from 400 to 6000 Hz |
| Measurement resolution |
1 μA at FS 20 mA - 1 μV at FS ±10 mV 10 μV at FS ±400 mV - 100 μV at FS ±5 V 0.001 mV/V at FS 10 mV/V - 0.1°C at FS 1000 Ohm 0.1°C at FS 10000 Ohm - 0.1 Hz at FS 400-6000 Hz |
0.1 Hz at FS 400-6000 Hz 0.1°C at FS 10000 Ohm |
| Measurement accuracy | 0.01% FS (0.1% FS for PT100 and NTC) | 0.01% FS (0.1% FS for NTC) |
| Thermal drift | 0.001% FS / °C | 0.001% FS / °C |
| Internal battery | 12 V DC, 4500 mAh Ni-MH, with protections | 12 V DC, 4500 mAh Ni-MH, with protections |
| Operating time | 8 hours (always power-on) | 8 hours (always power-on) |
| Battery charger | fast charge (2.5h), 100-240 V AC, 50-60 Hz, 35W | fast charge (2.5h), 100-240 V AC, 50-60 Hz, 35W |
| Sensor supply | Fully automated power supply selection | Fully automated power supply selection 100 |
| Input impedance |
> 10 MW for voltage <2.5V > 1 MW for voltage >2.5V |
- |
| Maximum sensor output current | 190 mA | 100 mA |
| Temperature range | -20°C a +60°C | 20°C a +60°C |
| Storage memory | 2 GB* | 2 GB* |
| COMM port | USB 2.0, Bluetooth optional (0CDL0BTOOTH) | USB 2.0, Bluetooth optional (0CDL0BTOOTH) |
| Enclosure | ABS, IP67 protection | ABS, IP67 protection |
| Dimensions and weight | 200 x 280 x 76 mm, 2 kg | 200 x 280 x 76 mm, 2 kg |
