MeteoTemp has been proven to provide one of the lowest measurement uncertainties in the market. Get the quality back into your temperature, humidity, dew point & frost point data with MeteoTemp. Eliminate self-heating effects from meteorological measurements, which with today's sensors can reach over +0.2 °C

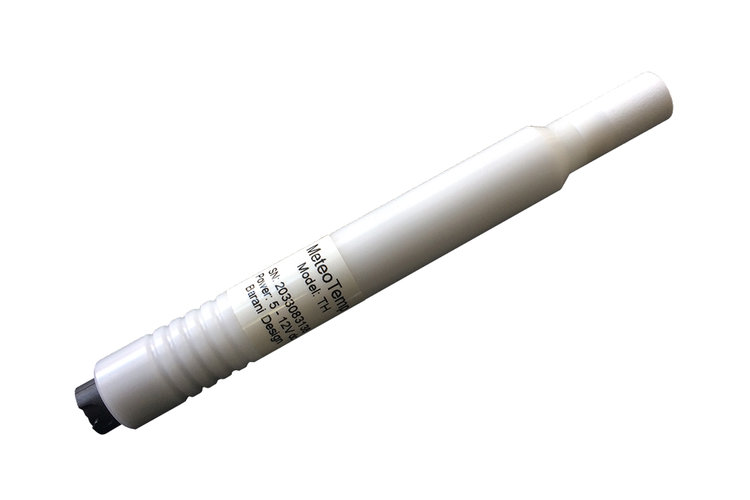

Ultra-low power temperature, humidity, dew point and frost point probe for meteorological air temperature measurement. Its combined power consumption of 800 µA, is often 5x less than other meteorological temperature and humidity probes.
2-in-1 meteorological sensor probe with waterproof connector. Temperature, Humidity, Dew point and Frost point output. Ultra-low 800 micro Amp power consumption eliminates self heating in Meteorological applications. Meets WMO requirements for accurate air temperature, humidity and long term stability. Also features triple lightning protection and Surge, Transient & ESD protection.
- Take the uncertainty out of your WMO temperature & humidity data
- Replaceable PTFE filter cap
- Extend your battery life
- Protects against lightning strike
- Keep your sensors clean
- Data traceability made easy
| Output signal & communication | RS-485 with Modbus RTU or ASCII |
| Supply Voltage | 5...15 VDC with reverse polarity protection (startup in-rush <100mA for 1ms) |
| Power consumption | 800 µA at 1Hz output including RS485 communication |
| Lightning & surge protection | per IEC EN 61000-4-2, EN 61000-4-4, EN 61000-4-5 on both data & power lines, Surge, EFT/ Burst, ESD 15 kV |
| Operating temperature & humidity | -40°C to +105°C, 0% to 100%RH |
| Connection | Bayonet connector with silicone o-ring |
| IP – Protection rating | IP66W (DIN 40050) |
| Dimensions | Length = 133 mm (164 mm with mating connector), Ø17 mm base, Ø12 mm PTFE sensor cap |
| Weight (mass) | aprox. 20 g (without mating connector and cable) |
