With these sets, with conical screw-thread connection, undisturbed soil samples can be taken in a thin-walled tube applying a stainless steel core sampler with sample tubes and cutting head. In soft soils the sampler is pressed into the soil, possibly using the push-/pull handle. In hard soils, the sampler tube can be driven into the soil using the hammer with two nylon heads (shock-absorbing) or the down-the-hole hammer.

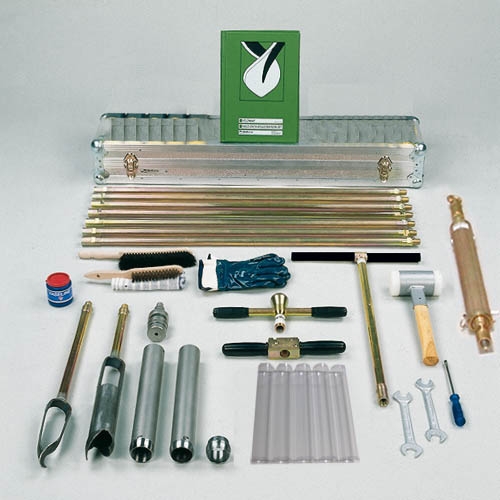

The set contains, among other things: a hand auger for pre- and clean drilling of the borehole, the core sampler with sampler tubes and handle with beating head, thin-walled sample tubes, impact-absorbing hammer, down-the-hole hammer and maintenance equipment.
Availability
The set is packed in an aluminium transport case. In case of an undisturbed sample, it is often difficult to remove the sample from the sampler tube. By using sample liners it is easy to remove the sample from the tube. The thin-walled tube with the sample is sealed for transport to the laboratory.
- In soft soils the sampler is pressed into the soil, possibly using the push-/pull handle.
Undisturbed soil samples can be taken in a liner applying a stainless steel core sampler with sample tubes and cutting head. - In hard soils, the sampler tube can be driven into the soil using the hammer with two nylon heads (shock-absorbing) or the down-the-hole hammer.
- The sets, which packed in an aluminium transport case, contain a hand auger for pre- and clean drilling of the borehole, the core sampler with the sampler tubes and soil sample containers and maintenance equipment.
- Eijkelkamp 04.15.SA Liner Sampler Set is easy to remove the sample from the tube.
- The sample, still in the liner, is stored in a container which can be sealed, for transport to the laboratory.
Benefits Liner sampler set
- The liner allows easy removal of the sample
- View the sample directly in the field
- View the sample without touching
- Set B more applicable for harder soils
- Stainless steel sampler body
| Connection | screwthread |
| Maximum root thickness | 10 mm |
| Maximum sample depth | 7 m |
| Product material | stainless steel, iron, other material |
| Sample diameter | 50 mm |
| Sample length | 300 mm |
| Sample specification | undisturbed |
| Sample stored in | tube |
| Sample volume | 590 ml |
| Package size | 130 x 50 x 72 cm |
| Weight | 38 kg |
| Applications | Soil sampling above the groundwater table, Soil sampling below the groundwater table |
