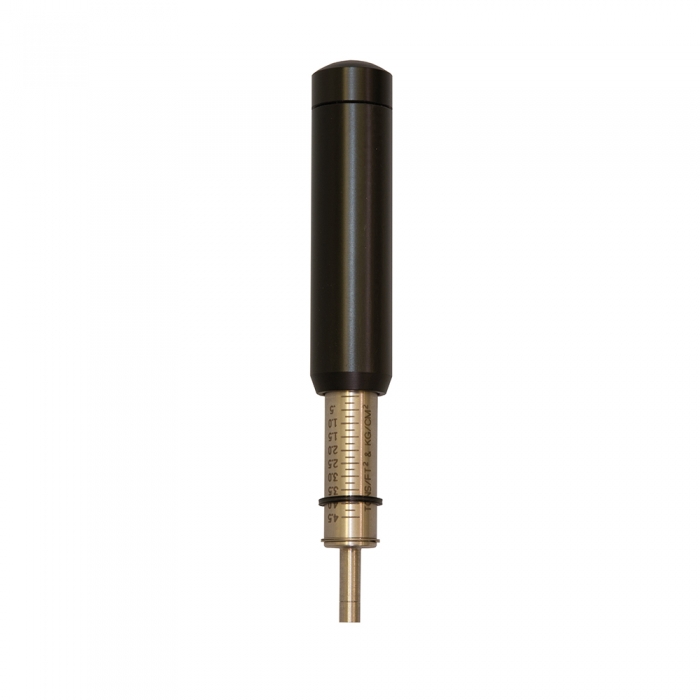

06.03 Pocket Penetrometer
06.03 Pocket Penetrometer

The "pocket penetrometer" is specifically used to determine the penetration resistance of top layers (measuring depth 5 mm) and of samples in the field or in the laboratory.

Benefits Pocket penetrometer

  • Flat cone allows for shallow measurements

  • Allows indicative measurements on samples



  • Eijkelkamp 06.03 Pocket Penetrometer used to determine the penetration resistance of top layers (measuring depth 5 mm) and of samples in the field or in the laboratory.
  • Measuring range 0.5 MPa.
  • When pushing the instrument into the ground, the pin encounters a force of the ground.
  • The spring is compressed by this force.
  • A slip ring is taken along during this operation, which shows on the scale the maximum force that has been encountered.
  • The scale has been calibrated in such a way that the penetration resistance that has been encountered can be read on it immediately.



Angle of cone 0 °
Cone surface range 0.3165 cm²
Maximum force 500 @ 0.3165 cm² kPa
Maximum measuring depth 1 cm
Measured parameters penetration resistance
Measuring range 0...500 kPa
Product material Stainless steel, iron, PVC, other material
Reading accuracy 3%
Registration type manual
Package size 18 x 4 x 3 cm
Weight 0.32 kg
Applications Soil profile description and classification
