13.50 Visibility Disc According To Secchi
13.50 Visibility Disc According To Secchi
Soil , Sediment Sampling

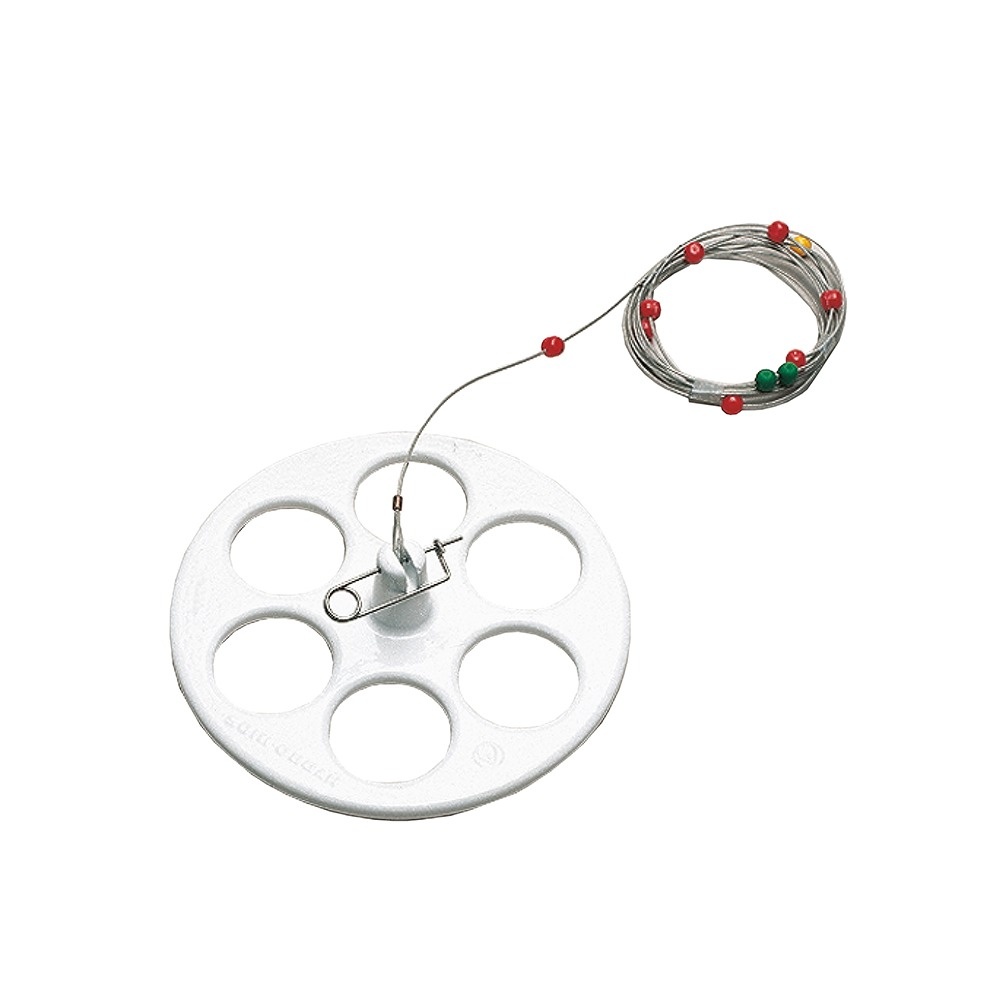

The visibility disc according to Secchi is simple, although not very accurate, means of determining the visibility depth. The visibility disc is lowered into the water with a wire. When the disc is no longer visible in the water, a reading of the depth is made by means of the marks on the rope. The disc is lowered another 0.5 meters and is pulled up slowly. The second reading is done when the disc becomes visible. By taking the arithmetic mean from both readings the visibility depth is determined.



  • Eijkelkamp 13.50 Visibility Disc According To Secchi is simple, although not very accurate, means of determining the visibility depth.
  • The visibility disc is lowered into the water with a wire. When the disc is no longer visible in the water, a reading of the depth is made by means of the marks on the rope.
  • The disc is lowered another 0.5 meters and is pulled up slowly. The second reading is done when the disc becomes visible. By taking the arithmetic mean from both readings the visibility depth is determined.
Maximum measuring depth 3 m
Reading accuracy 1 dm
Package size 110 x 10 x 10 cm
Weight 2.7 kg
Applications Geohydrological research
