Soil Water Samplers
Soil Water Sampler, designed for near-surface installation, 6 inches (15 cm) to 6 feet (1.8 m) depth (depending on the length of Sampler), 1.9" (4.8 cm) outside diameter PVC tube, porous ceramic cup with a 2 bar (200 kPa) air-entry value (bubble point), Santoprene stopper, Neoprene access port. Clamping rings slip over the folded Neoprene tubing to seal the sampler. Extraction kit required, vacuum pump required.
- Pore Water Sampling
- Environmental Monitoring
- Mining
- Soil Moisture Soil Water Samplers a large-volume sampler designed for near-surface installation at depths ranging from 6 inches (15 cm) to 6 feet (1.8 m).

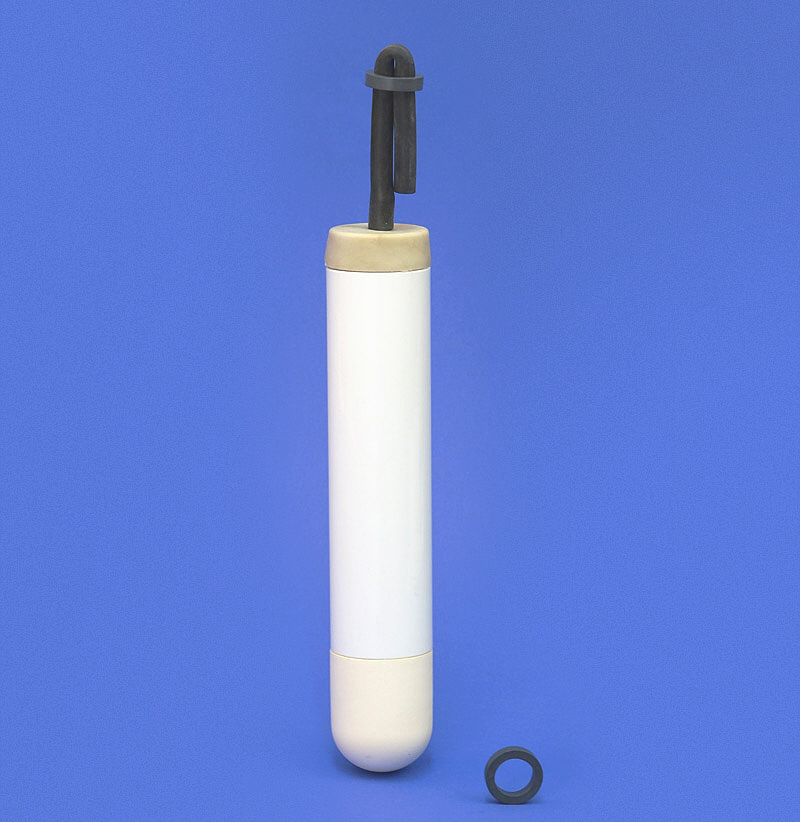

- The unit consists of a 1.9" (4.8 cm) outside diameter PVC tube, a porous ceramic cup with a 2 bar (200 kPa) air-entry value, and a Santoprene stopper.
- Neoprene tubing is used as an access port for sample extraction and evacuation.
- Clamping rings slip over the folded Neoprene tubing to seal the sampler after evacuation.
- An extraction kit is required for sample retrieval and a vacuum pump is required to evacuate the sampler.
Sampler length: 6",
Outer diameter: 1.9"
Weight: 0.45 lb.
Dimensions: 6X5X5 inches
