Spiral Auger
Spiral Auger

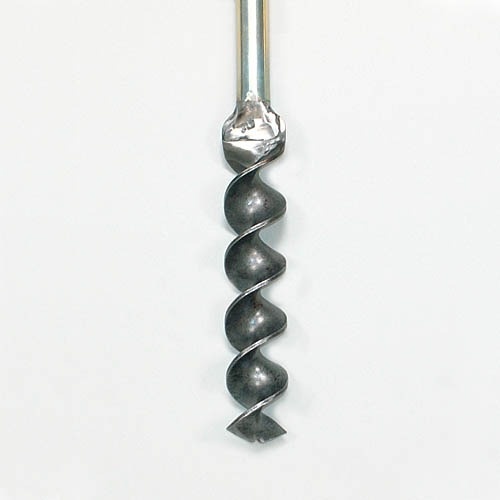

The spiral auger operates similar to a corkscrew and does not cut off the soil. The auger is usually applied when hard layers need to be penetrated. The spiral auger has a negative end, i.e. the centre of the auger end is whetted away. For profile research (soil mapping) the spiral auger is seldom used. Its use is confined to augering through very hard layers, e.g. before, bricklayers, chalk and lime profiles in combination with other auger types. The single spiral auger is standard equipped with a contact for electrodes.

Availability

This auger is available in several diameters, and/or various connections.

Connections

Divisible spiral auger. To penetrate hard layers at greater depths, available with standard bayonet or conical screw thread connection

  • Operates similar to a corkscrew and does not cut off the soil.
  • Eijkelkamp Spiral Auger to penetrate hard layers e.g. before, bricklayers, chalk and lime profiles in combination with other auger types at greater depths.
  • Has a negative end, i.e. the centre of the auger end is whetted away.
  • The single spiral auger is standard equipped with a contact for electrodes.
  • Available in several diameters, and/or various connections.
  • Standard bayonet connection or a conical screw thread connection.

Benefits Hand auger equipment

  • High tensile strength forged auger bodies
  • Perfect auger body shapes for optimal drilling
  • Non-toxic steel for all types of analyses
  • Rapid connectible extension rods

Remarks

  • Leave augers to air-dry after use
  • Decontaminate with soap
  • One man operated until 10 m depth
