The TEROS 10 soil water content sensor is a rugged version of common basic, no frills soil moisture sensor. Its 70-MHz frequency minimizes salinity and textural effects, making it accurate in most soil or soiless media. With a tough expoxy body, the TEROS 10 is designed to withstand some of the harshest field condition, which means problem-free measurements over the longevity of your research.

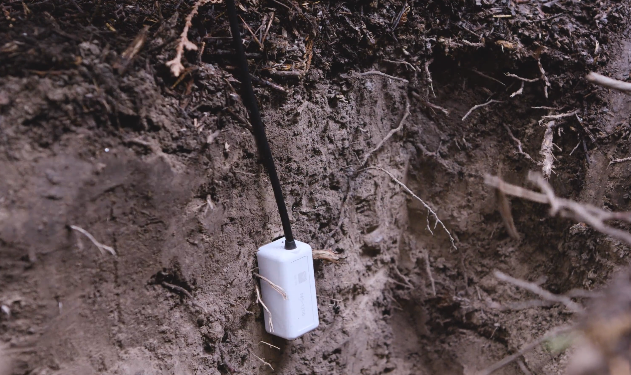

The TEROS 10 lets you configure to measure at multiple depths and locations. It's one of our toughest soil moisture sensors, its body withstand difficult environment for up to 10 years. Ideal for large sensing networks, it is sensitive to small VWC changes across the enture range of soil and substrate water content and can be installed in anything from dry dessert soils to very wet peat. An easing Borehole Installation Tool is available as optional for precise installation
(free from air pockets) without compromise the measurment accuracy.
Not only that, TEROS 10 has very low power consumption and a high resolution.
- Low-cost, ruggedized soil moisture sensor
- Ideal for large sensor networks
- Sharpened stainless steel needles for securely fastened and reduce breakage

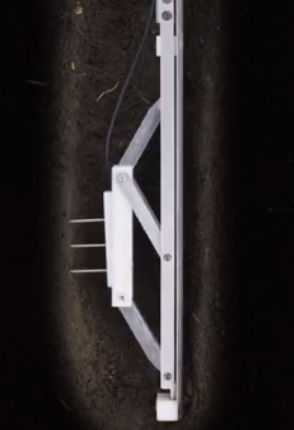

- Compatible with TEROS Borehole Installation Tool ensuring fast, error-free installation.
- 3 years warranty
- Teros 10 is already calibrated for most soil types
- Measure VWC in harsh environments
- Repeatability can be checked with an accuracy verification standard
- Ferrite core eliminates cable noise
- Easy integration with 3rd party systems
| Volumetric Water Content (VWC) |
Range Mineral Soil Calibration: 0.0000 - 0.6400m3/ m3 Soiless Media Calibration: 0.0000 - 0.7000m3/ m3 Apparent Dielectric Permittivity (εa): 1 (air) to 80 (water) NOTE: The VWC range is dependent on the media the sensor is calibrated to. A custom calibration will accomodate the neccessary ranges for most substrates. Resolution: 0.0010m3/ m3 Accuracy Mineral Soil Calibration: ±0.03m3/ m3 typical in mineral soils that have solution EC <8 dS/m Soiless Media Calibration: ±0.05m3/ m3 typical in media that has a solution EC <8 dS/m Medium Specific Calibration: ±0.01 - 0.02m3/ m3 in any porous medium Apparent Dielectric Permittivity (εa): 1 - 40 (soil range), ± 1εa (unitless) 40 - 80, 15% of measurement |
| Dielectric Measurement Frequency | 70 MHz |
| Signal Output | 1,000 - 2,500 mV |
| Dimension |
Length: 5.1cm Width: 2.4cm Height: 7.5cm Needle Length: 5.4cm |
| Operating Temperature Range | -40°C to 60°C |
| Cable Length |
Standard: Max. Length: |
| Measurement Duration | Minimum 10ms |
| Compliance |
EM ISO/IEC 17050:201 (CE Mark) 2014/30/EU 2011/65/EU EN61326-1:2013EN55022/CISPR 22 |
