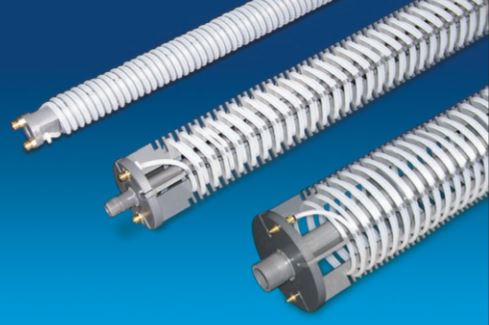

Model 703 Waterloo Emitter
The Waterloo Emitter is a simple, low cost device designed for the controlled and uniform release of oxygen, or other bioenhancing amendments, to encourage and sustain the growth of microorganisms required for in-situ bioremediation of contaminated groundwater
Applications
• Oxygen release for aerobic bioremediation of BTEX and MTBE
• Hydrogen release for anaerobic reductive dechlorination of solvents
• Introduction of dissolved SF6, argon, etc. for use as tracers
• Release of CO2 for pH adjustment
• Light alkane release to promote co-metabolic biodegradation of MTBE
• Plume migration barrier, primary remediation device, or polishing
Length of Tubing per Waterloo Emitter™
| 1.8" (45.77 mm) dia. | 62 ft. (18.9 m) | 3/8" NPTF |
| 3.8" (96.5 mm) dia. | 75 ft. (22.9 m) | 1/2" NPTM |
| 5.8" (147 mm) dia. | 150 ft (45.7 m) | 1 1/4" NPTM |
