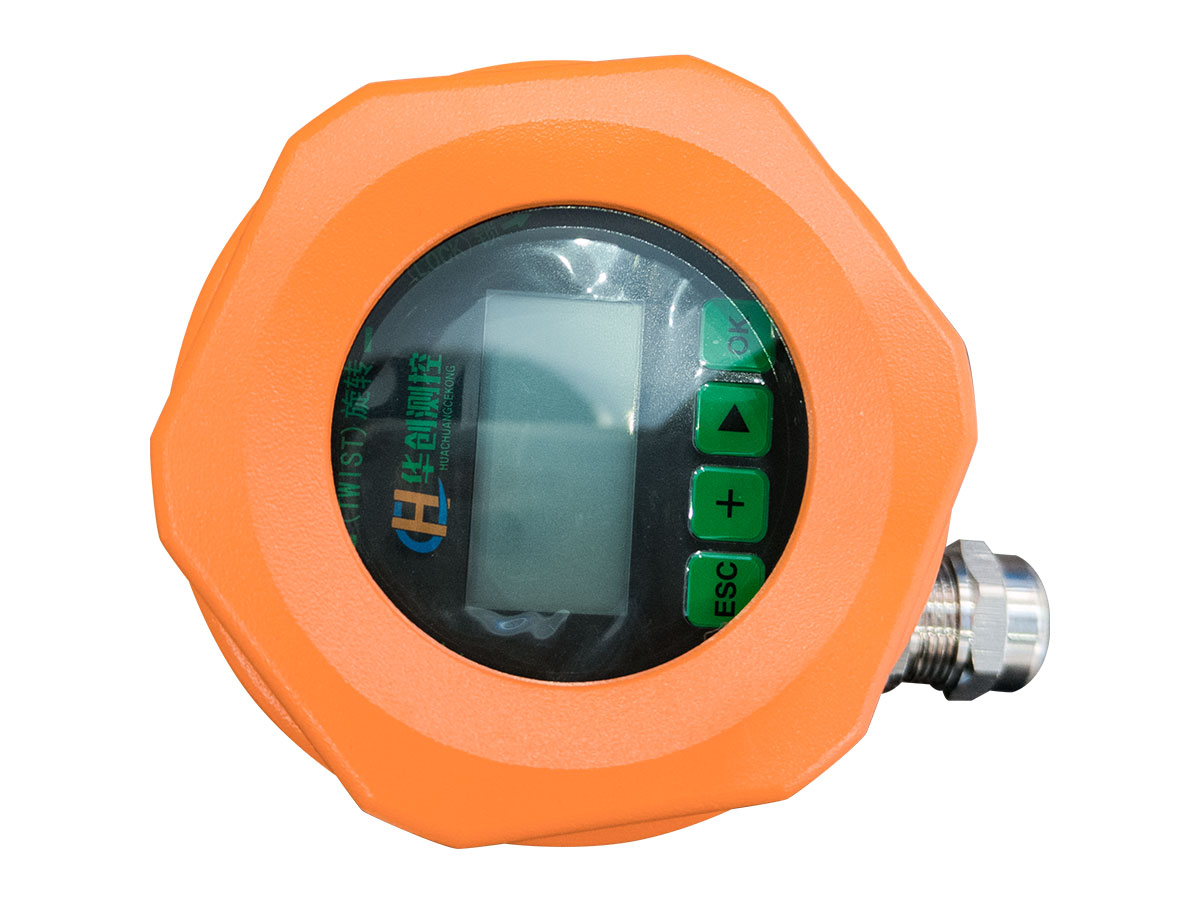

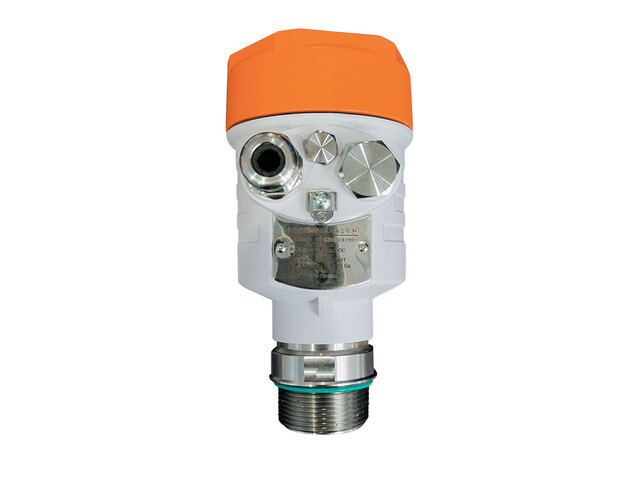

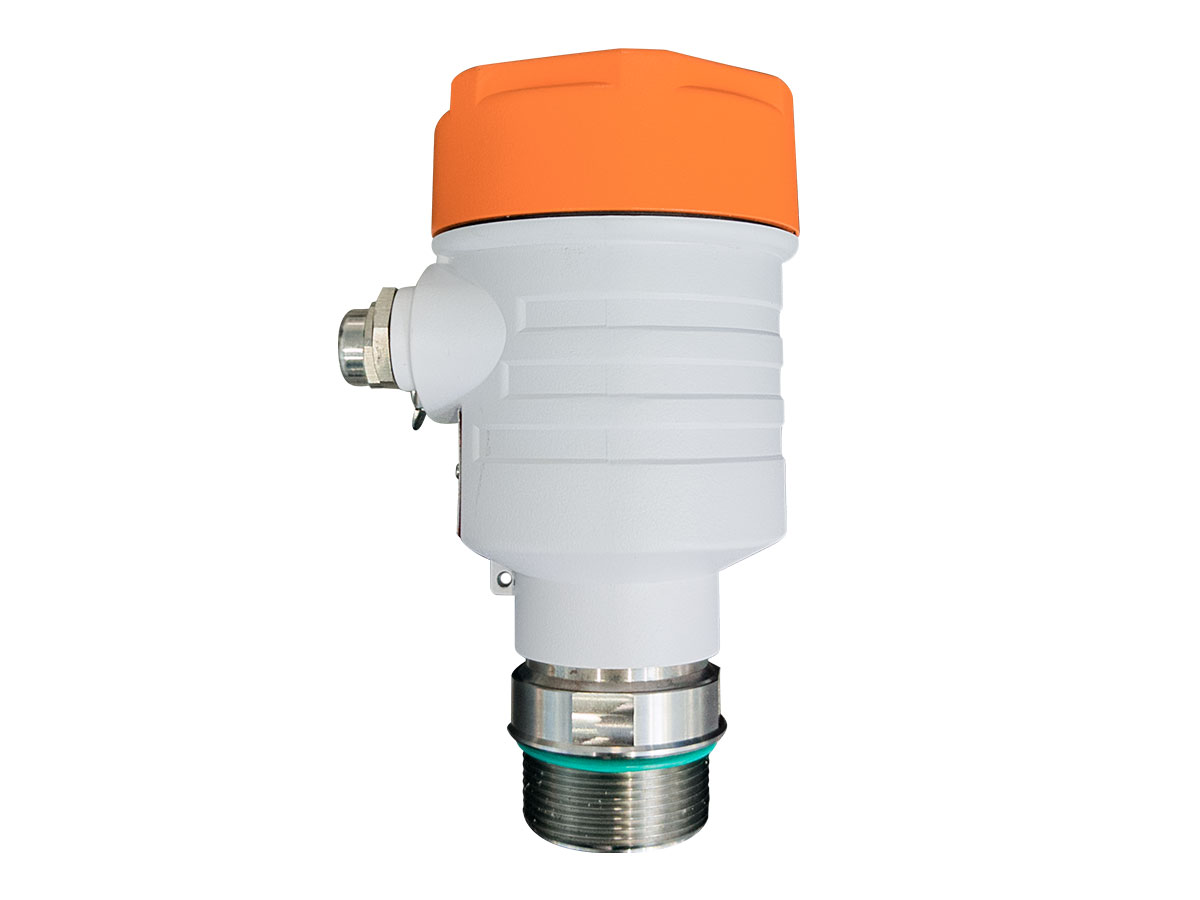

HCDAR-80S Liquid Measurement
HCDAR-80S Liquid Measurement
HCDAR-80S Liquid Measurement
HCDAR-80S Liquid Measurement HCDAR-80S Liquid Measurement HCDAR-80S Liquid Measurement
HCDAR-80S Liquid Measurement

Applicable to liquid measurement, antenna beam Angle is small, suitable for small tank diameter, limited installation position, small height occasions.

Applicable to liquid measurement, antenna beam Angle is small, suitable for small tank diameter, limited installation position, small height occasions.

  1. Based on the complementary metal-oxide-semiconductor transistor (CMOS) components with high compact architecture, gives higher signal to noise ratio and smaller blind zone.

    2. 5GHz working bandwidth means higher measurement resolution and accuracy.

    3. 3°antenna beam angle, so the interference in the environment has less impact on the instrument and the installation is more convenient.

    4. Shorter wavelength offers better reflection performance on solid surface, so the universal flange is not necessary.

    5. Supporting remote debugging and upgrading, reduce waiting time and improve the working efficiency.





Application Liquid Measurement
Measuring Range 0~10m
Beam Angle
Response Time: <0.6s ( Due To Parameter Setting)
Medium Temperature: -40~120)℃
Process Pressure: -0.1~0.3)MPa
Accuracy <2mm
