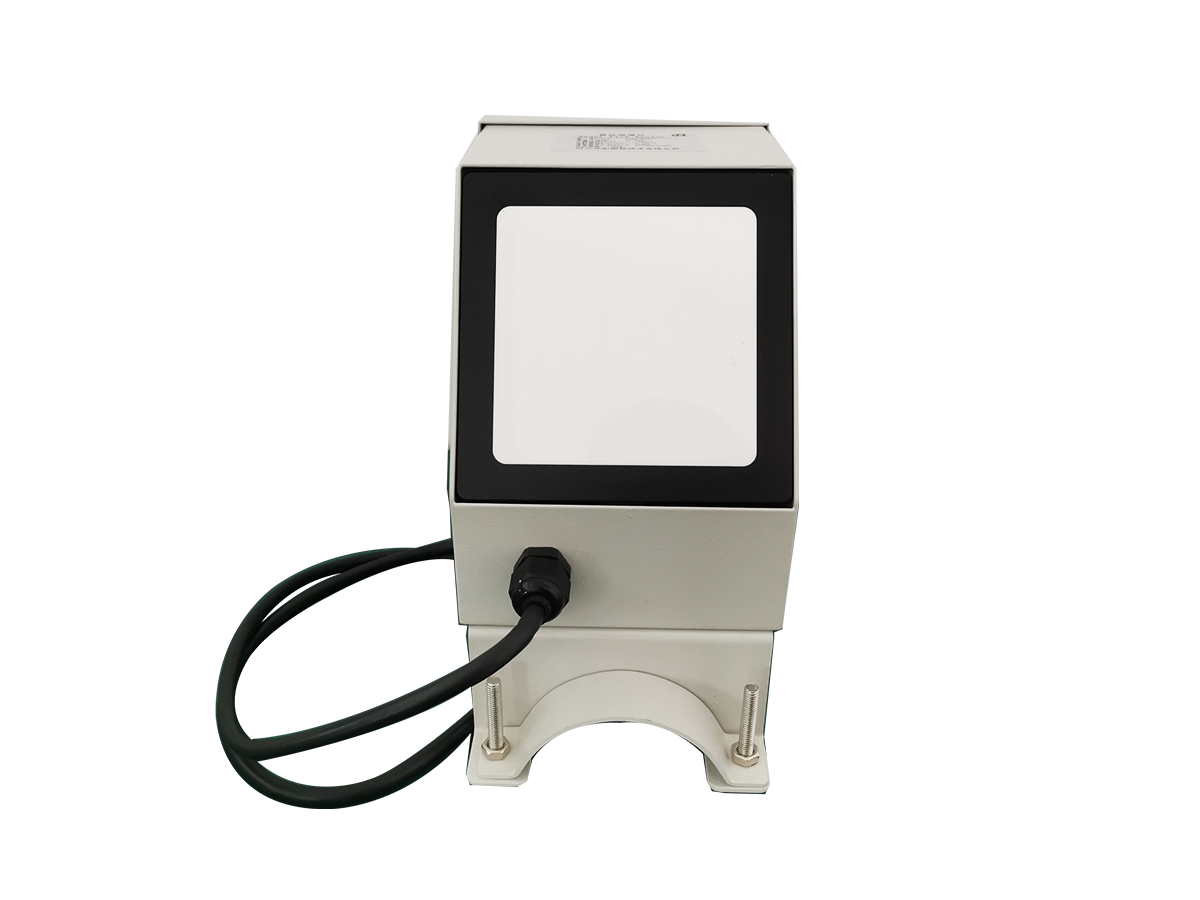

HCSM-6000

HCSM-600 radar flow sensor is a kind of radar which applies the Doppler Effect to detect the position of moving objects and relative moving speed. It uses the multi-point, multi-layer flow rate analyzer which is developed by the modern advanced signal processing technology. The biggest characteristic is that it can be installed randomly on the side or top of the measured river or channel as required,  the installation method can be set randomly according to the site situation, so as to measure multiple velocity values within the range of installed radar sector  accurately, and calculate the average velocity according to multiple velocity data. Then combine the field water level mapping , we can calculate out the flow rate of the river in various sections of regular or irregular fluid accurately.

1. Non-contact detection by planar microwave radar, not affected by climate, sediment and floating objects。

2. Fast and accurate measurement, stable data output, and suitable for high velocity environment in flood period.

3. Anti - condensation, waterproof, lightning protection design, suitable for  various of outdoor environments.

Application River, Hydrology, Water Conservancy
Measuring Range 0.1 - 25 m/s
Connection Distance 0.3 - 30 m
Resolution 0.1 mm/s
Accuracy ≤2%
Data Update Cycle 1 second
Transmitting Frequency 24GHz (K Band)
Power Supply 12V
Power Consumption 1.75W
Communication Interface RS-232/RS-485
