OLED 2,4″ Display for SPIDER
OLED 2,4″ Display for SPIDER
Water

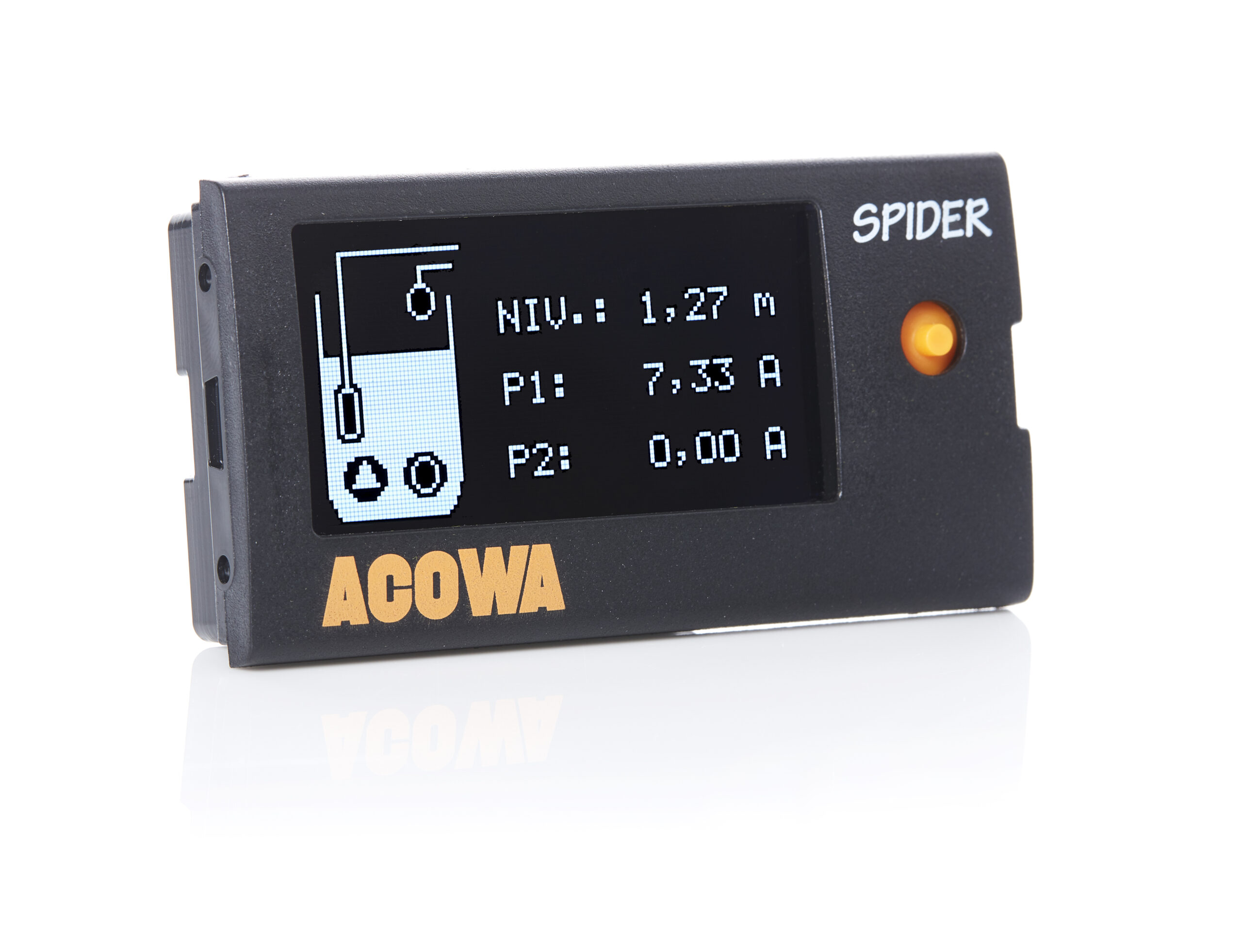

For modern pumping stations, access to important data must be easy and clear. With our many years of experience, ACOWA has gathered all the inputs and designed an easy and clear 2.4 “display called OLED. The display is for direct mounting on the SPIDER pump control and is built with different screen setups and can be operated with a joystick. OLED enables a visualization of the most essential settings and operating data in SPIDER pump control, and provides the opportunity to change a limited number of setpoints.

  • Level
  • Operating data P1 and P2
  • DI status
  • DO status
  • Communication status
  • Alarm list
  • Start / stop level P1 and P2
  • Operation P1 and P2
  • ACOWA OLED is used for direct mounting on the SPIDER.
Dimensions W=60,5mm × H=37mm × D=2.15
Display size B=5501 x H=27,49mm
Mounting For direct mounting on the SPIDER
Pixel size 0,40mm × 0,40mm
Display color Monochrome (white)
Power Supply 12V DC via SPIDER
Operating temperature -40°C to +80°C
Storage temperature -40°C to +80°C
Humidity 10% – 90% non-condensing air
Lifetime expectancy Minimum 20,000 hours
Certificates CE
