Rittmeyer offers precision flow sensors for closed pipes as well as open channels and partly filled pressure tunnels. The flow in closed pipes can be measured both with sensors mounted to the inside or outside of the pipe as well as non-invasive sensors installed on a mounting frame on the outside of the pipe.
Externally mounted (non-invasive) sensors for closed pipes

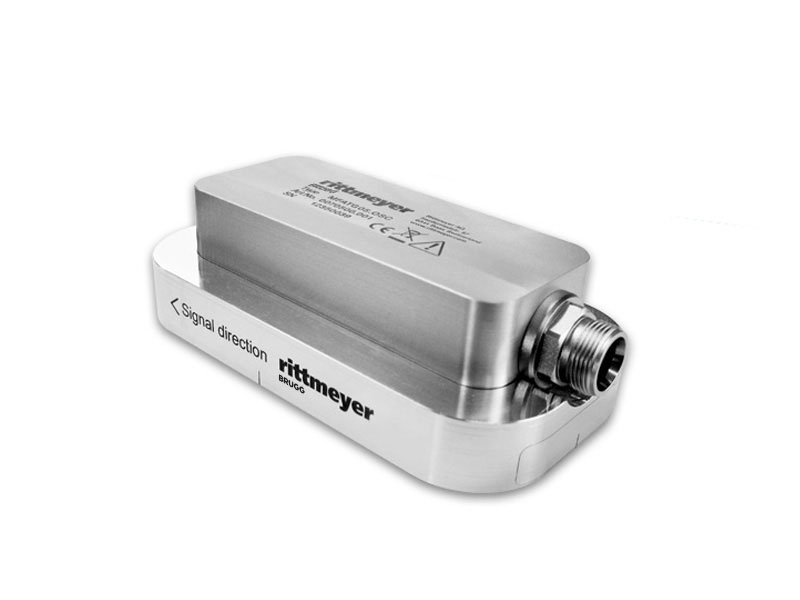

MFATGx
The clamp-on sensor installation on the outer pipe wall allows for non-invasive, cost-effective, and low maintenance flow measurements using ultrasound technology. For temporary measurements, the mounting frame can remain at the measuring point for regular flow checks.
- Easy placement: Magnetic attachment of the sensor
- Alternative adhesive attachment or tightening strap
- Can also be used for temporary measurements
- Installation possible in partially exposed pipes as well
- For applications in filled pipes with a 0.08 – 3 m diameter.
Firmly mounted sensors for closed pipes

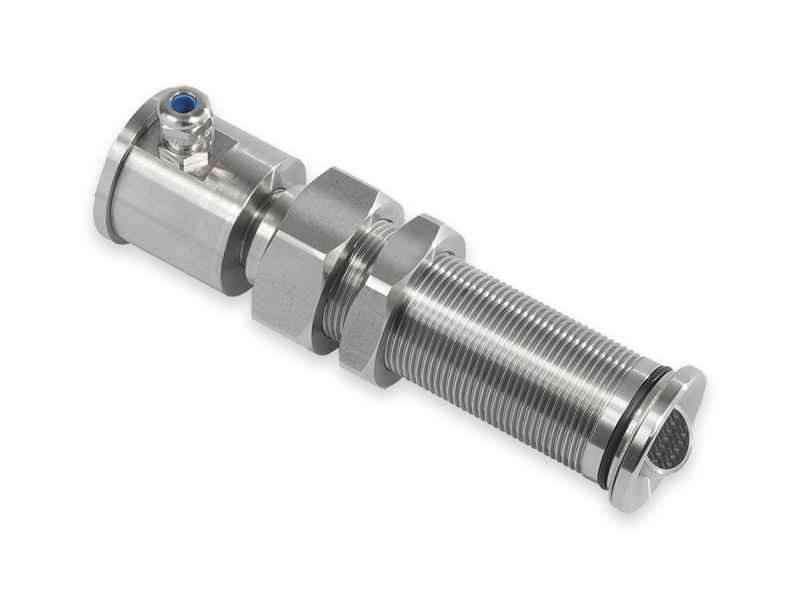

MFATAx
RISONIC modular type A pipe sensor for applications in filled or partially filled pipes with a 0.75 – 35 m diameter.
- Mounted on the inside
- Exchangeable under pressure
- Minimal protrusion
- Oscillating frequency: 1 MHz / 500 kHz
- Range up to 80 bar (higher pressures on request

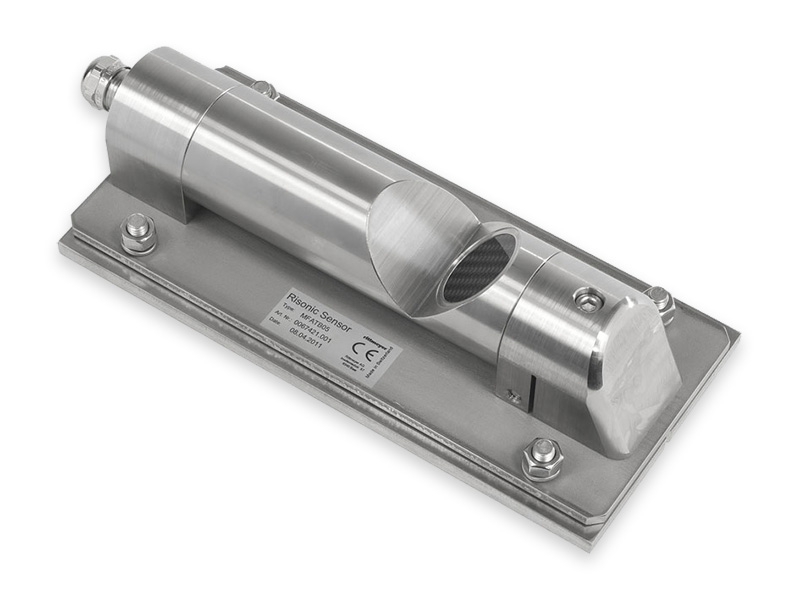

MFATBx
RISONIC modular type B pipe sensor for applications in open channels and in filled or partially filled pipes with a 0.75 – 35 m diameter.
- Installed inside the pipe or in channel
- Hydrodynamic profile
- Oscillating frequency: 1 MHz / 500 kHz
- Range up to 80 bar (higher pressures on request)

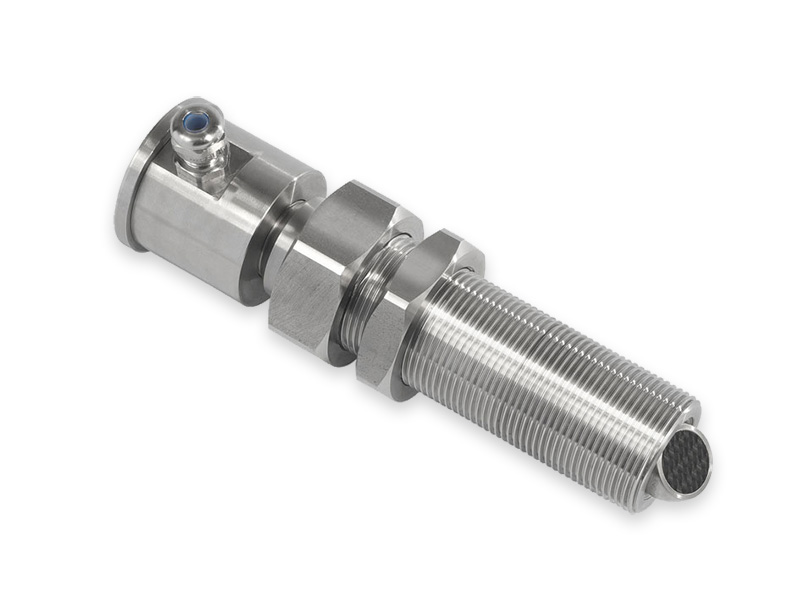

MFATCx
RISONIC modular type C pipe sensor for applications in filled or partially filled pipes with a 0.20 – 35 m diameter.
- Installation and access on the outside
- Exchangeable under pressure
- Minimal protrusion
- Oscillating frequency: 1 MHz / 500 kHz
- Range up to 80 bar (higher pressures on request

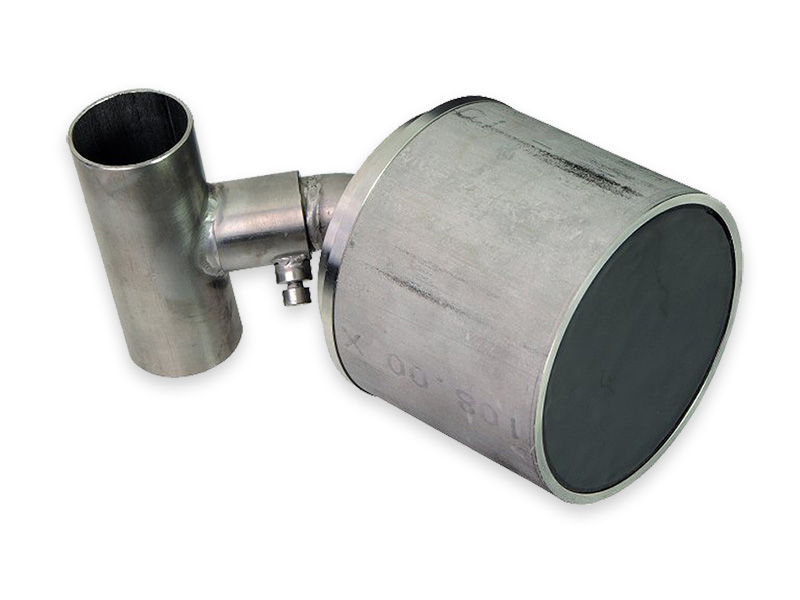

MFATK02
RISONIC modular type K02 channel sensor for open channels with widths ranging from 10 - 135 m.
- Very robust
- Path angle fully adjustable
- Hydrodynamic profile
- Oscillating frequency: 200 kHz
- Range up to 10 bar
