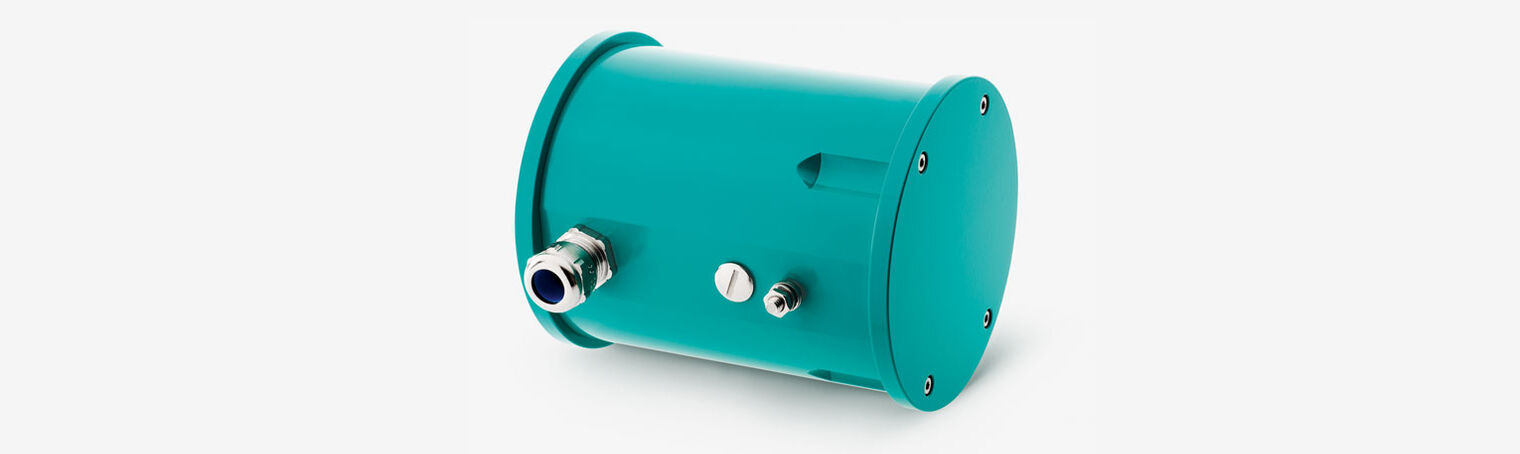

Product details RIVERT
- Measuring range 0 ... 360°, accuracy ± 0.044°
- Integrated process value calculations (limit values, linearization)
- Cable connection with cable glands
- 1 analog output with HART® (fully implemented)
- 4 digital outputs (optional)
- 1 status output
- Parallel code outputs (BCD, Gray, binary) on up to 22 digital outputs (optional)
Product details RIVERT smart
- Measuring range 0 ... 360°, accuracy ± 0.044°
- Integrated web server for easy configuration and diagnostics
- Integrated remotely accessible data logger
- Comprehensive process value processing (rake operation, interpolation curves, integration)
- Cable connection with plugs (M23, M12)
- 1 analog output
- 4 digital outputs
- 1 status output
- 1 Modbus RTU interface (master + slave)
- 1 Modbus TCP interface (master + slave)
- 1 Ethernet-100BaseT interface
- IEC-60870-5-104 protocol
- Support of several sensors connected via Modbus RTU+TCP
- Heater (optional)
