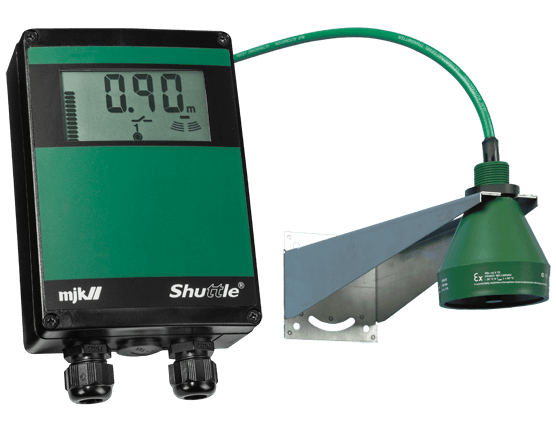

MJK Shuttle is a stable and intelligent level transmitter which requires a minimum of maintenance. Shuttle is mainly used in wastewater wells, sewer wells and drinking water reservoirs. Shuttle is also used to measure water levels in harbors, canals etc. It is working with a very low spread of the ultrasonic beam, which eases the installation process. The two built-in relays can be used as a level/system alarm or pump controller.
The Shuttle’s intelligent microprocessor-controlled converter is equipped with a learning function which eliminates false echoes from the well.
Measuring without contact is perfect for liquids containing contaminated and aggressive chemicals, or liquids with high concentration of suspended solids or sludge.
The built-in relays can be used as level or alarm signals or as pump controller.

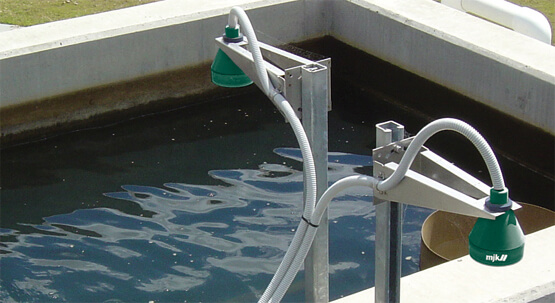

The selection of sensors allows the Shuttle to be installed in many different applications such as sewage water pumping stations, wells, storm flow constructions or in the inlet of waste water plants.
From the large clear LCD display, the measured value can be read easily and transferred as a 4-20 mA signal to RTU or SCADA systems.

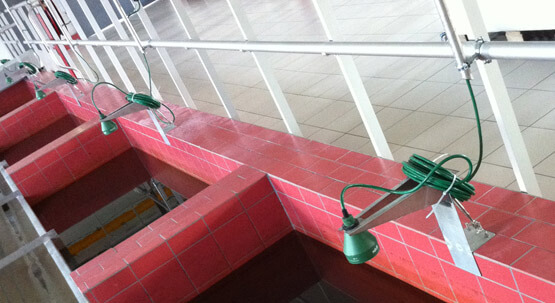

Shuttle is measuring drinking water levels in the basin, without physical contact with the measured drinking water.
From the large clear LCD display the measured value can be read easily and transferred as a 4-20 mA signal to RTU or SCADA systems.
Ask your MJK consultant for the right ultrasonic sensor for your application
| Range | 0 – 12m, 0 – 15m or 0 – 25m |
| Power Supply | 230/115VAC ± 10 %, 10 - 30 V DC |
| Accuracy | Better than ± 0.2 % |
| Outputs | Analog: 4 - 20 mA,max. load 500 Ω, Digital: 2 x relays with programmable NO/NC |
