SPIDER I/O Extended

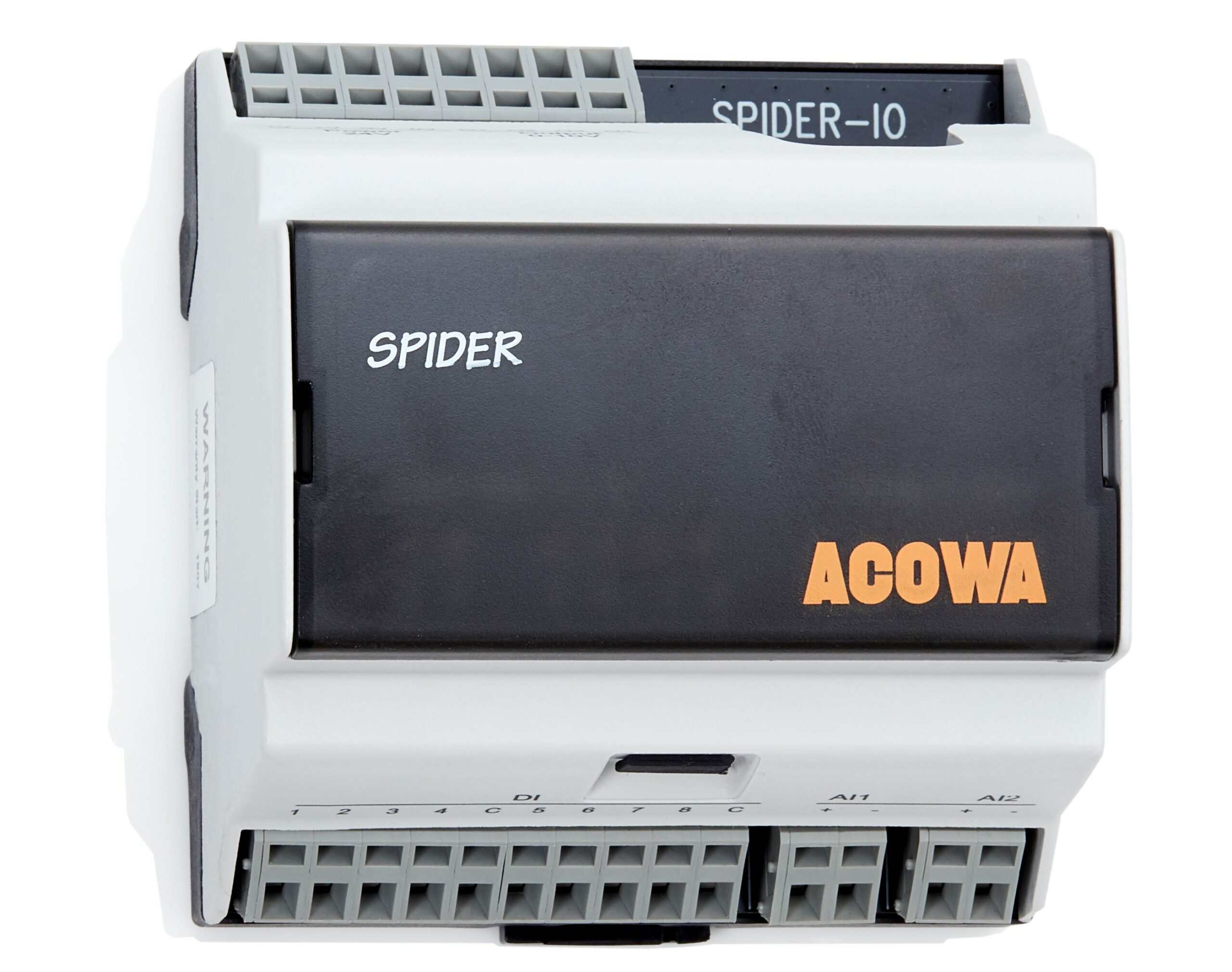

For SPIDER pump control, an expansion module has been developed that allows for more digital and analog inputs. The newly developed module is called SPIDER I/O. By using this module, SPIDER pump control becomes even more flexible and can therefore also function as an advanced 1 or 2 pump control with the option of connecting several operating and alarm signals.
At the same time, it will also be possible to collect data from frequency converters and other instruments with bus communication. When SPIDER I/O is connected to SPIDER pump control, the status of the digital and analog inputs can be read on the top board, as LEDs are mounted here for indication. It gives the user a good overview during commissioning and testing of the module.
- Used in connection with SPIDER pump control
| Specifications: | |
| Dimensions | W=87mm x H=90mm x D=62mm |
| Weight | 250g |
| Wire connection | 0.5 – 2,5 mm2 |
| Vibration (sinusoidal) | 10-500Hz, 1G |
| Free fall drop | 30 cm |
| Enclosure class | IP20 |
| Power supply | 230V AC +10% / -20% |
| Frequency | 50/60Hz |
| Input power consumption | 0,004 to 0,06A |
| Starting current | < 10A |
| Consumption | Max. 10W |
| Fuse | ≤ 250mAT |
| Certificates | CE |
| Environment: | |
| Humidity | Humidity 10% – 95% non-condensing air |
| Operating temperature | -20°C to +50°C |
| Storage temperature | -20°C to +60°C |
| Functional altitude | Max. 2000m above sea level |
| Tolerance | +/- 20% |
| Analog inputs: | |
| Number of analog mA inputs | 2 |
| Electrically insulated | No |
| Measuring range | 0/4–20mA |
| Input impedance | Approx.100Ω |
| Measurement accuracy | Better than 0,5% of FS |
| Signal range | 0-24mA / 0–30V DC |
| Cable/signal length | Max. 100m |
| Digital inputs: | |
| Number of digital inputs | 8 |
| Electrically insulated | No |
| Digital signal | Low < 5V / < 1mA High > 12V / > 4mA |
| Analog signal measuring range | 0–10V DC |
| Analog signal impedance | Ca. 20KΩ |
| Measurement accuracy | Better than 1% of FS |
| Signal range (min/max.) | 0–30V DC |
| Cable/signal length | Max. 100m |
