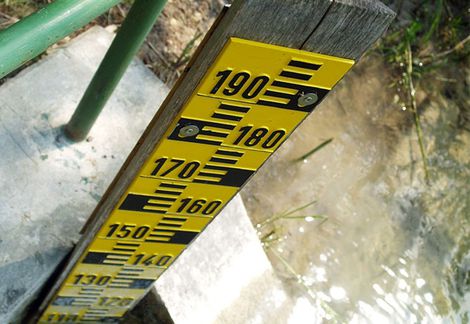

Staff Gauges

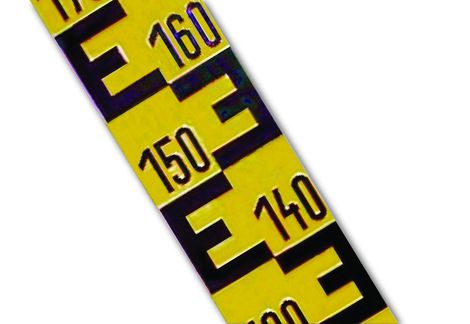

  • Staff gauges made of robust cast aluminum with raised 2 cm "E-scale" graduation (1 cm "E-scale" graduation as an option is possible)
  • Measuring range: 0-12 m (standard) in 1 meter sections
  • Scaling and figuring in cm or AMSL (above mean sea level) , black on yellow
  • Coating made of shock and weather-proof special lacquer
  • Available finishes: Plumb line-staff gauge, inclined staff gauges, staircase level
  • Reference level for adjustment and control of stationary level measuring systems

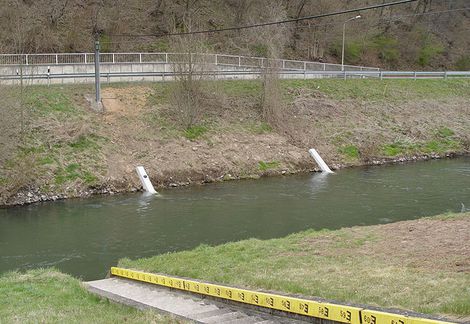

  • Simple water level  indicator in rivers, canals, lakes, reservoirs, wells and tanks

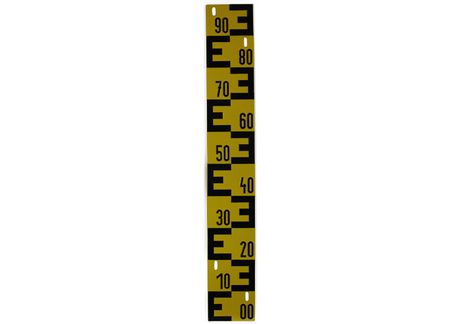

Plumb Line - Staff Gauge

Measurement Range Any, 0-12m (standard)
Figuring cm or mAD
Scaling 2cm E-scale graduation, sublime, dm-numbering (standard), 1 cm E-scale graduation (optional)
Colour Scaling and figures in black over yellow
Material Cast aluminum
Coating Special impact and weather-proof lacquer
Dimensions 150x1000x5mm (LxWxH)



Inclined Staff Gauge

Measurement Range Any, according to customer specifications
Figuring In cm or AMSL
Scaling 2 cm E-scale, sublime, dm-figuring (standard)
Inclination Any, according to customer specifications
Colour Scaling and figures in black over yellow
Material Cast aluminum
Coating Special impact and weather-proof lacquer
Dimensions 150x1000x5mm (LxWxH)
