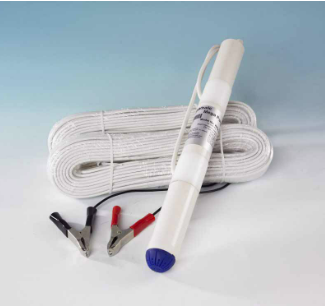

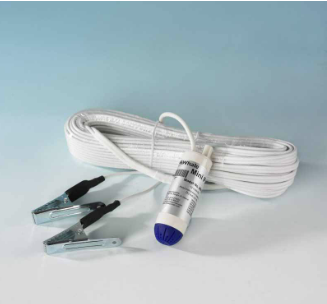

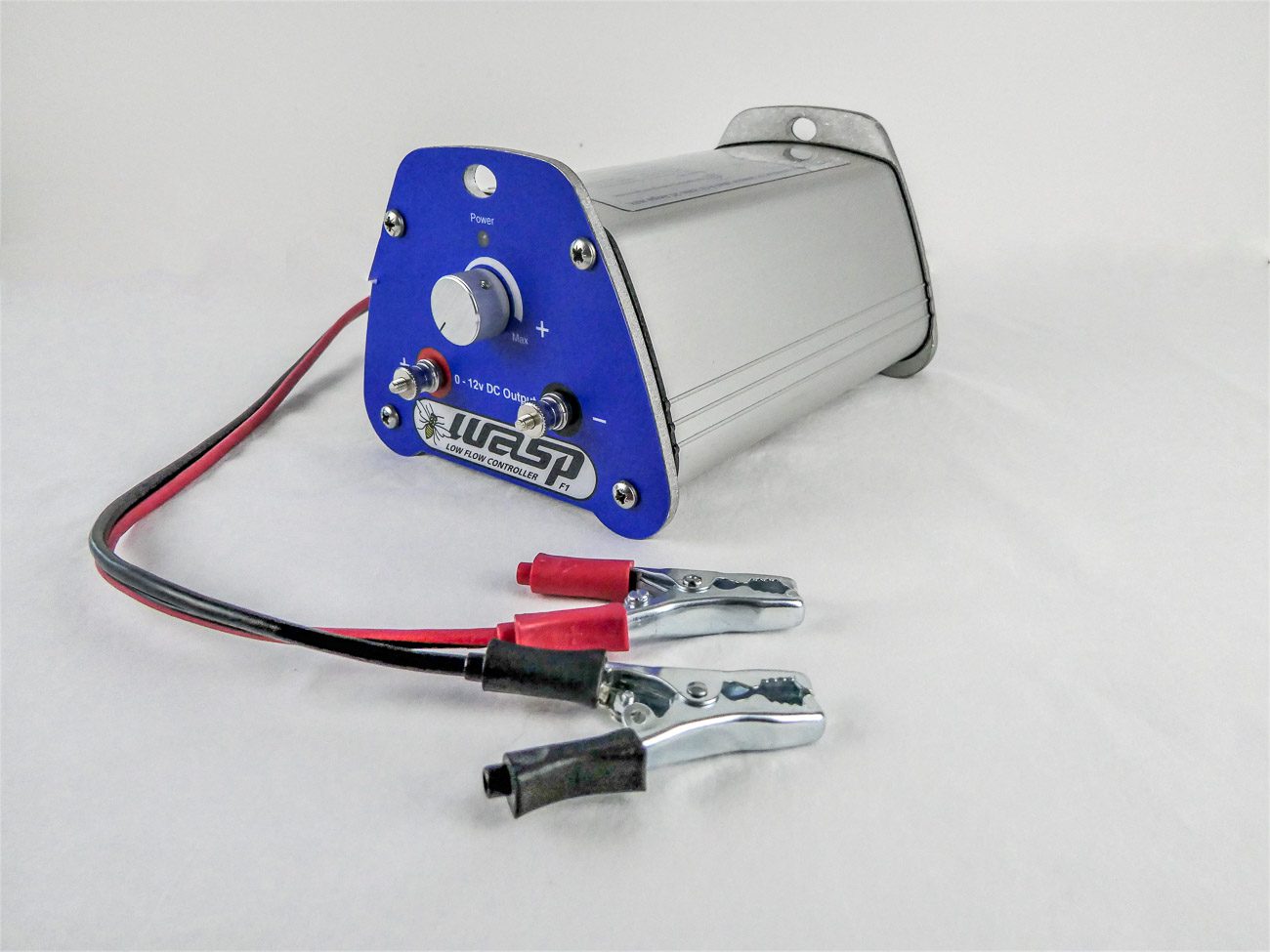

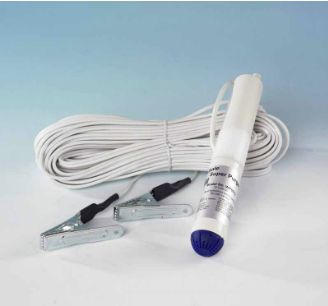

We carry 12 volt Portable Submersible Pumps for well purging and sampling procedures for groundwater monitoring programs. These pumps fit comfortably in 2 inch (50 mm) monitoring wells. The pump controller is use for providing power supply and regulating suction speed, it is optional.
All of these pumps can greatly speed up the process of purging and sampling monitoring wells, especially if dedicated installations are used. These pumps are complete and ready to use. The manufacturer recommends: Intermittent use. Running periods should be restricted to 15 minutes followed by 5 minute cool down periods.
PFAS, PFOS & PFOA free
| WP40-12 | WP60-12 | WP90-12 |
|---|
| Maximum Lift* | 12 m 40 ft |
18 m 60 ft |
27 m 90 ft |
| Pump Diameter | 36 mm 1.42 in |
43 mm 1.7 in |
43 mm 1.7 in |
| Pump Length | 128 mm 5 in |
260 mm 10.2 in |
392 mm 15.4 in |
| Port Size | 11 /14 mm 0.43 / 0.55 in |
11 /14 mm 0.43 / 0.55 in |
11 /14 mm 0.43 / 0.55 in |
| Max. Power | 52.5 W | 96 W | 120 W |
| Voltage Range | 10 - 15 V | 10 - 15 V | 10 - 15 V |
| Max. Current | 3.5 A | 6.4 A | 8.0 A |
| Cable Length | 19 m 62 ft |
19 m 62 ft |
29 m 95 ft |
| WP40-12 | WP60-12 | WP90-12 |
|---|
| Maximum Lift* | 12 m 40 ft |
18 m 60 ft |
27 m 90 ft |
| Current Draw | 2.0 - 3.5 Amp | 3.3 - 6.4 Amp | 5.1 - 8.0 Amp |
| 3 m / 10 ft | 12.1 lpm 3.2 gpm |
11.4 lpm 3.0 gpm |
13.2 lpm 3.5 gpm |
| 6.1 m / 20 ft | 7.6 lpm 2 gpm |
8.7 lpm 2.3 gpm |
11.7 lpm 3.1 gpm |
| 9.1 m / 30 ft | 3.8 lpm 1 gpm |
6.1 lpm 1.6 gpm |
9.8 lpm 2.6 gpm |
| 12.2 m / 40 ft | 0.4 lpm 0.1 gpm |
4.2 lpm 1.1 gpm |
8.3 lpm 2.2 gpm |
| 15.2 m / 50 ft | - | 1.9 lpm 0.5 gpm |
6.4 lpm 1.7 gpm |
| 18.3 m / 60 ft | - | 0.4 lpm 0.1 gpm |
5.3 lpm 1.4 gpm |
| 21.3 m / 70 ft | - | - | 3.4 lpm 0.9 gpm |
| 24.4 m / 80 ft | - | - | 2.3 lpm 0.6 gpm |
| 27.4 m / 90 ft | - | - | 0.8 lpm 0.2 gpm |
The pump outlet accommodates 0.5 inch (12.2 mm) inside diameter (ID) tubing.
If you remove the barbed sleeve on the pump. The underlying tube will accommodate 3/8 inch (9.5 mm) ID tubing.
LDPE tubing is softer and easier to work over the pump outlet.
