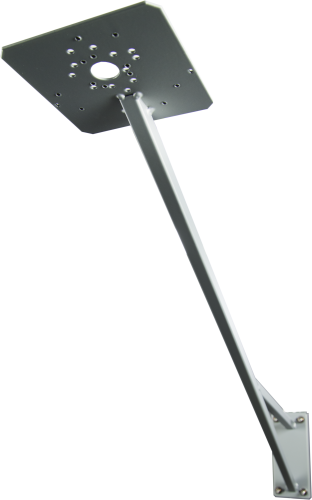

015ARM Pyranometer Mounting Arm
For many applications, the 015ARM Pyranometer Mounting Arm has been replaced by a CM225 Solar Sensor Mounting Stand. The 015ARM is used to attach a pyranometer or quantum sensor to a tripod. Many pyranometers and quantum sensors also require a levelling base that secures the sensor to the 015ARM and levels the sensor.
The 015ARM consists of a square platform, mounting arm, and mounting hardware.
- CS 015ARM Pyranometer Mounting Arm mounts a single pyranometer levelling base (LI2003S, CM3MT, or 14282) to a CM6 Tripod or CM10 Tripod
N/A
| Why/When to Use | Recommended when the sensor needs to be mounted directly to a tripod mast without using a cross-arm. |
| Platform Area | 15.2 x 15.2 cm (6.0 x 6.0 in.) |
| Arm Length | 106.7 cm (42.0 in.) |
| Weight | 2.5 kg (5.5 lb) |
