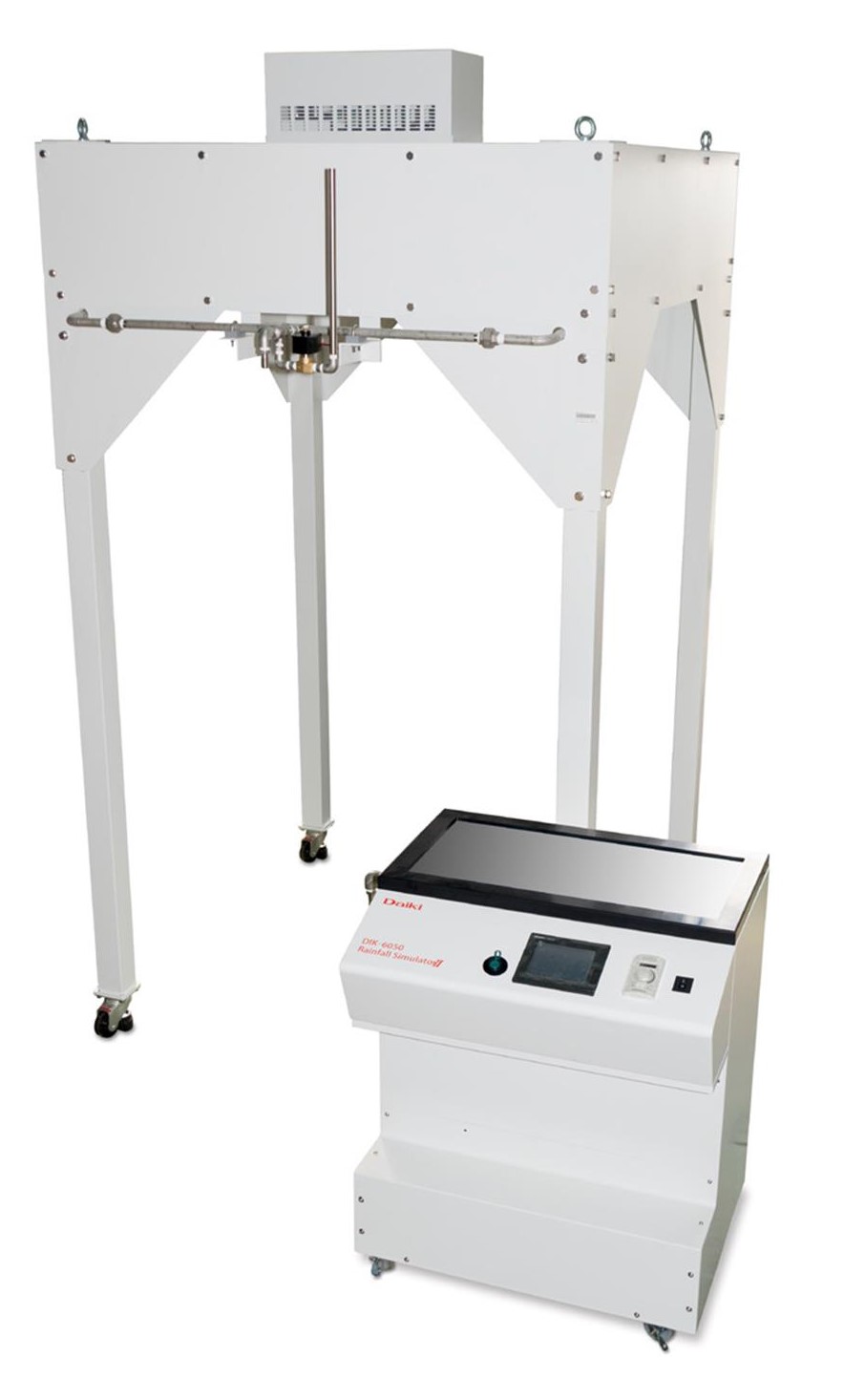

Automatic Control Rainfall Simulator
By feedback control of a flow meter, it is always possible to maintain stable rainfall intensity. Data such as rainfall intensity and raindrop diameter can be stored in every one minute, and stored to a USB. After setting up rainfall intensity, start and stop time and raindrop diameter, it is possible to the continuous automatic operation with maximum 5 patterns.
N/A
| Artificial raindrop generator 1unit | |
| Effective rainfall area | 1m2 (1m x 1m) |
| Effective height | Approx. 2m |
| Rainfall strength | 10～100㎜/h |
| Changeable range of raindrop size | 1.9 - 2.8mm |
| Distribution accuracy （※）The measurement technique is based on our regulations and the one in the range of the effective rainfall. |
regular rainfall mode (the nozzle without velocity revolution) : within ±10% Random rainfall mode: within ±20% |
| Water supply tank 1 unit | |
| Power source | 100VAC 2.5A |
