BPALK 12 V Alkaline Battery Pack
BPALK 12 V Alkaline Battery Pack
BPALK 12 V Alkaline Battery Pack





You can use the BPALK alkaline battery pack to power your CR800, CR850, CR1000X, or CR3000 dataloggers, and their peripherals. You can also use it as a separate auxiliary 12 V power supply to power remotely located sensors or peripherals. The system must have a common ground.

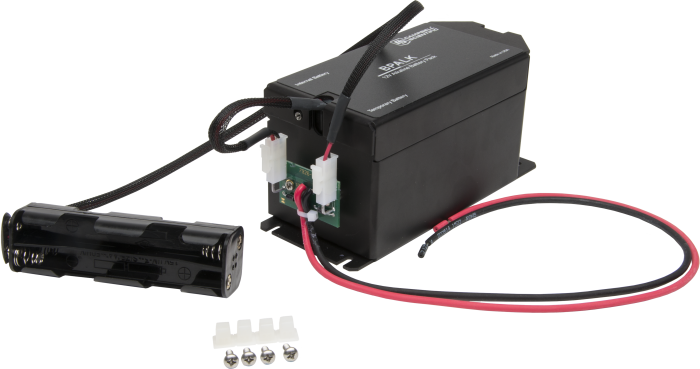

The BPALK consists of eight replaceable D-cell alkaline batteries, battery connectors, and a temporary 12 V AA alkaline battery pack used during D cell replacement. The temporary battery pack requires eight AA-cell batteries (not included).

Battery Type Alkaline
Nominal Rating 7.5 Ah (@ 20°C)
Batteries Needed 8 not-rechargeable alkaline D cells (included)
Output Voltage 12 Vdc
Operating Temperature Range -25° to +50°C
Dimensions
  • 15.2 x 7.4 x 8.0 cm (6.0 x 2.9 x 3.2 in.) without connectors and mounts
  • 18.1 x 7.4 x 8.0 cm (7.1 x 2.9 x 3.1 in.) with connectors and mounts
Weight 1.8 kg (4 lb)
