CM-1101

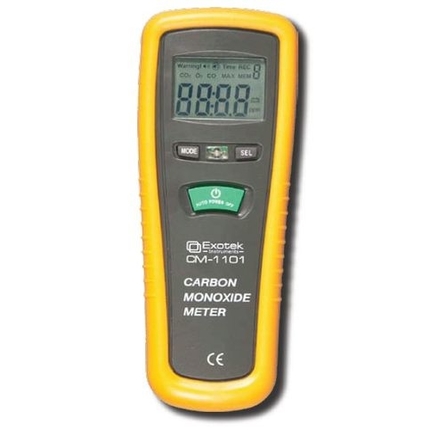

CM-1101 Carbon Monooxide Detector

The Carbon Monoxide Meter detects the presence of carbon monoxide (CO) and measures concentrations between 1-1000 parts per million (PPM). The Meter indicates the presence of carbon monoxide in two ways: ·By a reading on the LCD in PPM. ·By a beeper tone. The Meter indicates the presence of CO by a reading on the LCD and a beeper tone. The beeper functions much like clicking of a Geiger counter:·Above 200 PPM, the beeper sounds continuously with the concentration of CO.·From 35 PPM to 200 PPM, the beeper sounds continuously with the Concentration of CO.

Temperature

Operating:

Storage::

0° to + 50° C

-30° to + 60° C

Operating humidity 0-99% Relative humidity (non-condensing)
Measurement Range 0 to 1000PPM
Measurement Resolution 1PPM
Accuracy ±5% or ± 10 PPM
Warm up period <2 seconds
Battery 9V IEC 6LR61, or equivalent.
Auto power off Meter automatically shuts down after 15 minutes of inactivity
Sensor type Stabilized electrochemical Gas-specific (CO
Typical sensor life 3 years
