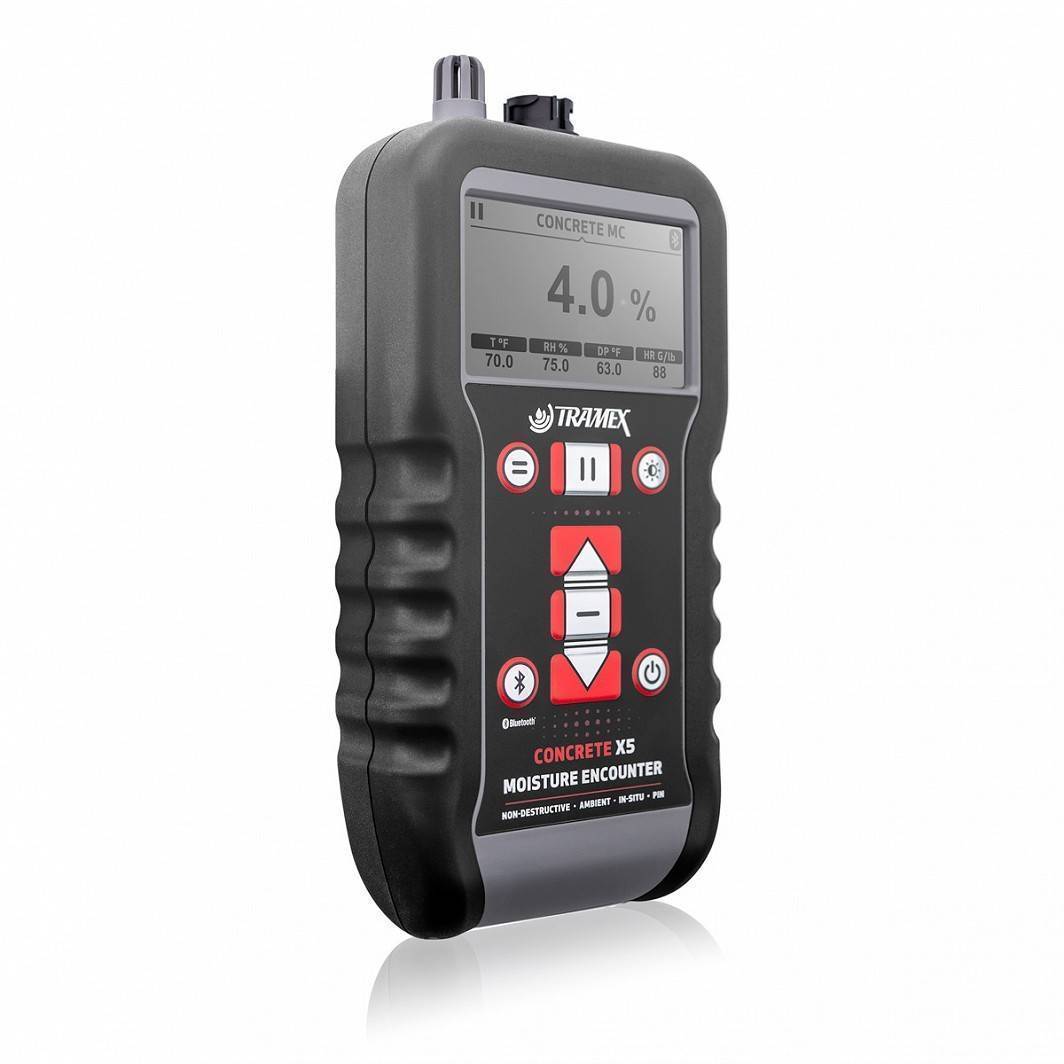

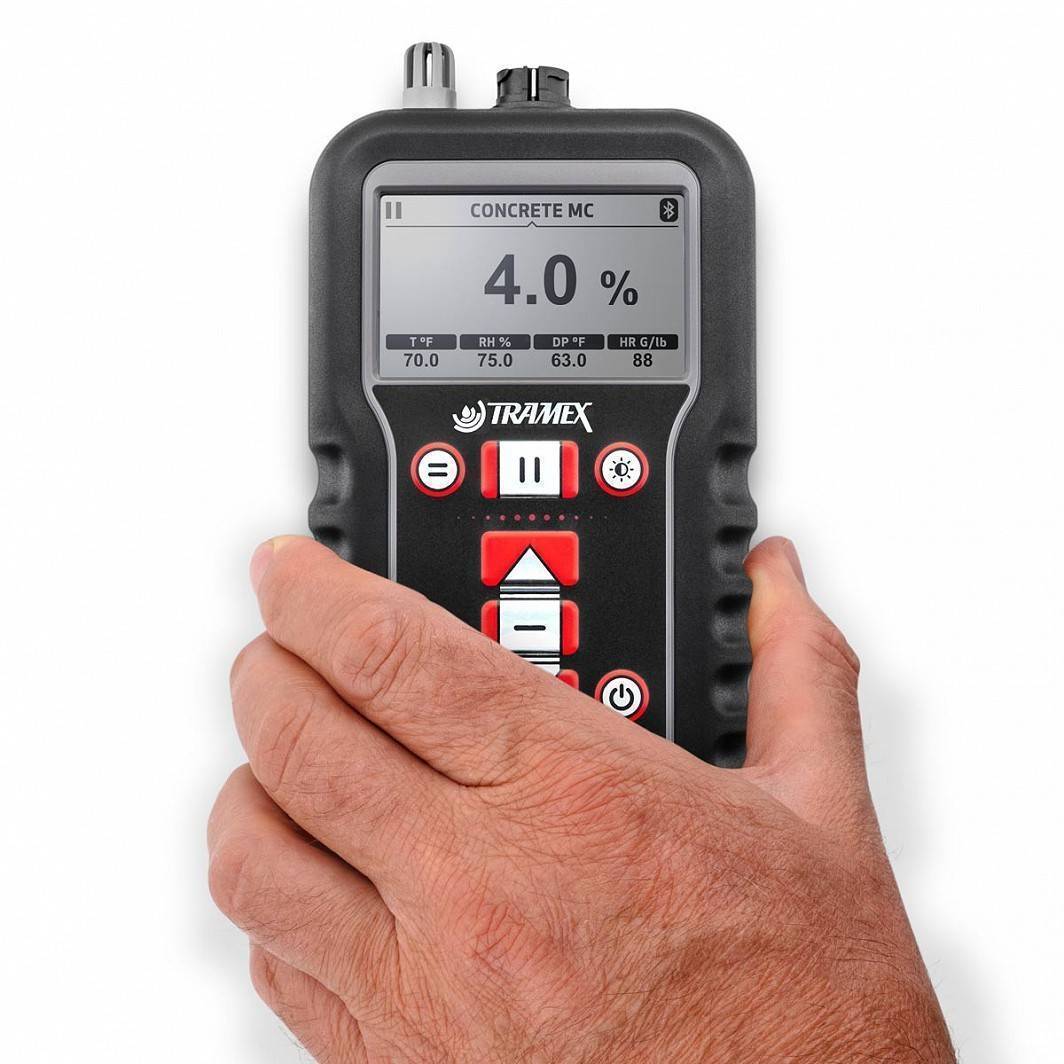

CMEX5 - CONCRETE MOISTURE ENCOUNTER X5
The Tramex Concrete Moisture Encounter X5 - CMEX5 is an instant, precise, digital, non-destructive moisture meter for measuring quantitative moisture content % in concrete floors and slabs using Gravimetric testing as a baseline. The CMEX5 also provides Carbide Method equivalent readings for concrete and other cementitious substrates as well as comparative readings for Gypsum and as per ASTM F2659.
- 4 modes of measurement: Non-destructive moisture measurement, ambient hygrometer, and optional external in-situ hygrometer and wood pin probe.
- 5 Non-Destructive test (NDT) Scales: Concrete %MC, CM Concrete (Carbide Method equivalent for concrete), CM Anhydrite, Gypsum Ref 0-12 and a Reference scale.
- Instant and precise readings to a depth of approximately 20mm (3⁄4") into the concrete slab, for reproducible and reliable results.
- The built-in Hygrometer probe provides Ambient Relative Humidity (%RH) readings, temperature, dew-point temperature and Humidity Ratio.
- Pin-probe mode for 5% to 30% Moisture Content measurement in Wood; 7 -100 comparative (WME), using Pin-type probe attachments. (optional)

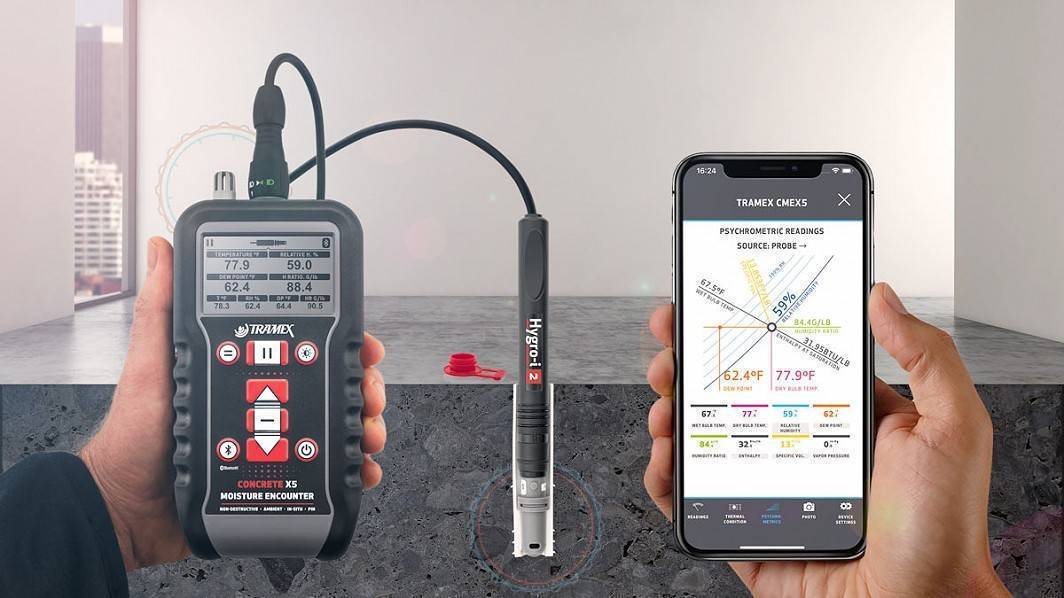

- Attaches to a reusable relative humidity Hygro-i2 ® probe for in situ and hood testing of concrete per BS 8201, 8203, 5325 and ASTM F2170. (optional)
- Airspace conditions of Relative Humidity, Temperature, Dew-point and Humidity Ratio (using optional RH probes)

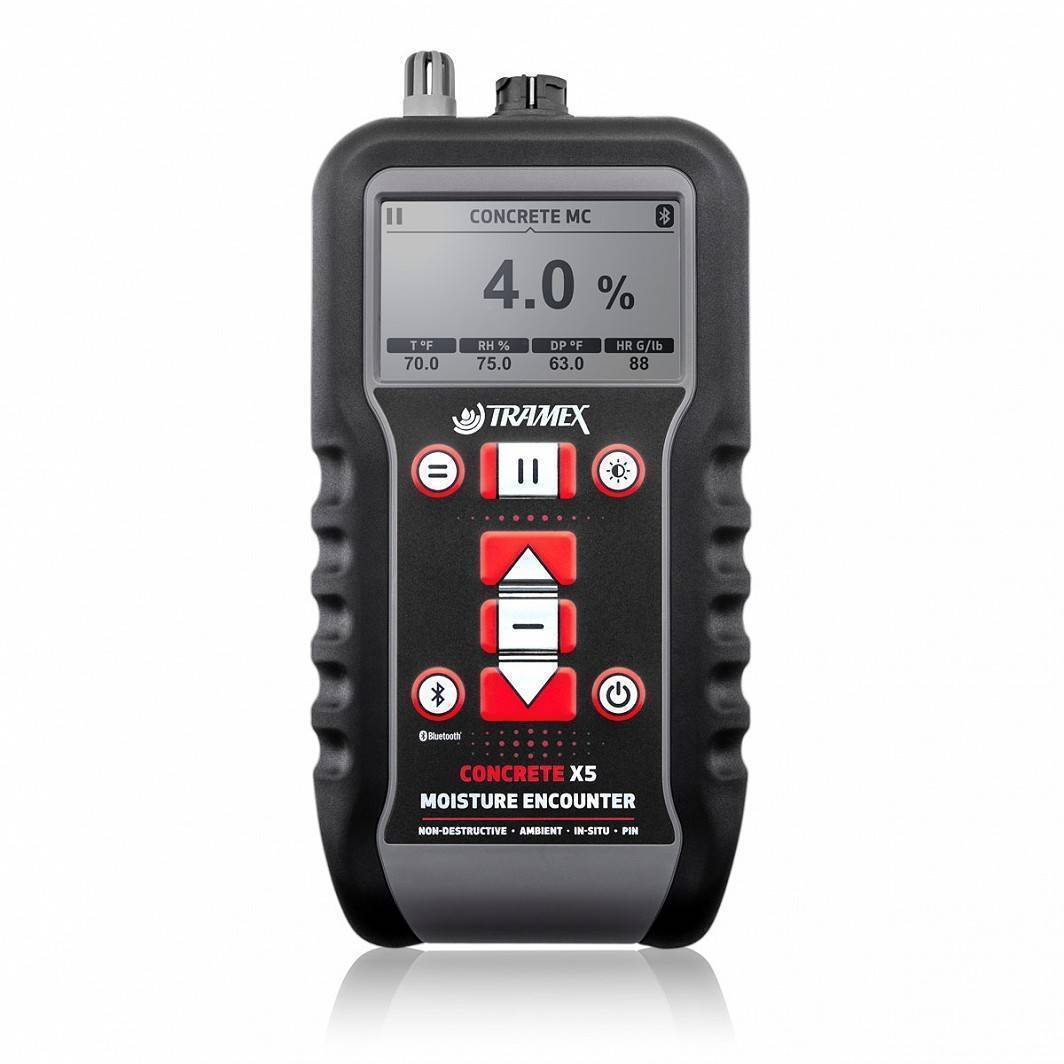

- Moisture readings and scale are displayed on a large, clear easy-to-read clear digital display: 2.3" x 1.4" (58mm x 35mm).
- Front lit display allows the display to be easily read in poor light conditions.

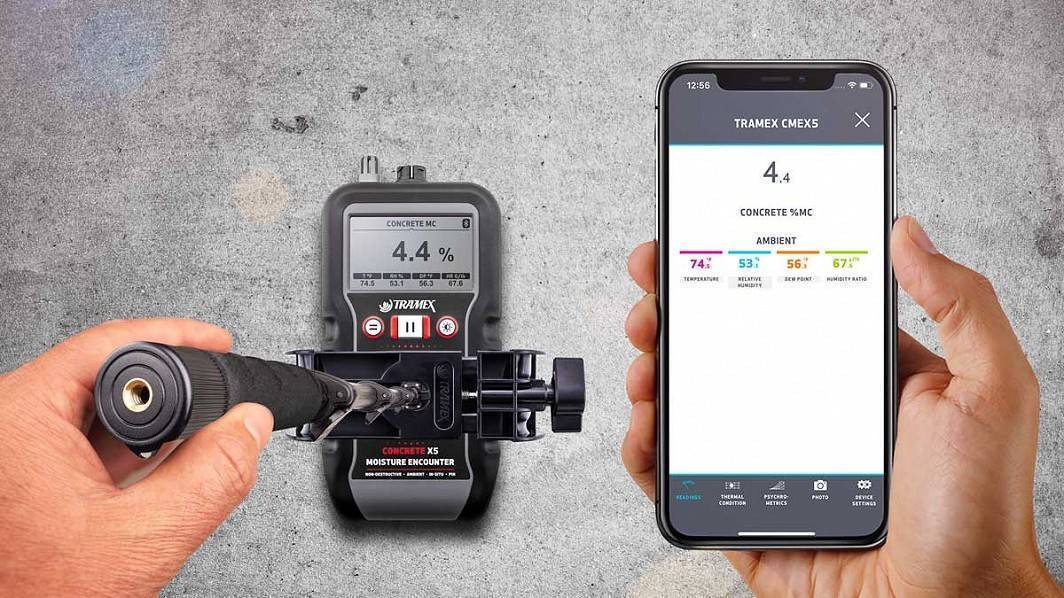

- Bluetooth connection to accompanying IOS & Android App allowing for continual development and integration of apps and reporting.
- Hold Function which enables the user to “freeze” the reading, useful when taking readings where the meter face may not be visible.
- Spring-loaded contact pins compensate for uneven concrete and boost signal penetration.
- Rugged ergonomically designed enclosure.
Size: | 180mm x 85mm x 40mm (7.1" x 3.4" x 1.6") |
Weight: | 357g (12.59oz) |
Construction: | ABS Body |
Power: | 2 x AALR6 ALKALINE (included) |
Display: | Digital |
Depth of penetration in concrete: |
approx. 20mm (3⁄4") |
Measuring range:
Moisture content for Concrete: | 0 → 6.9 % |
Comparative for Gypsum floor screed: | 0 → 12 |
CM Equiv Anhydrite/Concrete: | 0→2.7 / 0→4.3 |
Reference scale: | 0 → 100 |
Relative Humidity: | 0 → 99% |
(with optional Hygro-i2 ® probe): | 0% → 99%RH +/- 2% @ 25°C / 77°F |
Moisture content for wood (with optional wood pin probes): | 5 → 30 % |
