CR1000X Measurement and Control Datalogger

The CR1000X is our flagship data logger that provides measurement and control for a wide variety of applications. Its reliability and ruggedness make it an excellent choice for remote environmental applications, including weather stations, mesonet systems, wind profiling, air quality monitoring, hydrological systems, water quality monitoring, and hydrometeorological stations.

The CR1000X is a low-powered device that measures sensors, drives direct communication and telecommunications, analyzes data, controls external devices, and stores data and programs in onboard, nonvolatile storage. The electronics are RF-shielded by a unique sealed, stainless-steel canister. A battery-backed clock assures accurate timekeeping. The onboard, BASIC-like programming language, common to all contemporary Campbell Scientific dataloggers, supports data processing and analysis routines.

The CR1000X is a low-powered device designed to measure sensors, drive direct communication and telecommunications, analyze data, control external devices, and store data and programs in on-board, non-volatile storage. The electronics are RF-shielded and glitch-protected by a unique sealed, stainless-steel canister. A battery-backed clock assures accurate timekeeping. The on-board, BASIC-like programming language—common to all Campbell Scientific data loggers—supports data processing and analysis routines.

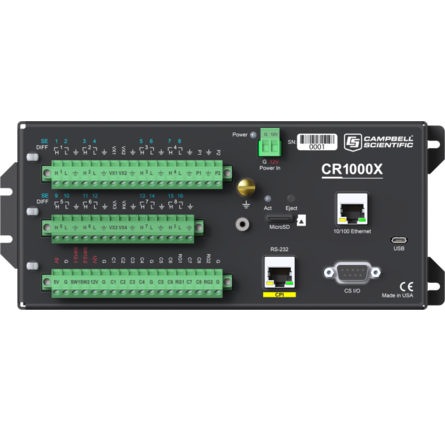

The CR1000X wiring panel includes two switchable 12 V terminals, analog grounds dispersed among 16 analog terminals, and unpluggable terminal blocks for quick deployment.

Operating Temperature Range
  • -40° to +70°C (standard)
  • -55° to +85°C (extended)
  • Non-condensing environment
Case Material Powder-coated aluminum
Analog Inputs 16 single-ended or 8 differential (individually configured)
Pulse Counters 10 (P1 to P2 and C1 to C8)
Voltage Excitation Terminals 4 (VX1 to VX4)
Maximum Source/Sink Current
  • ±40 mA (voltage excitation)
  • 50 mA (switched regulated)
Communications Ports
  • Ethernet
  • USB Micro B
  • CS I/O
  • RS-232
  • CPI
  • RS-485
Data Storage Ports microSD
Switched 12 Volt 2 terminals
Digital I/O 8 terminals (C1 to C8) configurable for digital input and output. Includes status high/low, pulse width modulation, external interrupt, edge timing, switch closure pulse counting, high-frequency pulse counting, UART, RS-232, RS-485, SDM, SDI-12, I2C, and SPI function. Terminals are configurable in pairs for 5 V or 3.3 V logic for some functions.
Input Limits ±5 V
Analog Voltage Accuracy
  • Accuracy specifications do not include sensor or measurement noise.
  • ±(0.04% of measurement + offset) at 0° to 40°C
  • ±(0.06% of measurement + offset) at -40° to +70°C
  • ±(0.08% of measurement + offset) at -55° to +85°C (extended temperature range)
ADC 24-bit
Power Requirements 10 to 18 Vdc input
Real-Time Clock Accuracy ±3 min. per year (Optional GPS correction to ±10 µs)
Internet Protocols Ethernet, PPP, CS I/O IP, RNDIS, ICMP/Ping, Auto-IP(APIPA), IPv4, IPv6, UDP, TCP, TLS (v1.2), DNS, DHCP, SLAAC, SNMPv3, NTP, Telnet, HTTP(S), FTP(S), SMTP/TLS, POP3/TLS
Communication Protocols CPI, PakBus, SDM, SDI-12, Modbus, TCP, DNP3, UDP, NTCIP, NMEA 0183, I2C, SPI, and others
Warranty 1 year against manufacturer defect
Battery-backed SRAM for CPU Usage & Final Storage 4 MB
Data Storage 4 MB SRAM + 72 MB flash (Storage expansion of up to 16 GB with removable microSD flash memory card.)
Idle Current Drain, Average < 1 mA (@ 12 Vdc)
Active Current Drain, Average
  • 1 mA (1 Hz scan @ 12 Vdc)
  • 55 mA (20 Hz scan @ 12 Vdc)
