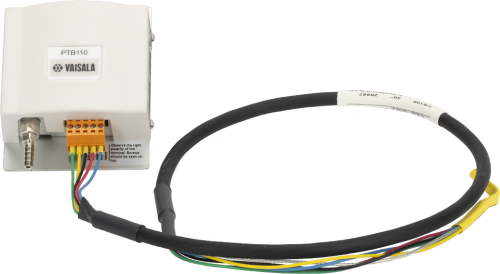

The CS106, manufactured by Vaisala, measures barometric pressure for the range of 500 to 1100 hPa (mBar). This range equates to from below sea level (as in a mine) to over 15,000 feet above sea level. Designed for use in environmental applications, the CS106 is compatible with most Campbell Scientific data loggers. The CS106 has an attached 76.2 cm (30 in.) cable.

  • CS106 Barometer measures barometric pressure over 500 to 1100 mb range
  • Integral mounting bracket optimised for mounting in Campbell Scientific enclosures
  • Integral switching circuit allows power consumption only during measurement cycle
-NOTE- 1 hPa = 1 mBar
Pressure Range 500 to 1100 hPa
Long-Term Stability ± 0.1 hPa per year
Settling Time 1 s to reach full accuracy after power-up
Response Time 500 ms to reach full accuracy after a pressure step
Output Voltage 0 to 2.5 Vdc
Supply Voltage 10 to 30 Vdc
Elevation ~609.6 m (2,000 ft) below sea level (as in a mine) to 4,572 m (15,000 ft) above sea level
Accuracy
  • Accuracy refers to the root sum squared (RSS) of end point non-linearity, hysteresis, repeatability, and calibration uncertainty.
  • ±0.3 hPa (@ +20°C)
  • ±0.6 hPa (@ 0° to 40°C)
  • ±1.0 hPa (@ -20° to +45°C)
  • ±1.5 hPa (@ -40° to +60°C)
Linearity ±0.25 hPa
Hysteresis ±0.03 hPa
Repeatability ±0.03 hPa
Calibration Uncertainty ±0.15 hPa
Current Consumption
  • < 4 mA (active)
  • < 1 µΑ (quiescent)
Temperature Range -40° to +60°C
Dimensions 6.8 x 9.7 x 2.8 cm (2.7 x 3.8 x 1.1 in.)
Cable Length 76.2 cm (30 in.)
Weight 90 g (3.2 oz)
