Measure air pollution with accurate and reliable data
Sensor-based | Best Available Accuracy
You deserve good air quality.
Monitor up to 5 pollutants and particles simultaneously and get real-time data on the quality of the air you breathe.
Measure the impact of your activities and see if your decisions to ensure good air quality are really effective. Visualise and analyse all data in one place thanks to the Kunak Air Cloud web platform.
Get accurate data on a wide range of pollutants.
With the most versatile solution on the market, you can choose the pollutants to measure for each project. Thanks to its patented smart cartridge technology, you can replace them whenever you need to.
Quality guaranteed. All our sensors are factory calibrated and tested and include their calibration certificate.
Start improving the air quality in your community today.
Get the award-winning solution as the most accurate multi-pollutant sensor and start taking effective action to improve air quality. With the Kunak AIR Cloud web platform, you can easily visualise and analyse the data collected by the sensor network and make better decisions.
Our solution has been tested by the world’s leading air quality experts.
The widest range of pollutants
| Dimensions / Weight | 257 x 270 x 225 mm / <3.5 kg |
| Enclosure | PMMA, polycarbonate and stainless steel |
| Operating temp. / RH | -20 ºC to 60 ºC / 0 to 99 %RH |
| IP rating | IP65 |
| Battery | Lithium 2.9Ah or 26Ah |
| External supply | 7 – 12 Vdc. charger or solar panel |
| Autonomy | 24/7 with solar panel or charger |
| Power consumption | 0.08-1.2W (depending on configuration) |
| Communications | Cellular / Ethernet / Modbus RTU slave |
| GNSS | GPS adn GLONASS |
| Built-in sensors | Temp. / Humidity / Atmospheric pressure / Dew point |
| Connectors | #1: Power 7V to 12V or Ethernet #2: Modbus RTU slave #3: Sound meter, UV #4: WBGT, pyranometer, Modbus RTU master #5: Anemometer & Rain gauge |
| Avg. periods | From 10 seconds to a maximum of 24 hours |
| Sending periods | From 5 minutes to a maximum of 24 hours |
| SIM | Embedded eSIM and SIM holder |

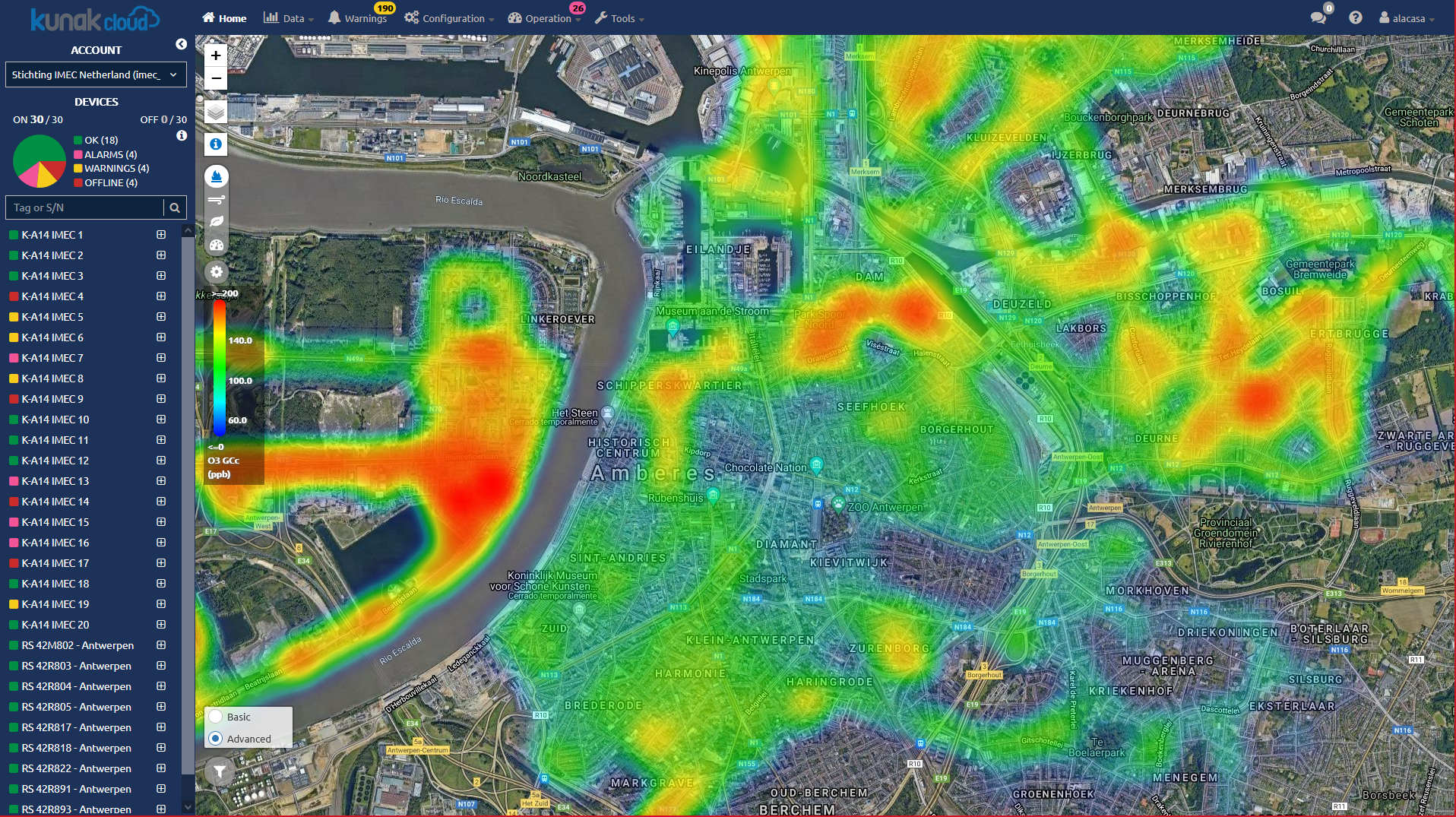

With our advanced air quality software Kunak AIR Cloud, you can easily analyse all the data collected by the Kunak AIR stations and generate reports for decision-making.
In addition, you can configure the deployed devices and have an alarm system that facilitates remote operation and maintenance of the network in an easy way.
Integrate the data collected by the network and stored by the server into public air quality platforms or third-party applications using the powerful API Rest.
If required, the API also allows you to integrate data from external sources to complement the information provided by the monitoring network and analyse all data on a single platform.
1. Easy & Fast installation
Set up in less than 10′ with visual diagnosis in a built-in display
2. Cartridges System
Replace and combine cartridges with a plug & play system
3. Proven Accuracy
Designed for type approval & certification
4. Easy Calibration
Adjust the baseline and span remotely
5. Air Quality Platform
Visualise, analyse and manage your data in the cloud
6. Multi Pollutant
Measure up to 5 gases and particulate matter at once
7. Fully Autonomous
Autonomous operation with its built-in battery and solar panel
8. Real-time Data
Access to your data and alarms in real-time
9. Additional Probes
Connect wind, rain, noise, and other sensors
 |
Sound level meterLow-cost wireless system for the monitoring of urban and industrial noise. |
 |
Mechanical anemometerIt includes both wind speed and wind direction sensors. |
 |
Ultrasonic anemometerIt includes both wind speed and wind direction sensors. It is an ultrasonic self-powered anemo- meter. |
 |
Rain gaugeIt is highly reliable, simple to maintain and simple to clean. It has prove good performance in all climates and conditions. |
 |
PyranometerThe pyranometer measures solar radiation with a high-quality blackened thermopile protected by a dome. |
 |
Wet Bulb Globe Thermometer (WBGT)The wet-bulb globe temperature (WBGT) is a measure of the heat stress in direct sun-light, which takes into account the temperature, humidity, wind speed (wind chill) and solar radiation |
 |
Radiation sensorThis UV-A sensors detect UV radiation from 300 to 400 nm and are calibrated in energy flux density units of watts per square meter. |
