For Solar Simulator Evaluation
350 to 1100nm

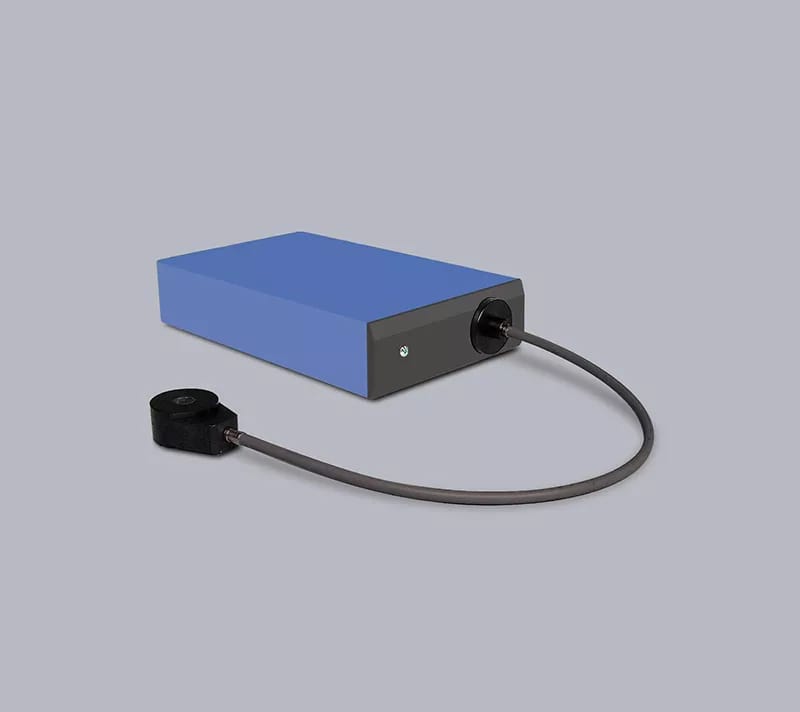

Compact and easy to operate, the LS-100 spectroradiometer is designed to measure the spectral irradiance of artificial light sources such as solar simulators used for solar cell research and evaluation.
The LS-100 Spectroradiometer is designed to measure the spectral irradiance of artificial light sources such as solar simulators used for solar cell research and evaluation. It can calculate spectral coincidence (JIS C 8912), integrated irradiance in a specified spectral range and the difference and ratio compared to standardised data.
The LS-100 is compact, easy to operate and calibrated against a NIST-traceable standard lamp. It can be controlled via PC with an RS232C cable, so that data can be automatically obtained using the operating software.
The measurement and analysis software also offers advanced functions to support data processing.
- Compact, lightweight and easy to use
- Calibrated against a NIST-traceable standard lamp
| Wavelength range | 350 - 1100 nm |
| Optical resolution FWHM | 10 nm |
| Wavelength accuracy | ± 3 nm |
| Directional response at 1000W/m² | - |
| Temperature response -10°C to 50°C | - |
| Temp. control | - |
| Operating temperature range | 0 to 40 °C |
| Exposure time | - |
| Dome material | - |
| Communication | RS232C |
| Power supply | DC12V, 0.8A |
| Dimensions mm | 50 (W) x 250 (D) x 150 (H) |
| Weight | 1.8 kg |
| Ingress protection IP | - |
| Power supply (Power Adapter) | - |
| Power consumption | 10 W |
| Power supply operating conditions | - |
| Power supply dimensions (mm) | - |
| Power supply weight | - |
| Program | Analysis software |
| OS | Microsoft Windows 7/8/9/10 |
| Functions | Display and analyze data |
| Cable length | - |
| Field of View FOV | 30 ° |
