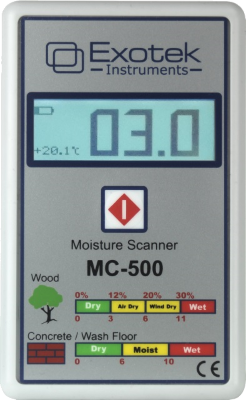

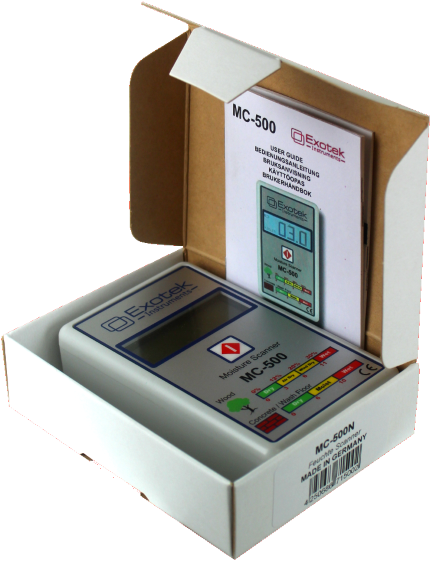

MC-500N MOISTURE METER FOR WOOD AND BUILDING MATERIAL
MC-500N MOISTURE SCANNER (NON DESTRUCTIVE)
for Wood and Building Materials with measuring depth up to 1.6 inch.
- The new MC-500N is a microprocessor-controlled hand-held instrument. Its reliable, easy to use and provides a faster and non-destructive evaluation of the compare moisture of wood and building materials.
- The MC-500N can be used in production, at home or on construction sites for the control and inspection for the detection of water damage.
- By measuring a few points, first determine the lowest value of a material, in order to find moist spots, when higher values are displayed.
- Reading the measured values in percent over the evaluation table on the front panel.
- All kinds of wood, chip board etc.
- Gypsum fibre boards, Ytong
- Bricks, Tiles, Clinker
- Eternit slab, Plaster
- Sandstone, Limestone
- Concrete, concrete slab
- Very wide material spectrum by comparison measurement
- Easy handling and operation
- Fast and accurate repetitive measurements
- Prevention of mold formation in the house and garden
- Temperature independent in the specified range
- Backlight of the display and thus
- Clear readout both at day and night
|
TECHNICAL SPECIFICATION |
|
|
MEASURING PRINCIPLE: |
Capacitive field, |
|
MEASURING RANGE: |
0- 59.8% |
|
MEASURING ACCURACY: |
± 1 % |
|
SCANNING DEPTH: |
0 - 40 mm |
|
AUTOMATIC SHUT DOWN: |
Yes |
|
BATTERY WARNING: |
Yes |
|
WORKING TEMPERATURE: |
-10°C/+60°C |
|
DISPLAY: |
LCD graphical with back light |
|
RESOLUTION: |
0,1% |
|
CASING: |
ABS Plastic |
|
SENSOR: |
PCB bottom sensor |
|
BATTERY: |
9V alkaline |
|
EAN code |
4250686715002 |
|
SIZE (L x W x H ): |
104 x 64 x 24 mm |
|
WEIGHT (INCL. BATTERIE): |
110 g |
|
WARRANTY: |
2 Years |
