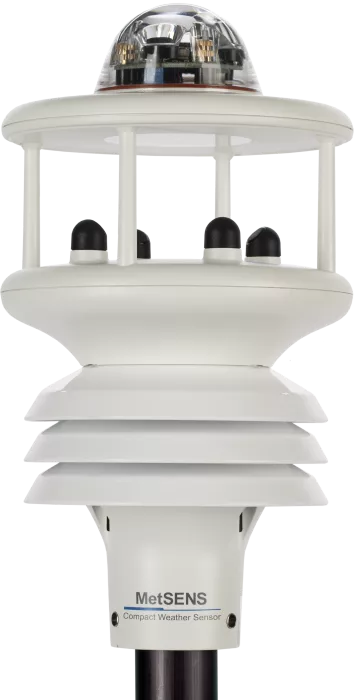

The MetSENS600 compact weather sensor measures wind speed and direction via an ultrasonic sensor, as well as air temperature, relative humidity, and barometric pressure, in a single, combined instrument mounted inside three double-louvered, naturally aspirated radiation shields with no moving parts. An optical precipitation sensing element senses fine amounts of water. An integrated electronic compass allows the MetSENS600 to provide accurate, relative wind direction measurements without being oriented in a particular way, making installation easier. WMO average wind speed and direction and gust, temperature, relative humidity, barometric pressure, absolute humidity, air density, wet bulb temperature, rainfall total, and rainfall intensity data are provided.
- Quality measurements
- Fast and simple to install
- Compact, integrated design
- Lightweight and robust
| Measurements Made | Air temperature, barometric pressure, precipitation, relative humidity, wind direction, and wind speed. |
| Sampling Rate | 1 Hz |
| Digital Communication Modes | Serial RS-232, RS-485, SDI-12, NMEA, Modbus, ASCII |
| IP Rating | 66 |
| Compliance |
CE, RoHS Where applicable, all individual parameters meet or exceed specifications of IEC 61724-1 (2017, 2021). |
| Operating Temperature Range | -40° to +70°C |
| Operating Voltage | 5 to 30 Vdc |
| Typical Current Drain @ 12 Vdc |
25 mA (continuous high mode) 0.7 mA (eco-power mode; 1 hour polled) |
| Weight | 0.8 kg (1.8 lb) |
Air Temperature
| Measurement Range | -40° to +70°C |
| Resolution | 0.1°C |
| Accuracy | ±0.3°C (@ 20°C) |
Relative Humidity
| Measurement Range | 0 to 100% |
| Resolution | 0.1 |
| Accuracy | ±2% @ 20°C (10 to 90% RH) |
Barometric Pressure
| Measurement Range | 300 to 1100 hPa |
| Resolution | 0.1 hPa |
| Accuracy | ±0.5 hPa (@ 25°C) |
Wind Speed
| Measurement Range | 0.01 to 60 m s-1 |
| Accuracy |
|
| Resolution | 0.01 m s-1 |
| Starting Threshold | 0.01 m s-1 |
Wind Direction
| Measurement Range | 0° to 359° |
| Accuracy | ±3° (up to 60 m s-1) |
| Resolution | 1° |
Precipitation
| Measurement Type | Optical |
| Measurement Range | 0 to > 300 mm h-1 |
| Precipitation Resolution | 0.08 mm |
| Repeatability | 3% |
Compass
| Measurement Range | 0 to 359° |
| Resolution | 1° |
| Units of Measure | Degrees |
| Accuracy | ±3° |
