ISO 9060:2018 Class B
Spectrally Flat
Designed for agricultural research, meteorological applications and small to medium-scale solar plants, the S-series MS-60S ISO 9060:2018 Class B Pyranometer is part of the most accurate, reliable and robust family of pyranometers in the world.
Built with the same industry-leading features as the Class A MS-80S, the MS-60S comes with EKO’s unique 4-channel smart interface for compatibility with 99% of data loggers, DAQ, and SCADA systems.
The MS-60S, as part of the S-Series family of sensors, also includes internal diagnostic sensors for remote visibility over internal temperature, humidity, tilt and roll angle; ensuring optimum performance with reduced maintenance costs.
Spectrally flat and with a new double-dome construction for lower offsets and cosine errors, the MS-60S also includes a 5-year warranty and advanced surge protection for a Class B sensor that combines the latest technology with the highest standards of quality, accuracy, and reliability.

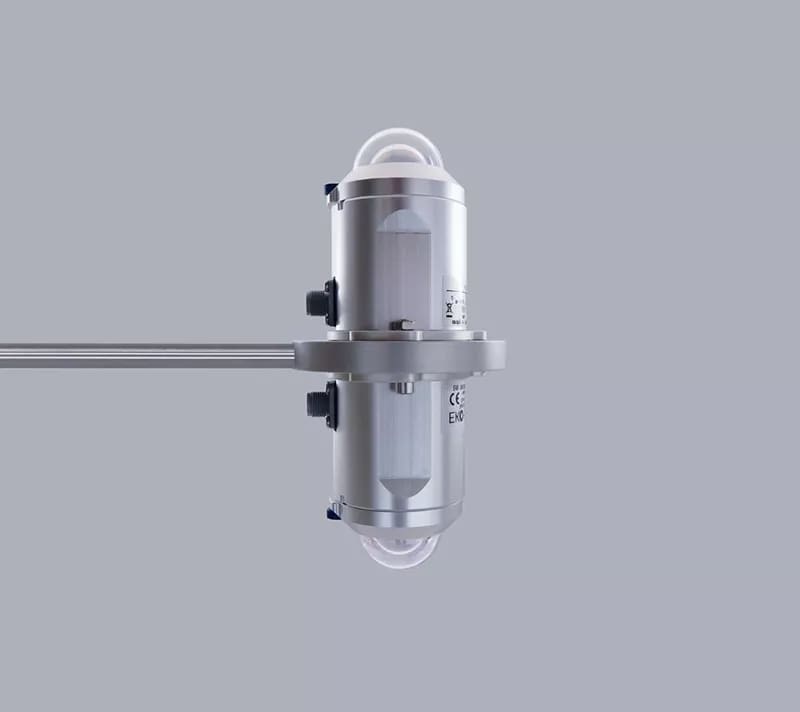

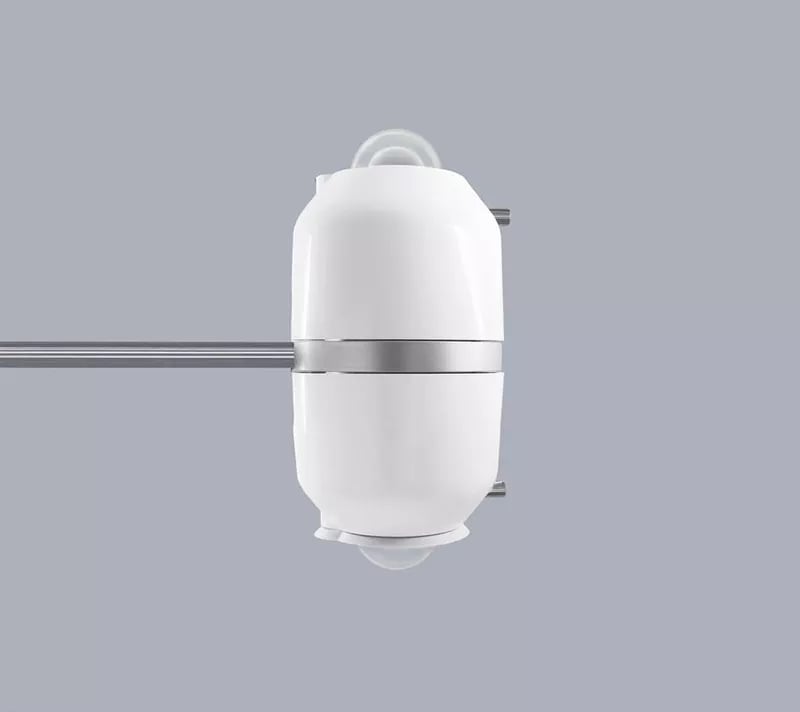

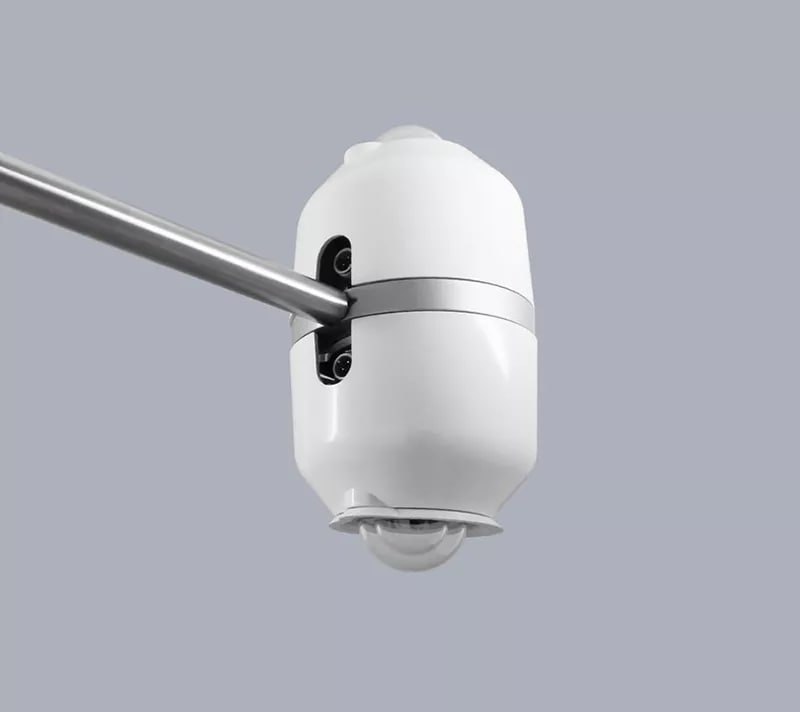

The MS-60S Albedometer consists of two MS-60S Pyranometers and the MS-Albedo Kit with a glare screen to measure albedo and total reflectance across various applications, including solar power plants with bi-facial PV modules.
MS-60S Pyranometers are manufactured with strict quality controls and performance evaluation. EKO provides calibration compliant with the international standards defined by ISO/IEC17025/9847 with a 2-year recommended re-calibration interval.
- 5 year warraty & recommended 2 year recalibration interval
- Smart 4-channel Analogue & Digital Interface
- Level A EMI/EMC electronics surge filter & protection
- Internal diagnostics for temperature, tilt, roll, and relative humidity
| ISO 9060:2018 | Class B |
| Response time 95% | <18 Sec |
| Zero offset A - Thermal Radiation (200W/m²) | ± 5W/m² |
| Zero offset B - Temperature Change (5K/hr) | ± 2W/m² |
| Zero offset C - Complete Zero off-set | ± 7W/m² |
| Non-stability (change/year) | < 1.5% |
| Non-linearity (100 to 1000W/m²) | ± 1% |
| Directional Response (at 1000W/m² | 0 to 80°) | ± 18W/m² |
| Spectral Error | ± 0.2% (Spectral selectivity ± 3%) |
| Temperature Response (-20°C to 50°C) | ± 2% |
| Tilt Response (0-90° | 1000W/m²) | ± 1% |
| Additional Signal Processing Error | < 1W/m² |
| Technical Features | |
|---|---|
| Wavelength Range (nm) | 285 to 3000 |
| Irradiance range (W/m²) | 0 to 2000 |
| Signal Output | MODBUS 485 RTU, SDI-12, 4-20mA, configurable 0-10mA / 0-1V* |
| Sensor Diagnostic | Relative Humidity ± 2% Temp. ± 0.1% / Tilt Angle ± 1° |
| Operating temperature | -40 to 80°C |
| Supply voltage | 5 to 30 VDC |
| Power Consumption | < 0.2 W |
| Ingress Protection | IP 67 |
| Standard Cable Length | 10m (Optional lengths 20m, 30m, 50m) |
