The TempVue™10 represents the next generation of air-temperature measurement sensors, meeting all relevant World Meteorological Organization (WMO) temperature recommendations.

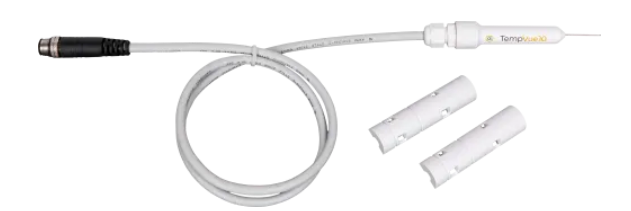

Designed with the customer in mind, the TempVue 10 easily interfaces with Campbell Scientific or third-party data loggers and fits a wide range of passive solar radiation shields. The sensor comes with a short, attached cable and terminates with an M12 connector, which provides exceptional convenience, environmental protection, and data integrity for use in a variety of applications.
The sensor consists of a wire-wrapped, four-wire Pt100 Resistance Temperature Detector (RTD) element encapsulated in an epoxy-filled, stainless-steel housing. The thin yet robust housing, combined with the Pt100 sensing element, provide the first true WMO-compliant sensor to meet the 20-second step response time with an ambient wind speed of only 1 m/s (3.3 ft/s).
The TempVue 10 has a maximum measurement uncertainty of only 0.3 Kelvin over the entire measurement range of -80° to +60°C, with only 0.1 Kelvin over the most common temperature range of -40° to +40°C.
- Meets WMO step change response time at 1 m/s (3.28 ft/s)
- Maintains high measurement stability over both time and temperature
- Incredibly easy to install or remove for calibration checks
- Highly durable, providing sensor element protection in even the harshest environmental conditions
- Able to be wired with a two-, three-, or four-wire Platinum Resistance Thermometer (PRT) configuration
- Allows for cable length adjustments without the need for calibration changes
- Includes calibration certificate
| Sensor Description | Platinum Resistance Thermometer (Pt100) |
| Measurement Uncertainty |
|
| Temperature Measurement Range | -80° to +60°C (-112° to +140°F) |
| Time Constant in Air | 20 s for a wind speed of 1 m/s (3.3 ft/s) |
| Resolution | Three decimal places (0.001°C) |
| Connector Type | M12 (to extend beyond 1 m [3 ft] standard cable length) |
| Probe Diameter | 1.9 cm (0.75 in.) maximum |
| Probe Length | 12.1 cm (4.75 in.) tip to end of cable gland |
| Extended Probe Length | 18.1 cm (7.125 in.) tip to end of extender piece |
| Total Length | 97.16 cm (38.25 in.) tip to end of connector |
| Weight | 70 g (0.15 lb) for probe with extender piece, including standard 1 m (3 ft) cable with M12 connector |
