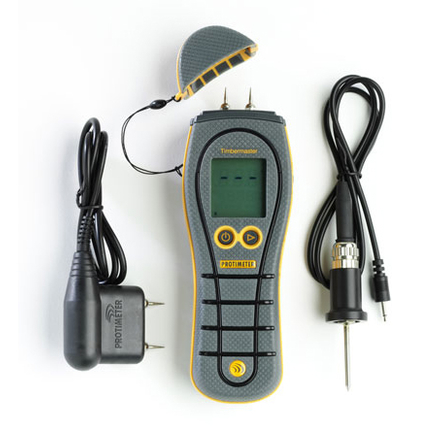

Timbermaster BLD5605
- Simple hand-held design
- Durable and rugged
- Built in wood calibration scales - 150 wood species
- Large LCD for ease of use in all conditions
- Hammer electrode for sub-surface measurements (optional)
- Automatic temperature correction with temperature sensor (optional)
| OPERATING CONDITIONS | Operating temperature range: 0°C to 50°C Humidity: 0 to 90% RH, non-condensing |
| MEASUREMENT SPECIFICATIONS: | |
| MOISTURE MEASUREMENT | Pin measurement range (% MC in wood) 7.9 to 99% (readings over 30% are relative) |
| PHYSICAL SPECIFICATIONS: | |
| POWER | V- Alkaline 550mAh, Battery low indication on LCD |
| SIZE | 19cm x 6.5cm x 3.5cm (7.5” x 2.5” x 1.4”) Gross Weight (without battery): ~228g |
| MAXIMUM NEEDLE DEPTH | For WME pins: 0.4” (10mm) |
| BUZZER | Accuracy: 8-30% WME +/-1% (+/-3% accuracy outside this range) |
| REGULATORY COMPLIANCE | CE, RoHS, ETL |
| PART NUMBERS | BLD5605 – Supplied with Heavy Duty moisture probe and temperature probe BLD5609 – Supplied with Heavy Duty moisture probe |
