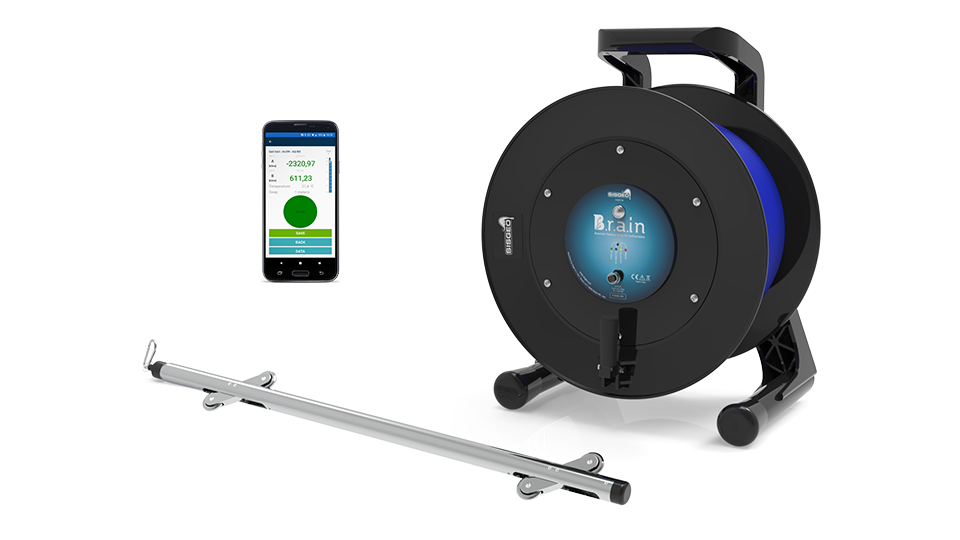

B.R.A.IN (Borehole Readout Array for INclinometers) system is mainly composed by the BRAIN APP compatible with Android and iOS mobile operative systems (device not supplied by SISGEO), digital inclinometer probe (vertical and/or horizontal), and bluetooth reel with control cable.<br />
The electronic readout is integrated in the reel and the BLE (Bluetooth Low Energy) wireless protocol permits a fast and safe communication with the management device with a very low batteries’ consumption.M
MAIN FEATURES
• Rugged low noise sensor
• High precision readings
• Available with vertical or horizontal digital MEMS probe
• Available with 500 and 1000mm probe gauge length
• Choice of heavy-duty or light-weight cable
• APP available in the APP store for both Android and iOS operative sistems
| VERTICAL INCLINOMETER SYSTEM PERFORMANCE | With 0S242DV3000 probe (500 mm gauge length) | With 0S242DV3010 probe (1000 mm gauge length) | With 0S242DV300F probe (2 ft gauge length) |
| Readout value | 20000 sin alpha (K*sin alpha, degree or mm/m on request) | 20000 sin alpha (K*sin alpha, degree or mm/m on request) | 20000 sin alpha (K*sin alpha, degree, in/ft on request) |
| Resolution | 0.011 mm / 500 mm | 0.023 mm / 1000 mm | 0.0005 in / 2 ft |
| Repeatability (precision) of a complete survey along a measuring line (1) | ± 1.5 mm / 30 m (reading step every 500 mm) | ± 2 mm / 30 m (reading step every 1000 mm) | ± 0.079 in / 100 ft (reading step every 2 ft) |
