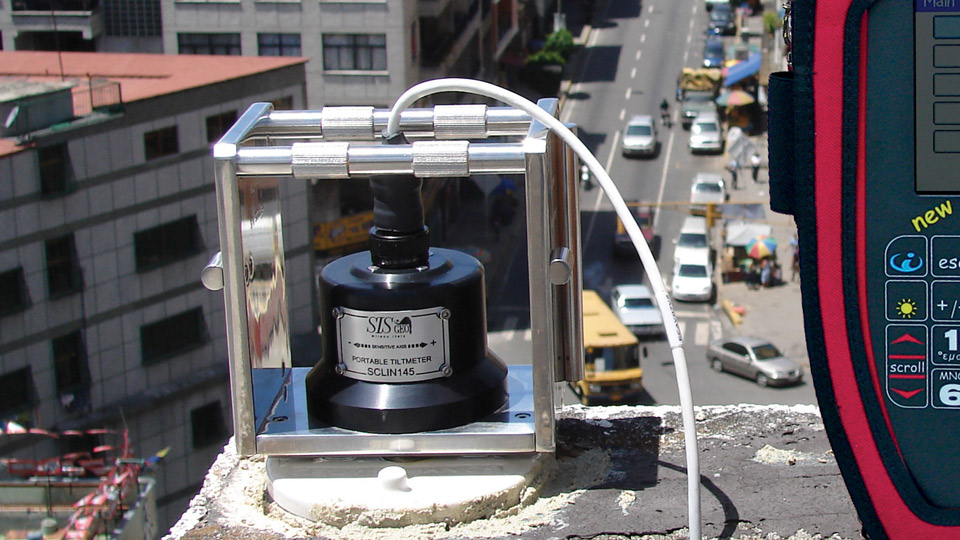

Tilli Portable Tiltmeter
- TILLI is a portable tiltmeter.
- It consists of a rugged stainless steel frame with aluminium sensor housing containing the MEMS technology inclinometer.
- Readings in two orthogonal directions can be obtained rotating the instrument of 90° only on the horizontal surface. Coniugated measurements (180 degree rotation ) eliminate instrumental and mounting offset.
- Automatic monitoring of vertical and horizontal surface may be carried out with digital tilt meter or analogue tilt meter connected to a data logger (i.e. mini OMNIAlog)
| Model | 0SCLIN150H0 TILTMETER |
| TILLI sensor | Uniaxial self-compensated MEMS |
| Measuring range | ±15° from the vertical |
| Sensor sensitivity | 0.0013° |
| Repeteability | < ± 0.003° |
| Accuracy | < 0.06% FS (with 3rd degree polynomial) |
| Thermal drift | ± 0.005% / °C |
| Temp. operating range | -30°C to +70°C |
| Material |
Stainless steel frame anodised aluminium sensor housing |
| Protection and overall dimensions (LxWxH) | IP67, 172x100x150 mm |
| Weight | 3 Kg |
| Carrying case |
Shock-resistant box dimension: 340x 290x150 mm |
