Crackmeters & Jointmeters
- Sisgeo Crackmeters & Jointmeters to monitor movement across surface cracks and joints in concrete structures or rock.
- The instrument assembly includes sensor housing and target, both parts are equipped with screw anchors.

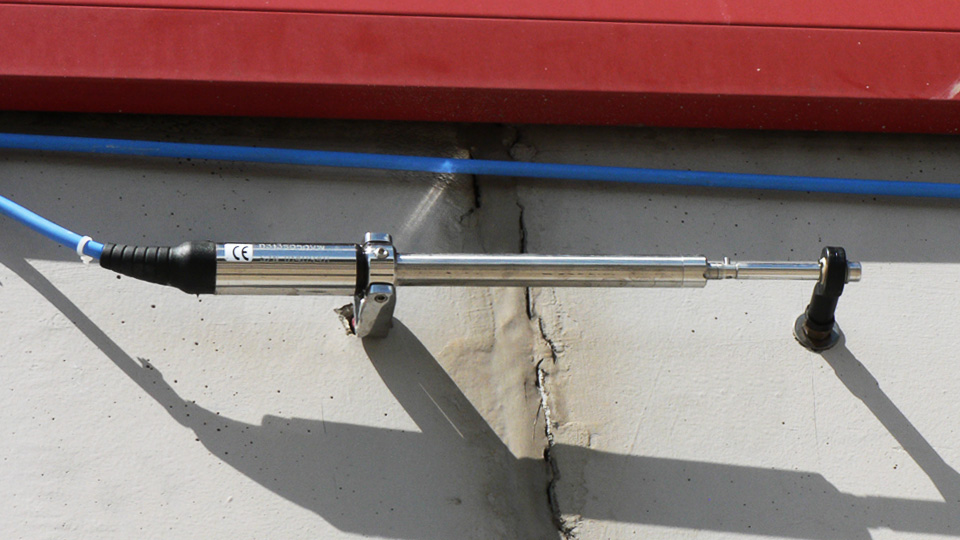

- Typically the anchors are bolted on the opposite sides of the joint (crack).
- The displacement transducer housed in the sensor body is positioned across the joint/crack enabling to measure the changes in the distance between the anchors.
- CRID is an integrated automatic system for fissure monitoring of building and monuments reducing the visual impact.
| MODEL | 0D313S010VW | 0D313S025VW | 0D313S050VW | 0D313S100VW | 0D313S150VW |
| Measurement principle | vibrating wire with built-in thermistor | vibrating wire with built-in thermistor | vibrating wire with built-in thermistor | vibrating wire with built-in thermistor | vibrating wire with built-in thermistor |
| Range | 0 - 10 mm | 0 - 25 mm | 0 - 50 mm | 0 - 100 mm | 0 - 150 mm |
| Accuracy Pol. MPE(1) | < ±0.50% FS | < ±0.50% FS | < ±0.30% FS | < ±0.30% FS | < ±0.30% FS |
| Output signal | frequency (displacement), resistance (thermistor) | frequency (displacement), resistance (thermistor) | frequency (displacement), resistance (thermistor) | frequency (displacement), resistance (thermistor) | frequency (displacement), resistance (thermistor) |
| Sensitivity (2) | see calibration report | see calibration report | see calibration report | see calibration report | see calibration report |
| Displacement resolution | 0.02% FS (with Sisgeo readout) | 0.02% FS (with Sisgeo readout) | 0.02% FS (with Sisgeo readout) | 0.02% FS (with Sisgeo readout) | 0.02% FS (with Sisgeo readout) |
| Typical frequency range (3) | 1500 - 2800 Hz | 1500 - 2800 Hz | 1500 - 2800 Hz | 1500 - 2800 Hz | 1500 - 2800 Hz |
| Operating temperature | -20°C +80°C | -20°C +80°C | -20°C +80°C | -20°C +80°C | -20°C +80°C |
| Anchors type | expanding shell anchor Ø 14 mm, 55 mm long | expanding shell anchor Ø 14 mm, 55 mm long | expanding shell anchor Ø 14 mm, 55 mm long | expanding shell anchor Ø 14 mm, 55 mm long | expanding shell anchor Ø 14 mm, 55 mm long |
| Length (compressed) | 285 mm | 293 mm | 360 mm | 460 mm | 621 mm |
| Length (extended) | 295 mm | 318 mm | 410 mm | 560 mm | 771 mm |
| Material | stainless steel | stainless steel | stainless steel | stainless steel | stainless steel |
| Weight | 0.5 kg | 0.5 kg | 0.6 kg | 0.7 kg | 0.8 kg |
| Protection | IP68 up to 100 kPa (tested in a static condition, upper value on request) | IP68 up to 100 kPa (tested in a static condition, upper value on request) | IP68 up to 100 kPa (tested in a static condition, upper value on request) | IP68 up to 100 kPa (tested in a static condition, upper value on request) | IP68 up to 100 kPa (tested in a static condition, upper value on request) |
| Signal cable | 0WE104K00ZH | 0WE104K00ZH | 0WE104K00ZH | 0WE104K00ZH | 0WE104K00ZH |
| Max. distance to datalogger (4) | 1000 m | 1000 m | 1000 m | 1000 m | 1000 m |
| MODEL | 0D313SA1000 | 0D313SA2500 | 0D313SA5000 | 0D313SAE100 | 0D313SAE150 | 0D313SAE200 |
| Measurement principle | linear potentiometer | linear potentiometer | linear potentiometer | linear potentiometer | linear potentiometer | |
| Range | 10 mm | 25 mm | 50 mm | 100 mm | 150mm | 200 mm |
| Accuracy Pol. MPE (1) | < ±0.50% FS | < ±0.30% FS | < ±0.20% FS | < ±0.20% FS | < ±0.15% FS | < ±0.15% FS |
| Output signal | 4-20 mA current loop (voltage on request) | 4-20 mA current loop (voltage on request) | 4-20 mA current loop (voltage on request) | 4-20 mA current loop (voltage on request) | 4-20 mA current loop (voltage on request) | 4-20 mA current loop (voltage on request) |
| Resolution | 0.01% FS (with Sisgeo readout) | 0.01% FS (with Sisgeo readout) | 0.01% FS (with Sisgeo readout) | 0.01% FS (with Sisgeo readout) | 0.01% FS (with Sisgeo readout) | 0.01% FS (with Sisgeo readout) |
| Power supply | 12 - 24 V DC | 12 - 24 V DC | 12 - 24 V DC | 12 - 24 V DC | 12 - 24 V DC | 12 - 24 V DC |
| Sensitivity (2) | see calibration report | see calibration report | see calibration report | see calibration report | see calibration report | see calibration report |
| Operating temp. | -20°C +60°C | -20°C +60°C | -20°C +60°C | -20°C +60°C | -20°C +60°C | -20°C +60°C |
| Anchors type | expanding shell anchor Ø 14 mm, 55 mm long | expanding shell anchor Ø 14 mm, 55 mm long | expanding shell anchor Ø 14 mm, 55 mm long | expanding shell anchor Ø 14 mm, 55 mm long | expanding shell anchor Ø 14 mm, 55 mm long | expanding shell anchor Ø 14 mm, 55 mm long |
| Length (compressed) | 334 mm | 334 mm | 384 mm | 384 mm | 584 mm | 684 mm |
| Length (extended) | 344 mm | 359 mm | 434 mm | 584 mm | 734 mm | 884 mm |
| Material | stainless steel | stainless steel | stainless steel | stainless steel | stainless steel | stainless steel |
| Weight | 0.5 kg | 0.5 kg | 0.6 kg | 0.7 kg | 0.9 kg | |
| Protection | IP68 up to 100 kPa (tested in a static condition, upper value on request) | IP68 up to 100 kPa (tested in a static condition, upper value on request) | IP68 up to 100 kPa (tested in a static condition, upper value on request) | IP68 up to 100 kPa (tested in a static condition, upper value on request) | IP68 up to 100 kPa (tested in a static condition, upper value on request) | IP68 up to 100 kPa (tested in a static condition, upper value on request) |
| Signal cable | 0WE102KEOZH | 0WE102KEOZH | 0WE102KEOZH | 0WE102KEOZH | 0WE102KEOZH | 0WE102KEOZH |
| Max. distance to datalogger (3) | 1000 m | 1000 m | 1000 m | 1000 m | 1000 m | 1000 m |
