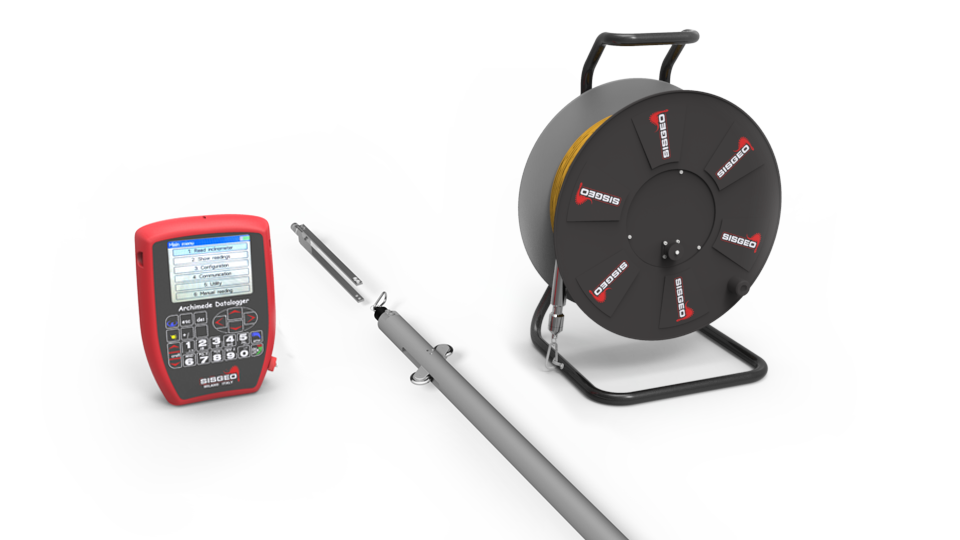

T-REX Incremental Extensometer
- Sisgeo T-REX Incremental Extensometer for incremental measurements along the axis of inclinometer casing equipped with targets.
- T-REX probe is equipped with two very accurate linear transducer.
- Operating cable, placement rods, portable readout and data management software are provided.
- Data are collected by Archimede Datalogger that could be equipped with a special battery pack enables to enlarge working time.
- Through the USB port the measurements can easily transferred to a PC for data management.
- T-REX Analyser Software allows to compute the displacement measurements line-wise carried out every meter.
| Bluetooth module | band: 2.4 GHz ISM Band (2402-2480 MHz) - power: 4dBm Max |
| Communication with device | BLE (Bluetooth Low Energy) 4.2 |
| Operating Temperature | -40 to 80°C (batteries -20 to 65°C) |
| Communication with probe | RS485 Modbus RTU Protocol (2) |
| IP class and material | IP65, unbreakable sysnthetic rubber |
| Environmental condition certification | certified for extended environmental conditions: altitude above 2000m |
| Power supply | 4 x 1.2 V - 5 Ah - Ni-MH rechargeable batteries |
| Operating time with NiMH batteries(4) | ≈ 6 h with T-REX probe always on (APP in reading mode) |
| Led | Different colors for local notifications |
| Directive compliance | 2014/53/EU (RED) |
| MODEL | 0S2RC6000B0 | 0S2RD6000B0 |
| Cable lengths | 30,60,100,150, 200, 250 m | 30, 60, 100, 150, 200 m |
| Conductors | 6x0.50 mm2 (AWG 21) | 2x0.50mm2 (AWG 21)+ 2x0.24mm2 (AWG 24) |
| Depth tactile marks | copper, every 500 mm | aluminum, every 500 mm |
| Max strength | 370 kg | 150 kg |
| Outer jacket | yellow, polyurethane | blue, polyurethane |
| Cable diameter | 10.4 mm | 6.5 mm |
| Weight (cable+marks) | 0.150 kg/m | 0.054 kg/m |
| Operating temp. range | -30 to 80 °C | -30 to 80 °C |
| Total weight with 60 m cable | 14 kg with B.R.A.IN reel | 6 kg with B.R.A.IN reel |
| MODELS | 0REX45100D0 |
| Applications | vertical, horizontal, sub-horizontal |
| Measurement principle | high performace displacement transducers |
| Measuring range | ±40 mm |
| Signal output and protocol | RS485 Modbus RTU(1) |
| A/D converter | sigma-delta 32 bit, 38-KSPS |
| Probe resolution | 0.0001 mm (with B.R.A.IN APP) |
| Accuracy: Pol. MPE (2) | ±0.2% FS (±0.16 mm/m) |
| Repeatability | ±0.01 mm/m |
| Stability @24 hours (3) | ±0.025 mm/m |
| Temp. operating range | –30°C to +75°C |
| Power supply | from 8 to 28 V |
| Max consumption |
125 mA@24Vdc 260 mA@12Vdc |
| Material | aluminum body and steel parts |
| Body diameter | 40 mm |
| Measuring base length | 1000 mm |
| Wheels carriage | pair of wheels (Ø 32 mm) mounted on long-life sealed ball bearings |
| IP class | IP68 up to 2.0 MPa |
| Weight | 5.4 kg (probe only) |
| compliant directive | 2014/30/EU (EMC) |
