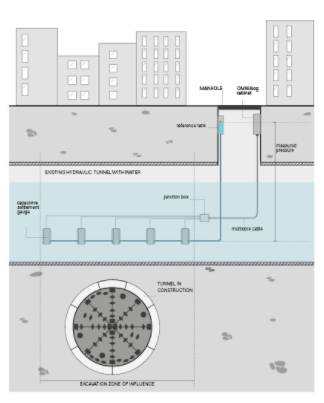

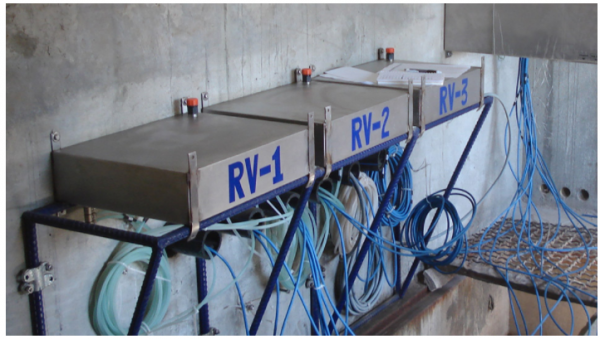

The multipoint settlement systems consist of a number of hydraulic settlement gauge connected by tubing to a reference tank located on higher, stable ground.

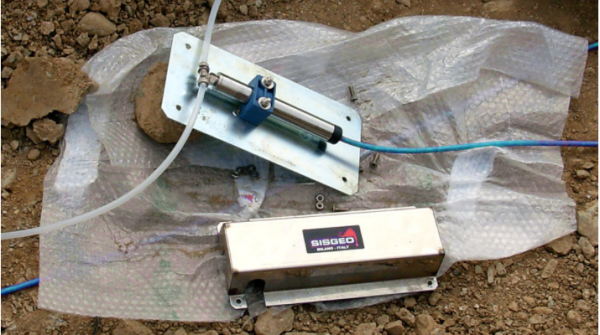

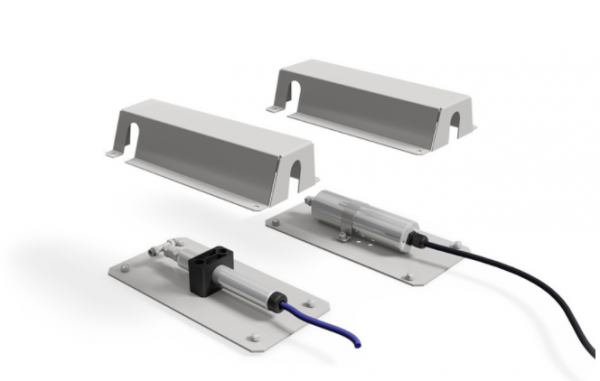

The settlement gauge is a pressure transducer with vibrating wire or capacitive technology, mounted on a plate with a protective cover.
Depending on the requirement, the settlement system can be installed with just a single gauge or with multiple gauges.
The typical application for the multipoint settlement systems is monitoring settlement in embankments, tunnels or other civil structures.
The multipoint settlement systems consist of a number of hydraulic settlement gauge connected by tubing to a reference tank located on higher, stable ground. The settlement gauge is a pressure transducer with vibrating wire or capacitive technology, mounted on a plate with a protective cover. Depending on the requirement, the settlement system can be installed with just a single gauge or with multiple gauges. The typical application for the multipoint settlement systems is monitoring settlement in embankments, tunnels or other civil structures.
• Automatic barometric compensation (vented pressure gauges)
• Suitable for long term monitoring (vibrating wire gauges)
• Fieldstat software available for enhanced data analysis
• Settlement monitoring in rockfill or eathfill dams
• Vertical displacement in tunnels
• Settlement control under railway or road embankment
