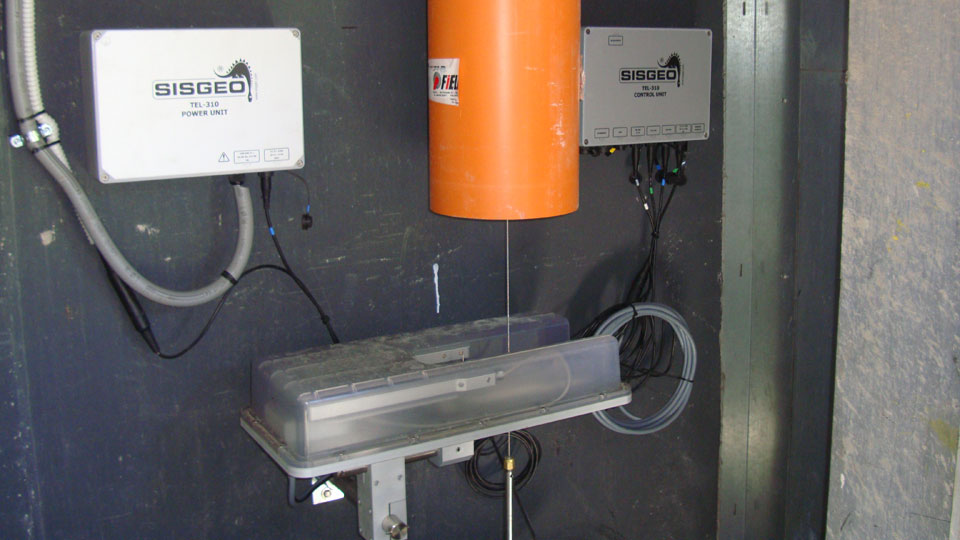

TEL-310S Telecoordinometer
- Sisgeo Pendulums System And Tel-310s Telependulums designed for automatic readings of the coordinates of the pendulum plumb lines (direct or inverted).
- Characterized by high resolution and the possibility of measuring many steel wire simultaneously.
- Auto-diagnostic functions for measurements validation through a built-in high performance software.
- Either local readings by portable PC or remote operation via RS-485 serial interface are possible.
- Also implemented with 4-20 mA output for ADK-100 network application.
- The new version of TEL-310S Telecoordinometer (3rd generation) offer: wide measuring range: 60x145mm; waterproof components IP68 until 50kPa (5m water head); flexible structures for easy maintenance; remote auto-diagnostic through log file; and high level built-in software for statistical data elaboration and validation.
| Model | 0TEL3103GS0 |
| Measuring priciple | contactless |
| Measurement area |
X-axis: 0-150 mm (145 mm real) Y-axis: 0-60 mm |
| Resolution | 0.005 mm |
| Repeatability+hysteresis |
X-axis: ±0.007 mm / ±0.005 mA Y-axis: ±0.012 mm / ±0.007 mA |
| Accuracy Pol. MPE (1) |
X-axis: ±0.010 mA Y-axis: ±0.015 mA |
| Power supply | 85-230V AC, 50-60Hz |
|
Output: - Local readings - Remote monitoring |
Ethernet, USB 2.0, RS485, 4-20mA (to OMNIAlog) |
| Sensitivity (2) | see calibration report |
| Memory | 2 GB |
| Temp. operating range | -10°C +60°C |
| Detectable wire (diameter) | minimum 1 mm |
| Protection | IP68 until 50 kPa |
