Wire Deformeters
Wire deformometers are designed to monitor changes in the distance between two anchor points. Typical applications include monitoring cracks or displacements in civil structures.
Electrical wire deformeters are analog devices with either vibrating wire or potentiometer transducers. A stainless steel wire connects the transducer to the opposing anchor.
The USB wire deformeter is a digital device that records readings from a rotary potentiometer. A steel wire connects the device to the opposing anchor.

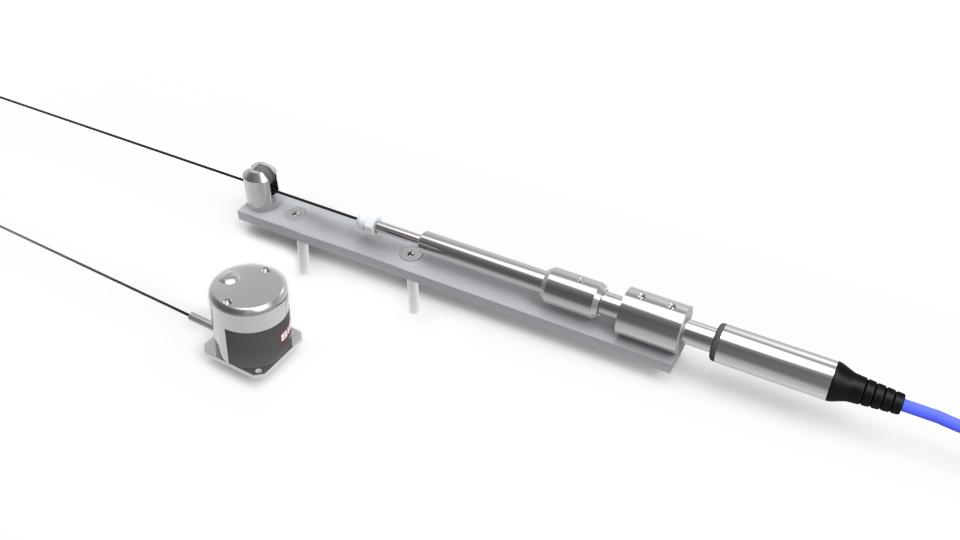

Sisgeo Wire Deformometers to monitor the changes in the distance between two anchor points.
- Typical applications include measurements of small cracks, convergence monitoring in tunnel and structural deformations.
- The USB?wire deformometer consist of an aluminium logger and transducer box with a tensioned steel wire having 80mm stroke.
- Electrical deformometer, available with both potentiometer or vibrating wire transducer, is composed by a stainless steel body mounted on fixing plate.
- A kevlar rope realizes the connection between the transducer and the target.
