01.12.SA Hand-Operated Bailer Boring Auger Set for Heterogeneous Soils
01.12.SA Hand-Operated Bailer Boring Auger Set for Heterogeneous Soils

The standard bailer boring auger set is suitable for augering to a depth of about 7 meters. The set is very suitable for in addition to exploratory soil augering and sampling inserting monitoring well pipes for groundwater level measurements and for sampling. This compact set can be carried easily in a station car and is easy to use in the field. It can be used by one person.

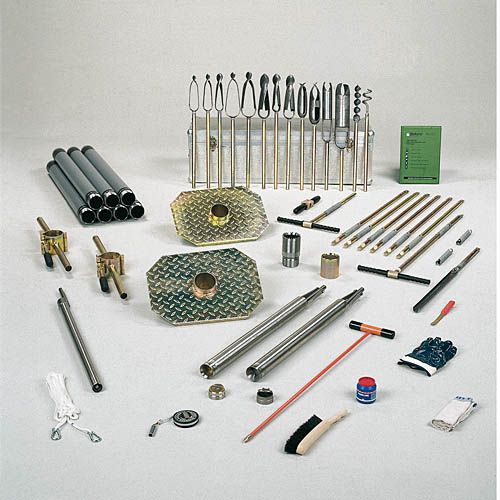

 The set contents include: various types of soil augers to reach the groundwater level, augers for the extraction of less-disturbed soil samples, extension rods, synthetic casing tubes with steel screw thread sockets, tube clamps with adjustable quick fastener for driving in and withdrawing the casing tubes, bailers with steel and synthetic valves, casing tube platforms for more ergonomic working, spare parts and various accessories. The set is delivered in two aluminium transport cases

  • Eijkelkamp 01.12.SA Hand-Operated Bailer Boring Auger Set for Heterogeneous Soils suitable for augering to a depth of about 7 m.
  • Suitable for in addition to exploratory soil augering and sampling inserting monitoring well pipes for groundwater level measurements and for sampling.
  • The set contents include: various types of soil augers to reach the groundwater level, augers for the extraction of less-disturbed soil samples, extension rods,   v   synthetic casing tubes with steel screw thread sockets, tube clamps with adjustable quick fastener for driving in and withdrawing the casing tubes, bailers with steel and synthetic valves, casing tube platforms for more ergonomic working, spare parts and various accessories.
  • The bailer is a stainless steel tube with stainless steel or synthetic valve on the lower part. By moving the bailer rapidly up and down loose material will collect in the bailer.
  • In principle, this takes place below the tube where space is available. This allows the casing tubes to be pushed deeper into the ground.
  • When turning in the casing tubes, the casing shoe with the slotted notches protects the lower tube and simplifies the turning in of the casing tubes.
  •  In order to protect the top tube, a steel casing head is provided.
  •  For the protection of the screw thread during transport special thread protectors are supplied.
  •  The casing tube platforms are used in combination with the tube clamp. Bailing and driving in the casing tubes can be done in a more ergonomic way.

Benefits Hand-operated bailer boring set

  • Perfect kit for all not too stony soils
  • Works above and below water level
  • For good installation as well as samplings
  • Extremely durable, sturdy lightweight casings
  • Bailing-platform allows pushing casings down with bodyweight
  • Special bailers allow bailing stony sand layers
  • Non-contaminating components
  • The best way to install sampling wells at shallow depths

Remarks

  • Can be extended with more rods and casings
  • Can be combined with longer piston sampler
Connection bayonet
Drilling diameter 7 + 10 cm
Maximum sample depth 7 m
Product material iron, PVC, other material
Sample length 10 cm
Sample specification disturbed
Sampler position vertical
Package size 120 x 80 x 50 cm
Weight 150 kg
Applications Soil profile description and classification, Soil sampling above the groundwater table, Soil sampling below the groundwater table, Environmental soil research, Monitoring well installation, Geohydrological research
