04.02 Bi-Partite Gouge Augers
04.02 Bi-Partite Gouge Augers

Hand-operated equipment can be applied for soil research up to a depth of 5 to 10 meter. The gouge augers have a mutual quality, they are all fitted with an almost half-cylindrical operational part with parallel cutting edges running vertically, justifying the name gouge auger. This operational part may vary in length as well as in diameter. The most suitable length depends on the penetration resistance, the substance of the soil and the required boring depth. The longer the operational part the more vulnerable the auger is to torsion.

The selection of the most suitable diameter depends on the composition and the structure of the soil and on the purpose of the research. In general, a smaller diameter is applied in soils with a fine and/or dense structure, by comparison to soils with a loose structure (for instance young swampy peat). The bi-partite gouge augers can be extended by coupling an extension rod. In this way, samplings can be carried out in a very short time and greater depths can be reached.

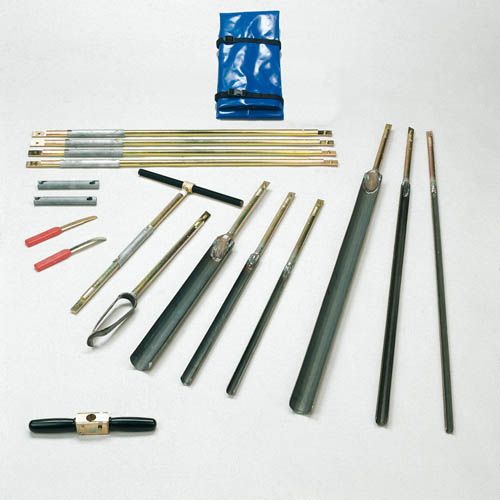

The bi-partite gouge auger set SA is a standard set for sampling in more or less soft soils to a depth of 5 metres. The set has a bayonet connection and contains gouge augers with various lengths and diameters, and Edelman auger, extension accessories, push-/pull handle and a strong carrying bag for transport in the field

  • Can be extended by coupling an extension rod.
  • Samplings can be carried out in a very short time and at greater depths.
  • Eijkelkamp 04.02 Bi-Partite Gouge Augers available in three standards sets:
  • One set with a bayonet connection (SA) and gouge augers with various lengths and diameters, extension accessories and a strong carrying bag for transport in the field.
  • A greater profile survey because of the relatively longer operational part.
  • A greater soil depth for each stroke results in the swifter reaching of greater depths.
  • The samples obtained are virtually undisturbed.

Benefits bi-partite gouge auger set SA

  • Gives beautiful profiles in soft soils
  • Three gouge diameters 60-30-20
  • Start large and finish narrow to reduce friction
  • Very sturdy high tensile strength steel
  • Non contaminating bare steel, no lacquers no zinc plating
  • One man operated bayonet connection
  • Includes auger to drill through layers that are too hard for gouging

Remarks

  • Not for hammering
  • Dry before (long time) storing

Applications

Because of the minimal disturbance of the sample, the gouge auger is frequently applied in profile research for:

  •     Soil mapping.
  •     Soil suitability reviews.
  •     Educational purposes.
  •     Root research.
  •     Soil sampling for fertilization research.
  •     Clay distribution research.
  •     Paleontological research.
Connection bayonet
Maximum sample depth 5 m
Product material iron, other material
Sample diameter 16 / 25 / 56 mm
Sample length 50 / 100 cm
Sample specification semi-disturbed
Sample volume 100 - 1770 ml
Package size 117 x 27 x 23 cm
Weight 23 kg
Applications Soil sampling above the groundwater table, Soil sampling below the groundwater table, Archaeological soil research, Environmental soil research
