06.01.SA Hand Penetrometer
06.01.SA Hand Penetrometer
Eijkelkamp
Soil , In-Situ Soil Physical Research

Hand penetrometer Eijkelkamp, minimal design, for measurements to a depth of 1 m

  • Geotechnical soil research
  • Trafficability or load-bearing capacity research

  • Eijkelkamp 06.01.SA Hand Penetrometer can be used for probing to a depth of between 1 and 3 meters.

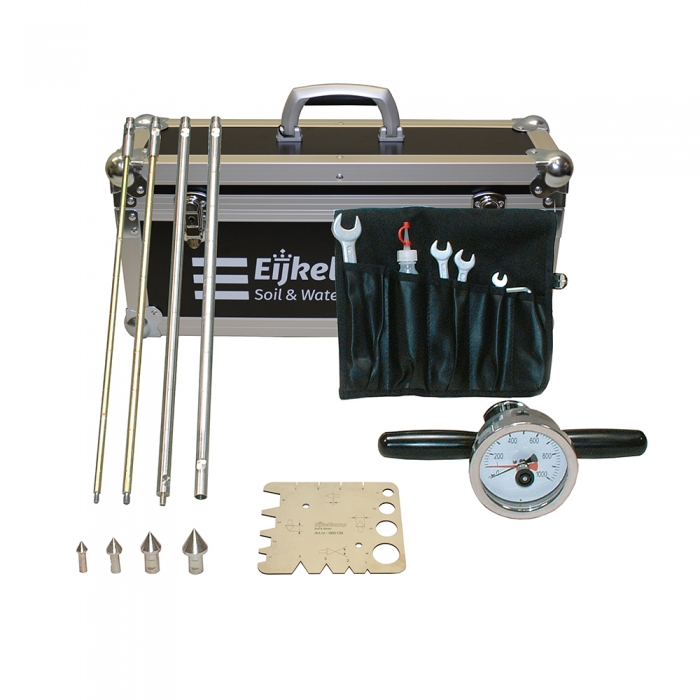

  • Contain various cones, probing- and extension rods, a measuring instrument with a pressure gauge, toolset, a cone check, a calibration certificate and an instruction manual.
  • The measuring range of the pressure gauge is 10000 kN/m2 (=10000 kPa).
  • The scale range runs from 0 to 1.0 kPa. The accuracy is +/– 8% in the advised measuring range.
  • The sets have been packed in compact aluminium carrying case.
  • A hand-operated auger is included in the set that reaches to a depth of 3 meters, which will enable you to execute research of a soil profile as well or to penetrate a tougher layer in the soil. The auger is also applied to drill-out the probing hole to avoid adhesion between the probing rods and the shaft wall.
  • Basically the penetrometer consists of a measuring instrument, a probing rod and a cone. The device is pushed perpendicular into the soil by applying equal pressure on both grips. Jerking pushes yields values which are too high and which do not represent the soil.
  • The resistance measured by the cone can be read from the pressure gauge as indicated by the black pointer. The maximum resistance recorded during the measurement is indicated by the red dragging pointer.
  • The resistance to penetration (kPa/cm2) of the soil can now be determined by dividing the reading value by the surface of the cone.
  • The value of the resistance to penetration to be expected determines the surface of the cone to be used.
  • For high values, the small cone is used and for low values, the larger cones are applied. The larger the cone the more accurate the value of the resistance to penetration can be determined.
Angle of cone 60 °
Cone surface range 1, 2, 3.3, 5 cm²
Connection screwthread
Maximum force 10000 @ 1 cm² kPa
Maximum measuring depth 1 m
Measured parameters penetration resistance
Measuring accuracy < +/- 8%
Measuring range 0...10000 kPa
Product material stainless steel, iron, other material
Reading accuracy 1%
Registration type manual
Package size 59 x 19 x 28 cm
Weight 11 kg
Application Geotechnical soil research, Trafficability or load-bearing capacity research
