09.04 Double Ring Infiltrometer
09.04 Double Ring Infiltrometer
Soil , Soil Infiltration

Double ring infiltrometer, the standard set for synchronic measuring in threefold. Measurements according to ASTM D3385-03. Standard test method and DIN 19682 page 7

​​​​​​​

  • Eijkelkamp 09.04 Double Ring Infiltrometer used to determine the rate of infiltration of water into the soil.
  • The rate of infiltration is determined as the amount of water per surface area and time unit, that penetrates the soil. This rate can be calculated on the basis of the measuring results and the Law of Darcy.

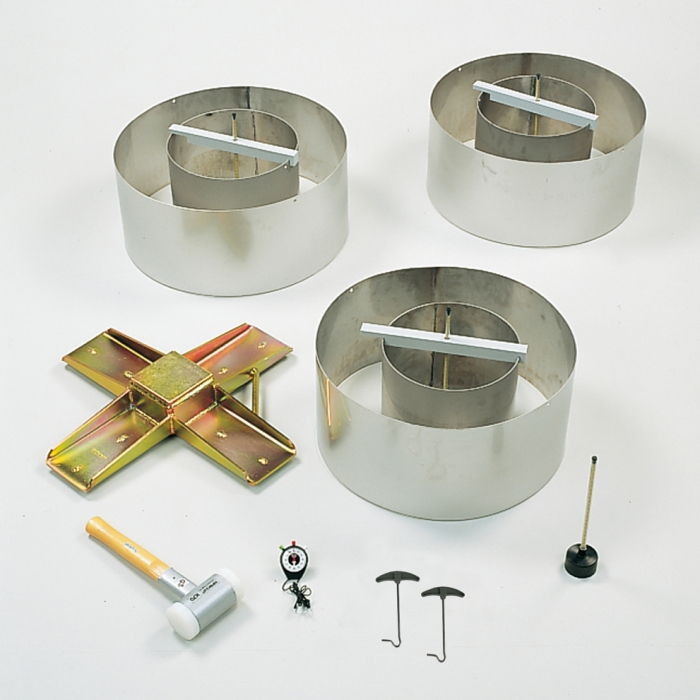

  • The standard set consists of a number of sets of stainless steel rings with different diameters (for reasons of transportation).
  • Several measurements can be executed simultaneously, yielding a very reliable and accurate mean result.
  • As vertically infiltrated water runs away to the sides, the outer ring of the infiltrometer serves as a separation.
  • The measurements exclusively take place in the inner ring through which the water runs virtually vertical.
  • It is important to take into account several factors that may influence the measurement: the surface vegetation, the extent to which the soil has been compacted, the soil moisture content and the soil layers (strata).
  • The best measuring results are obtained at ‘field capacity’ of the soil.
  • Used for determining the rate of infiltration and capacity for irrigation and drainage projects, studying drainage, determining the intensity of artificial precipitation and the effect of treatment of the soil.
Maximum measuring depth 0 cm
Measured parameters infiltration ratio
Reading accuracy 1 mm
Registration type manual
Package size 65 x 65 x 50 cm
Weight 56 kg
Applications Infiltration research, Soil permeability research, Irrigation research
