The 1600F1, 5 Bar Pressure Plate Extractor:

  • Allows analysis of the water-holding characteristics of soil samples in the 0 to 5 bar pressure range.
  • The pressure vessel is 9" (22 cm) deep and has an inside diameter of 12" (30 cm).
  • Up to 4 5-Bar ceramic plates can be used, allowing 48 each 2-1/4" (5.7 cm) diameter samples to be analyzed simultaneously.

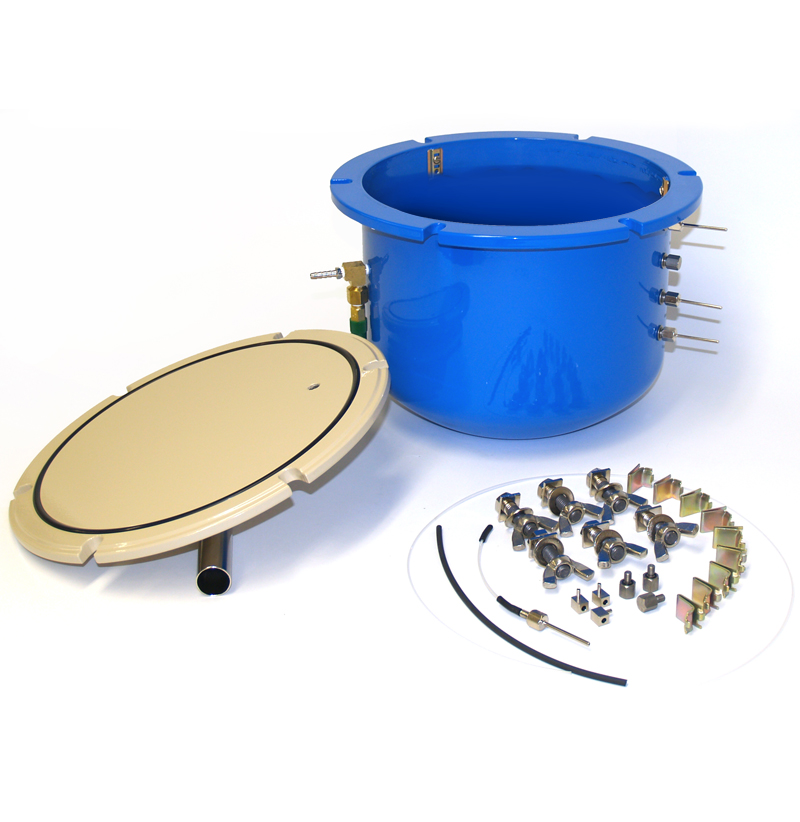

  • The extractor includes pressure vessel and lid, clamping bolts, O-ring seals, and outflow tube assemblies.
  • Pressure plates are sold separately.
  • Soil Water Retention
  • Soil Physics
  • Mining
Pressure Range 0-5 bars;
Pressure Vessel inner diameter 12", depth: 9"
Number of Samples approximately 48, 2.25" diameter samples.
Weight 41 lbs.
Dimensions 18X18X16 inches.
